Laser Receiver with Digital Readout
ACCEPTOR MAXX with mm display
Rugged laser receiver with a very large detector field

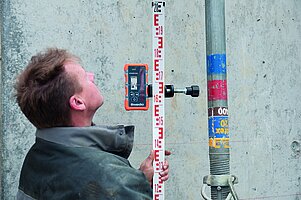

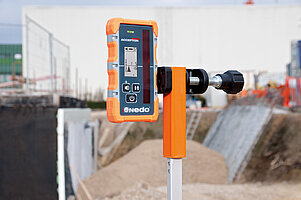

Nedo ACCEPTOR MAXX is a new robust laser receiver with a digital readout of elevation, combined with an extra-large detector field. The robust housing and virtually indestructible Nedo heavy-duty rod clamp make the new ACCEPTOR MAXX perfect for use under harsh conditions.

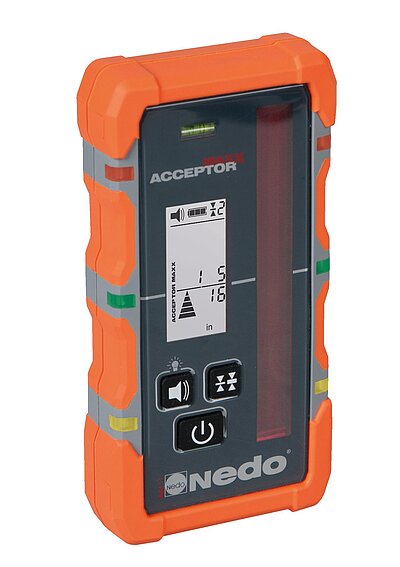

Large illuminated digital LC displays on the front and back show the elevation directly in inches, feet, inches & fractions and mm. No need to go “on-grade”. In addition, arrows in the LC display and bright LEDs show the position of the laser receiver in relation to the laser plane. Thanks to the clever design of ACCEPTOR MAXX, the LEDs are visible from both, the front and the side.
An acoustic signal can be set to indicate the position of the laser receiver.
Features:
- Robust laser receiver for all rotating lasers with a red laser beam
- Large illuminated displays on the front and back
- Digital readout of elevation in inches, feet, inches & fractions and mm
- Size of directional arrows is proportional to elevation
- Bright LED display, visible from the front and the side
- 4 on-grade accuracy settings
- Energy-saving mode, display illumination can be switched off
- Battery status visible on display
- Switchable acoustic signal
- Bubble for easy alignment
- Automatic shut-off after 15 min.

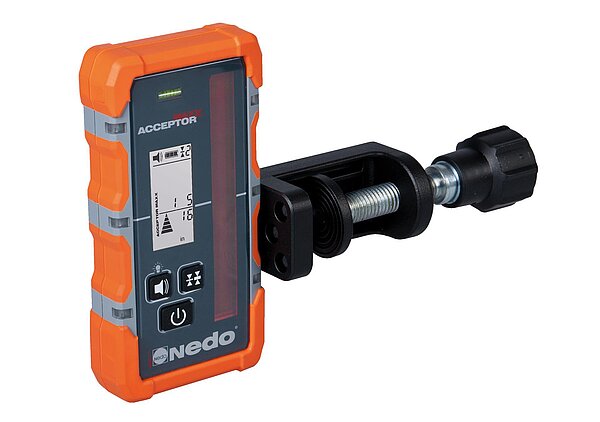

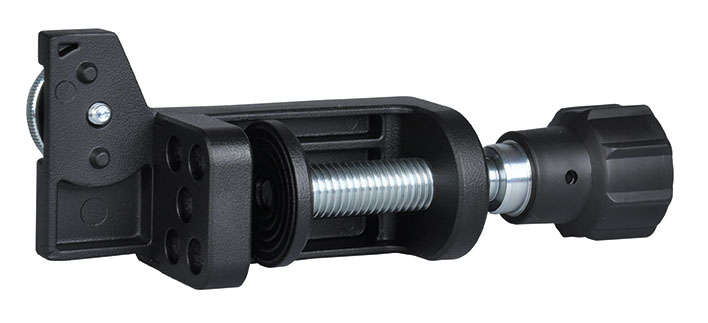

- Nedo heavy-duty rod clamp and batteries supplied as standard
MAXXimum detector field
• 5” / 120 mm length
MAXXimum performance
• Double LED display in front and side
• Illuminated displays
MAXXimum working range
• Working diameter 3,000 ft /900 m
MAXXimum precision
• Digital elevation readout up to ± 2” / 52 mm
Nedo ACCEPTOR MAXX
| Ref.-No. | 430339-185 |
| Accuracy | switchable, ±1 mm (~1/16”), ±2 mm (~1/8”), ±4 mm (~3/16”) and ±8 mm (~5/16”) |
| Working range | Ø 2950 (depends on laser) |
| Length detector field | 5“ / 120 mm |
| Reception angle | ± 45° |
| Protection class | IP 67 |
| Operating temperature | -4 F to +140 F (-20° C to +60° C) |
| Power supply | 2 x 1.5 V type mignon (AA) |
| Operation duration | approx. 60 h |
