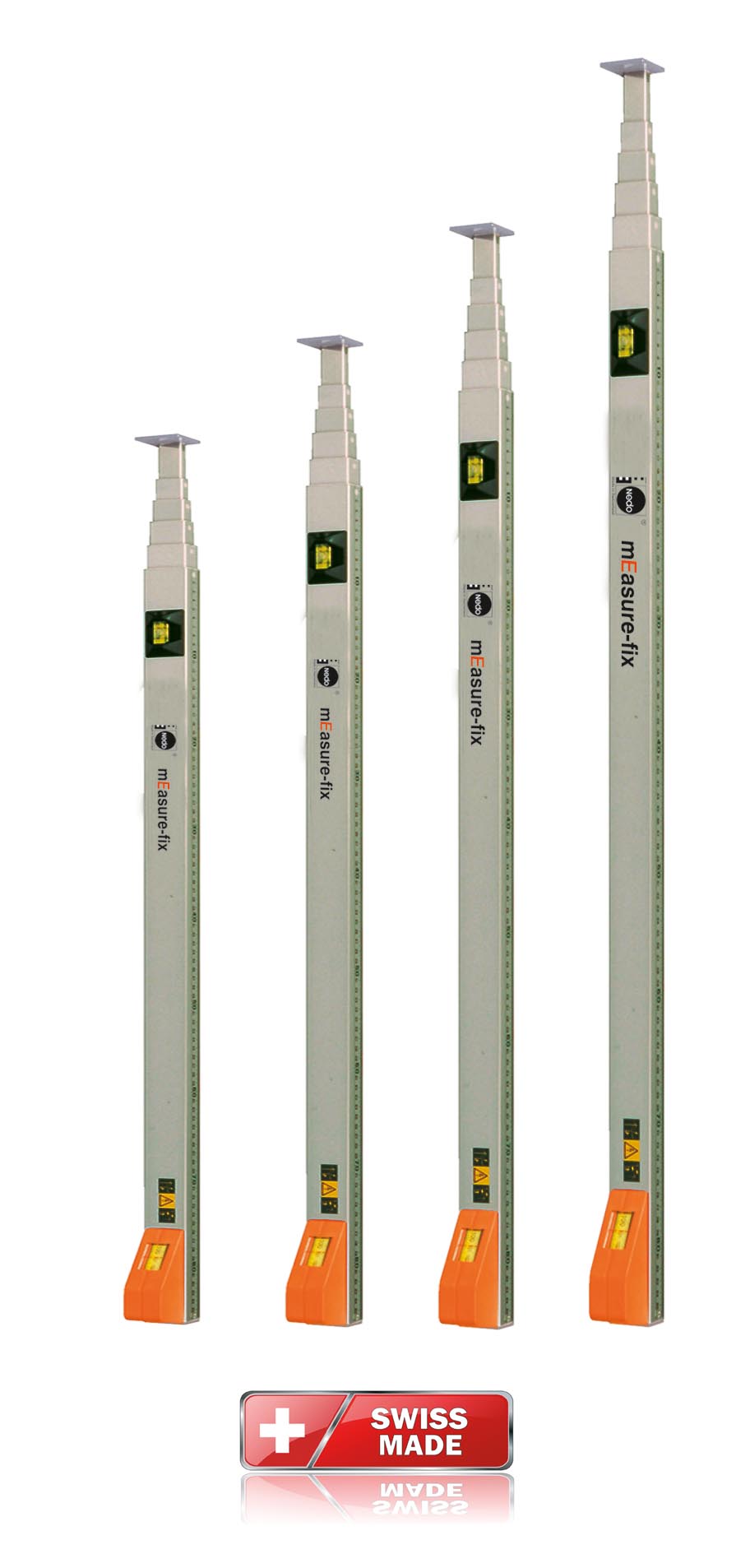

Nedo mEasure-Fix

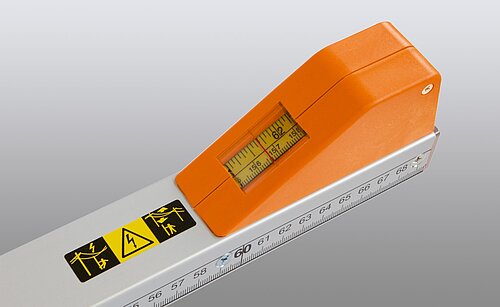

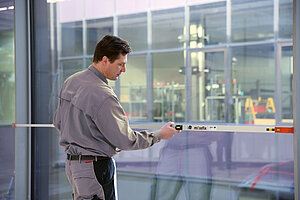

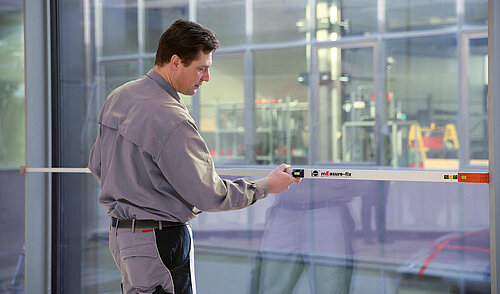

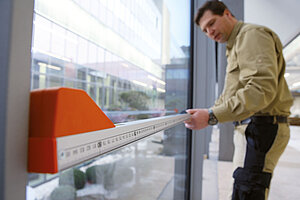

The Nedo mEasure-fix is a thoroughly tried-and-tested telescopic measuring stick, designed to measure inside dimensions such as windows and doors. Simply place the mEasure-fix in position, pull out the extensions and read off the measurement from the analog display.

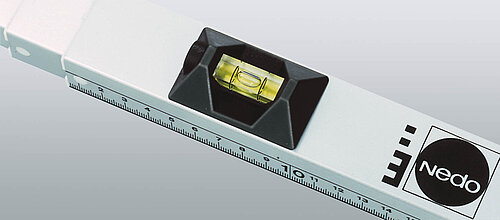

A two-way spirit level attached to the outer tube facilitates taking vertical and horizontal measurements. The built-in metal measuring tape and the heavy-duty rewind mechanism are made to withstand severe stresses and to guarantee accurate measurements at all times. Nedo mEasure-fix is far more accurate than any tape measure since the device does not bend. Thanks to its ease of use, reliability and precision Nedo mEasure-fix is the perfect lenght measuring device when accuracy matters.
Features:
- Sturdy telescopic measuring stick
- Analog display
- Housing made of impact-resistant plastic
- Bubble for horizontal and vertical alignment
- Telescopic-sections made of sturdy, aluminum profiles
- Supplied with case as a standard
Nedo mEasure-fix
| Ref.-No. | Measuring range | Length retracted | Graduations | Weight | Incl. case |
| F 180113-185 | 15’’ to 39’’ / 0.37 to 1.00 m | 15’’ / 0.37 m | mm/inch | 1.5 lbs. / 0.7 kg | yes |
| F 280113-185 | 21’’ to 78’’ / 0.53 to 2.00 m | 21’’ / 0.53 m | mm/inch | 2.0 lbs. / 0.9 kg | yes |

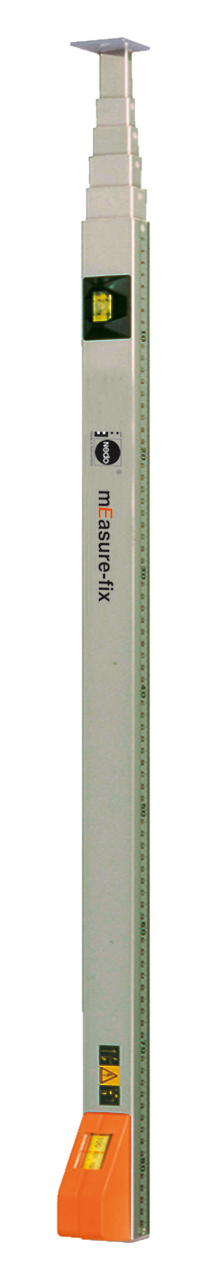

| F 380113-185 | 28’’ to 118’’ / 0.70 to 3.00 m | 28’’ / 0.70 m | mm/inch | 2.4 lbs. / 1.1 kg | yes |

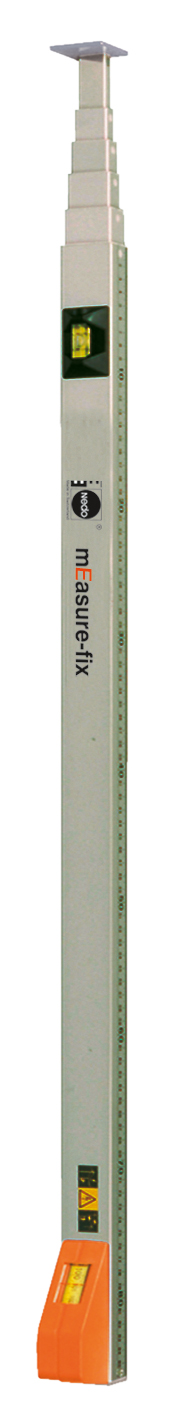

| F 480113-185 | 34’’ to 157’’ / 0.86 to 4.00 m | 35’’ / 0.86 m | mm/inch | 3.0 lbs. / 1.4 kg | yes |

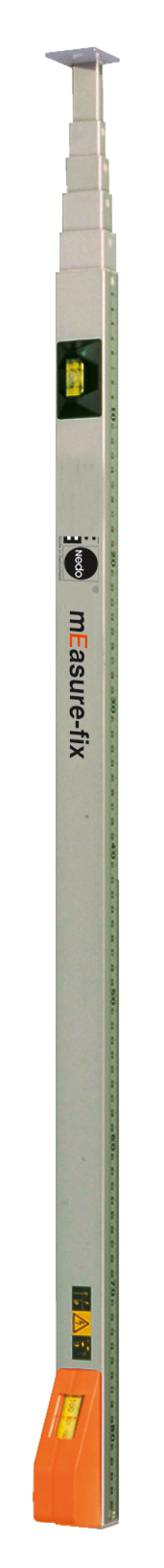

| F 580115-185 | 43’’ to 196’’ / 1.07 to 5.00 m | 43’’ / 1.07 m | mm/inch | 3.7 lbs. / 1.7 kg | yes |
