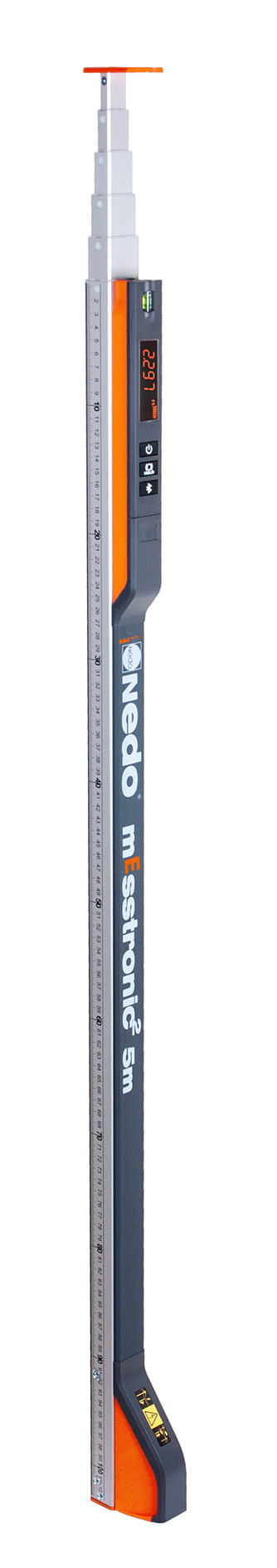

Nedo mEsstronic 2 with Bluetooth®

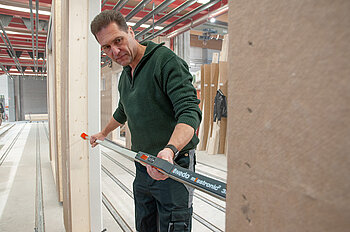

Nedo mEsstronic 2 is the new generation of digital telescopic rules for measuring clear dimensions in interior work.
The new mEsstronic 2 features an integrated Bluetooth interface, a large illuminated display and a very robust design.
The integrated Bluetooth interface transmits measurement values directly to a smartphone, tablet or laptop. Just take a measurement and press the Bluetooth key. Your data can be saved anywhere, for example
in a digital document.No special software is required for data transmission. The measurement data can be used by any app on any mobile device.
The large illuminated display of the mEsstronic 2 is easy to read, even in unfavourable light conditions. The hold function lets you capture the measured value on the display. The value flashes to show activation
of the hold function.
A two-way bubble level integrated in the display housing facilitates measurements in both the horizontal and vertical position.

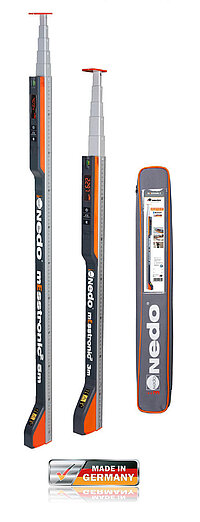

The automatic shut-off prevents unnecessary discharging of the two AA batteries. 2 sizes with a maximum measuring range of up to 119” / 3m and 196” / 5m are available. A padded carrying case is included as a standard.



Features:

  • Bluetooth interface for transmitting measurement values (Bluetooth 5.2 LE)
  • Simple coupling with any mobile device
  • Compatible with iOS, Android and Windows
  • Illuminated display
  • Hold function for capturing values
  • Power supply 2 x 1.5 V AA batteries
  • Automatic shut-off after 3 minutes of non-use
  • Operating time approx. 100 h
  • Integrated bubble levels for horizontal and vertical use

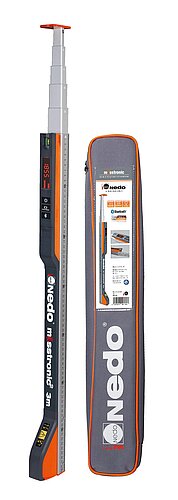

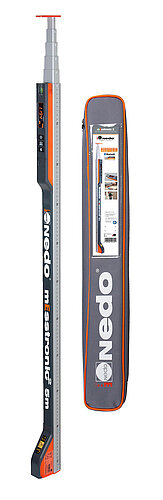

  • Padded carrying bag supplied as standard





Digitalization in measurement: mEsstronic 2 with Bluetooth®

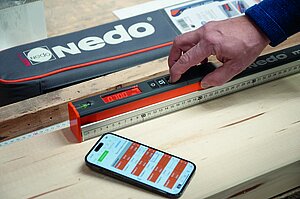

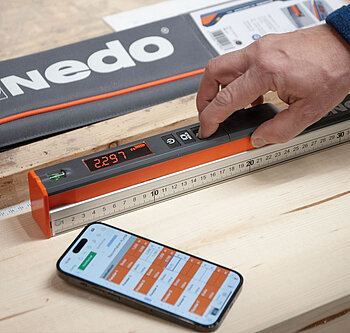

The new mEsstronic 2 with Bluetooth enables measurements to be taken quickly and easily and then transmitted to a mobile device like a smartphone, tablet or laptop. Since no special software is required to do so, the measured values can be used directly in any document or app on a mobile device. mEsstronic 2 is compatible with iOS, Android and Windows.

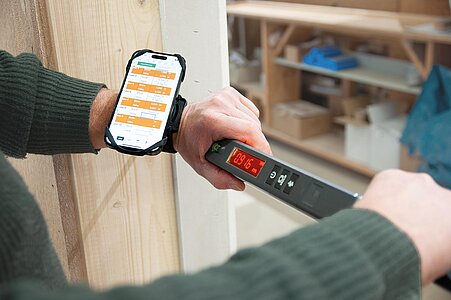

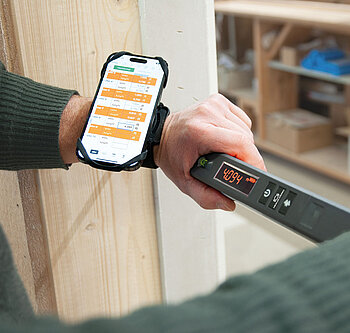

Just take the measurement, mark the required box in your app and then press the Bluetooth key of the mEsstronic 2: the measured value is now available on the mobile device for further processing.
No more tiresome manual entry of the measured values into a measurement sheet. That saves time and prevents errors.


The new mEsstronic 2 with Bluetooth for digitalization in measurement.





Nedo mEsstronic 2

Ref.-No. Measuring range Accuracy Length retracted Graduations Resolution Weight Incl. case Incl. bubble
583131-185 28” to 118” / 0.70 m to 3.00 m ± 1/16" / ± 1 mm 28" / 0.70 m in & frac. ft, mm, m ± 1/16“ / 1 mm 3 lbs. yes yes
585131-185 42“ to 196“ / 1.05 m to 5.00 m ± 1/16" / ± 1 mm 42" / 1.05 m in & frac. ft, mm, m ± 1/16“ / 1 mm 4.6 lbs. yes yes
