Nedo Winkelfix


With the Nedo Winkelfix, measurements of angles are performed quickly, precisely and with the utmost ease. Simply place the Nedo Winkelfix in position and the angle can be rapidly read off from the analog display. Two integral spirit levels ensure true horizontal and vertical positioning. Thanks to its reliability, sturdiness and convenience, the Nedo Winkelfix has proven its value to the building trade over and over again. You too will find measuring angles easier with one of our two Winkelfix models!

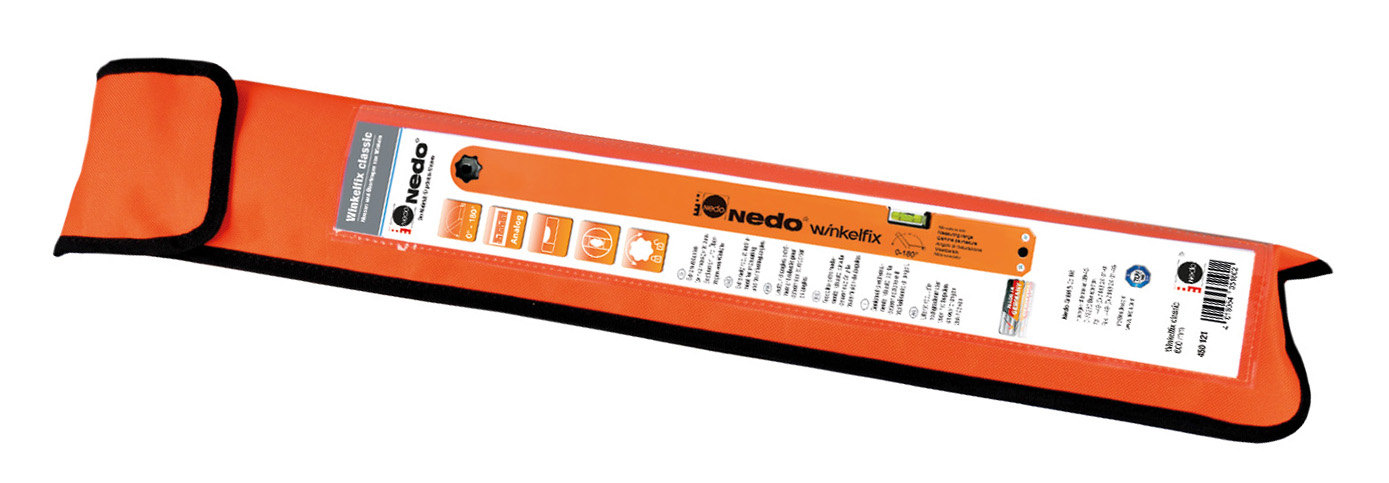

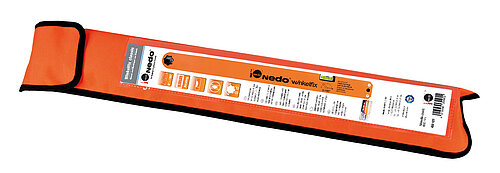

All Nedo Winkelfix models are supplied with a case as a standard.


Nedo Winkelfix

Ref.-No. Shank length Graduations Measuring range Compass points Weight Incl. case

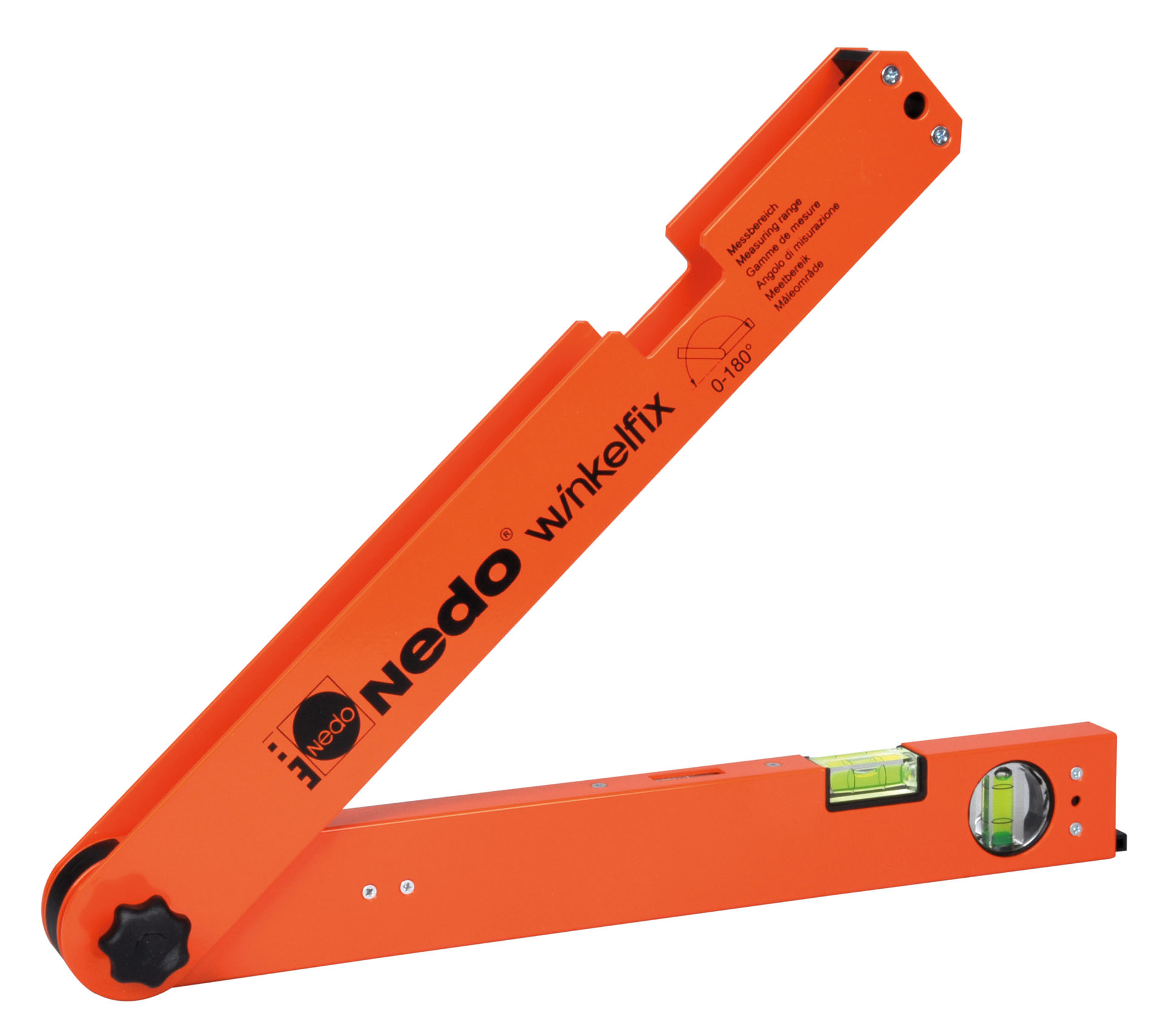

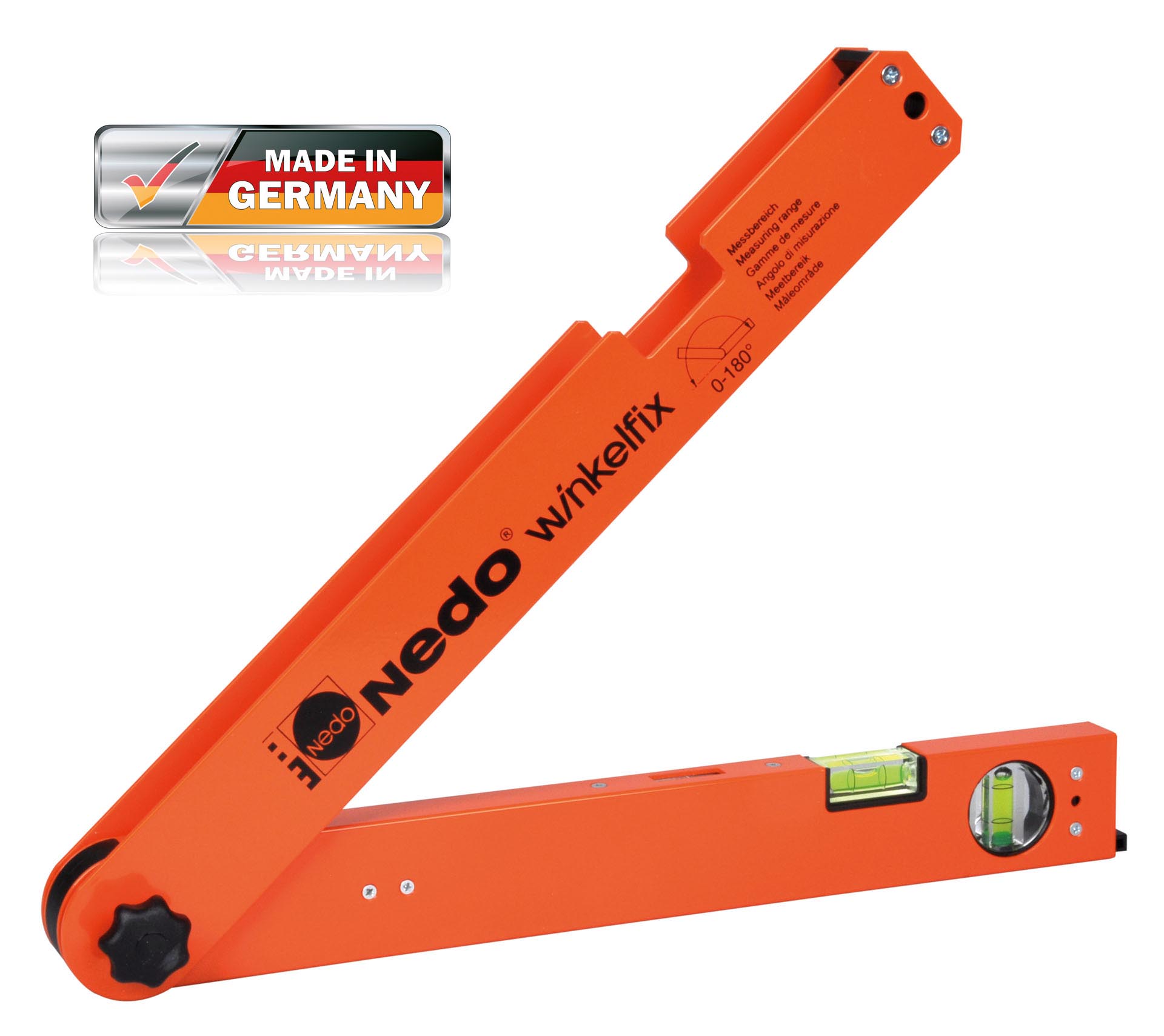

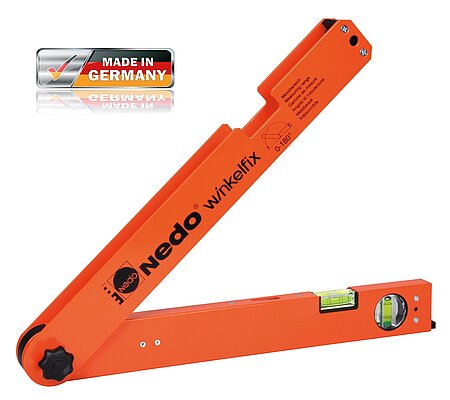

450111-185 mini 17’’ / 430 mm degrees 0 to 180° no 2.0 lbs. / 0.9 kg yes

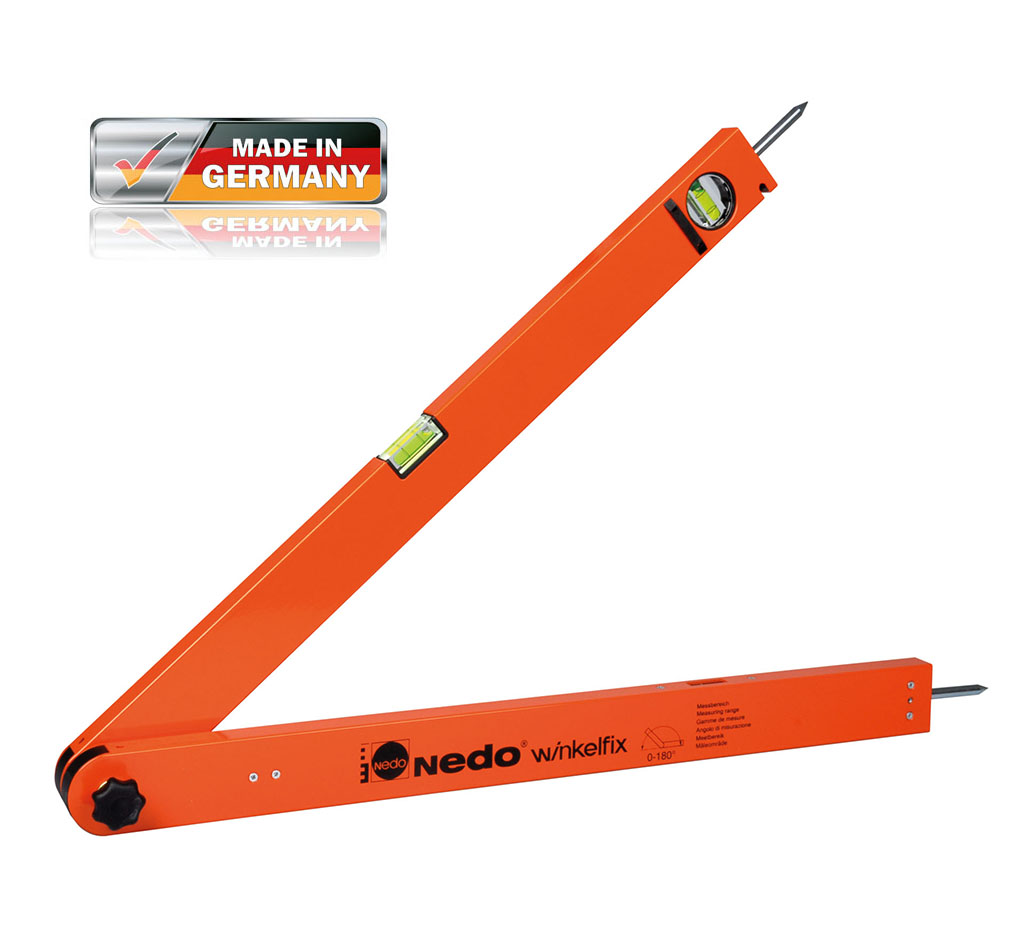

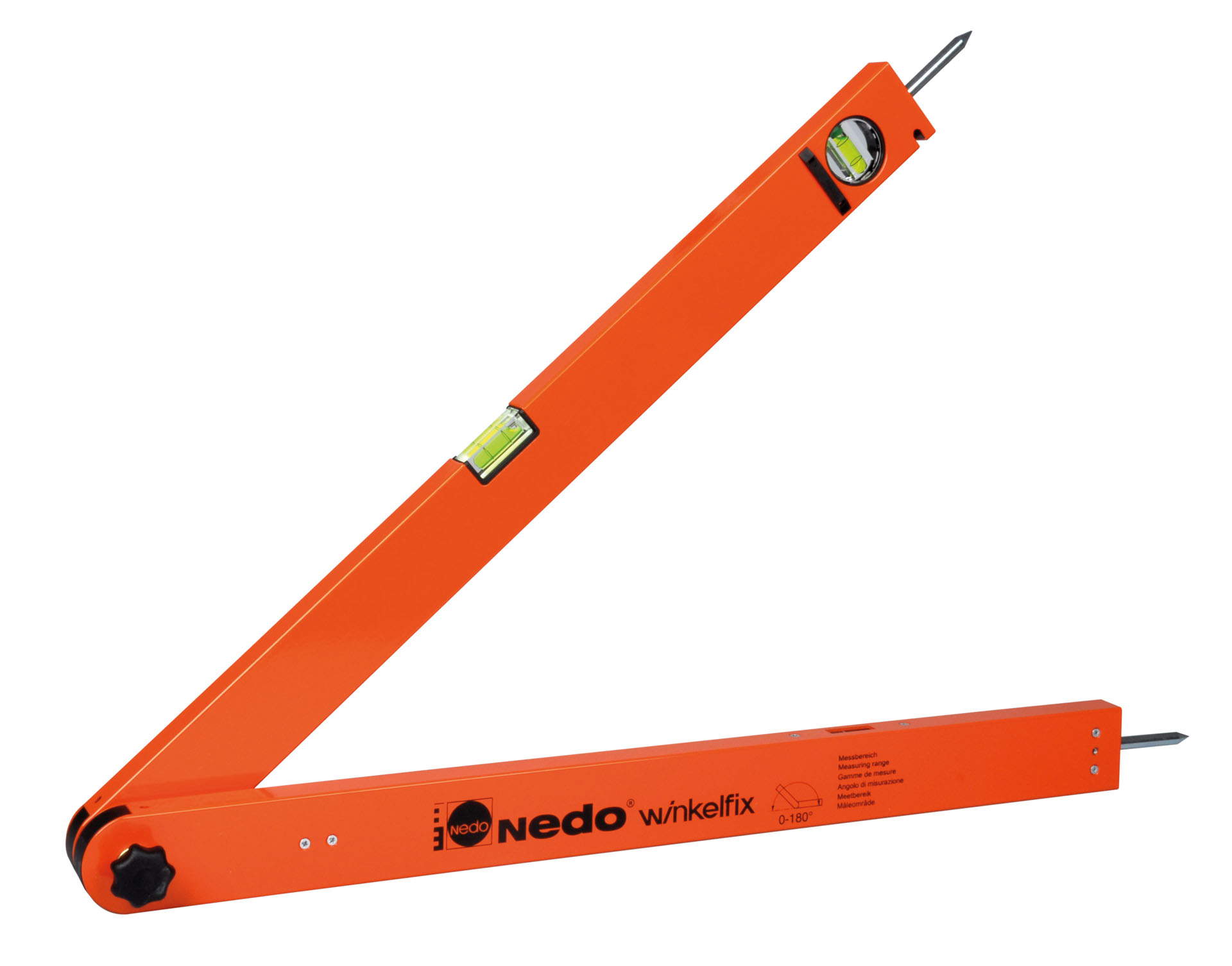

500111-185 maxi 23’’ / 600 mm degrees 0 to 180° yes 2.6 lbs / 1.4 kg yes

Product Flyer

Product and application images
