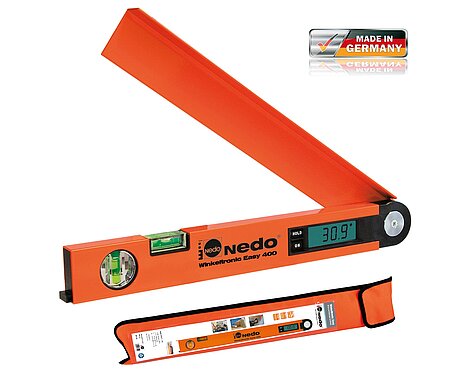

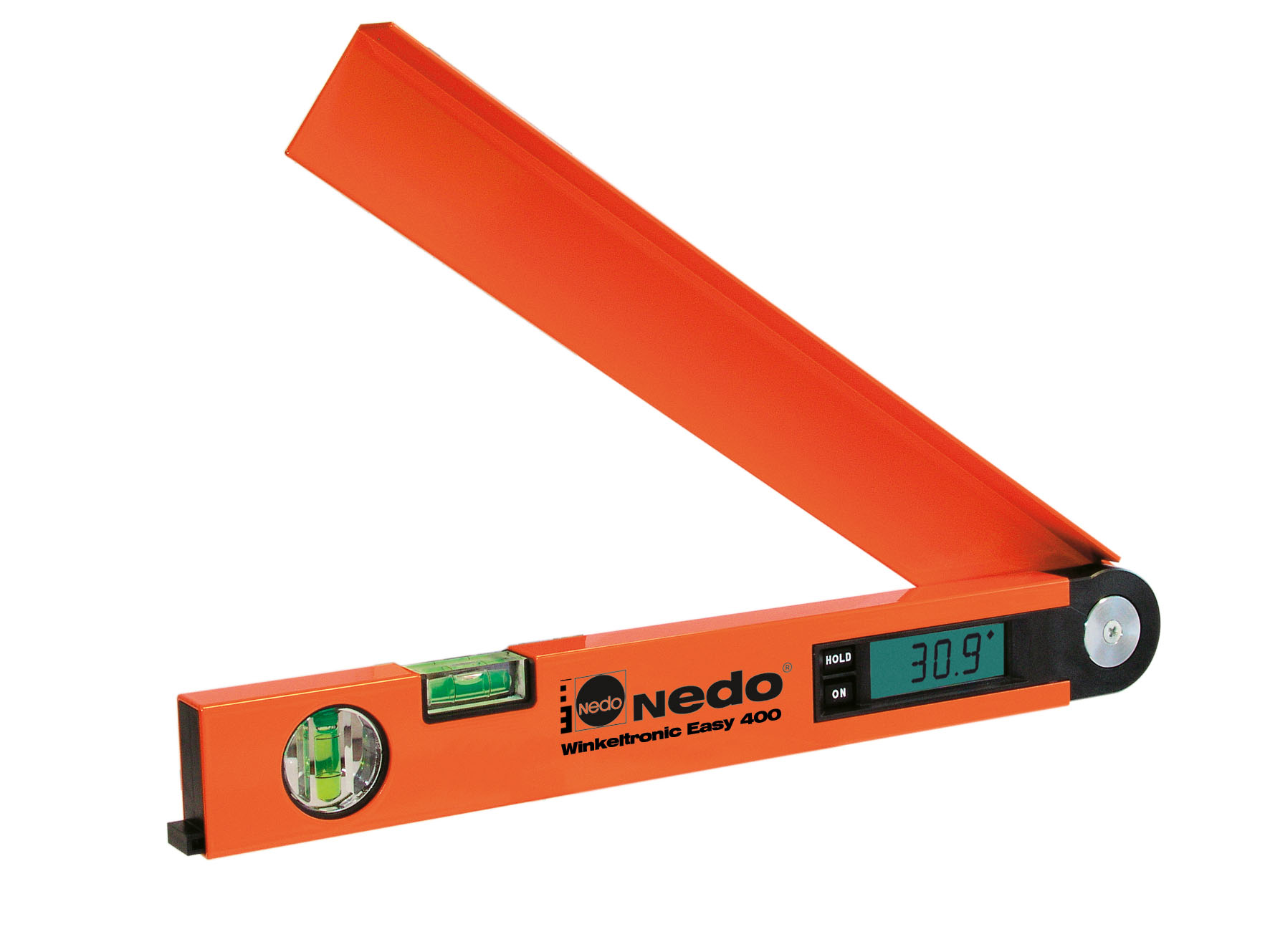

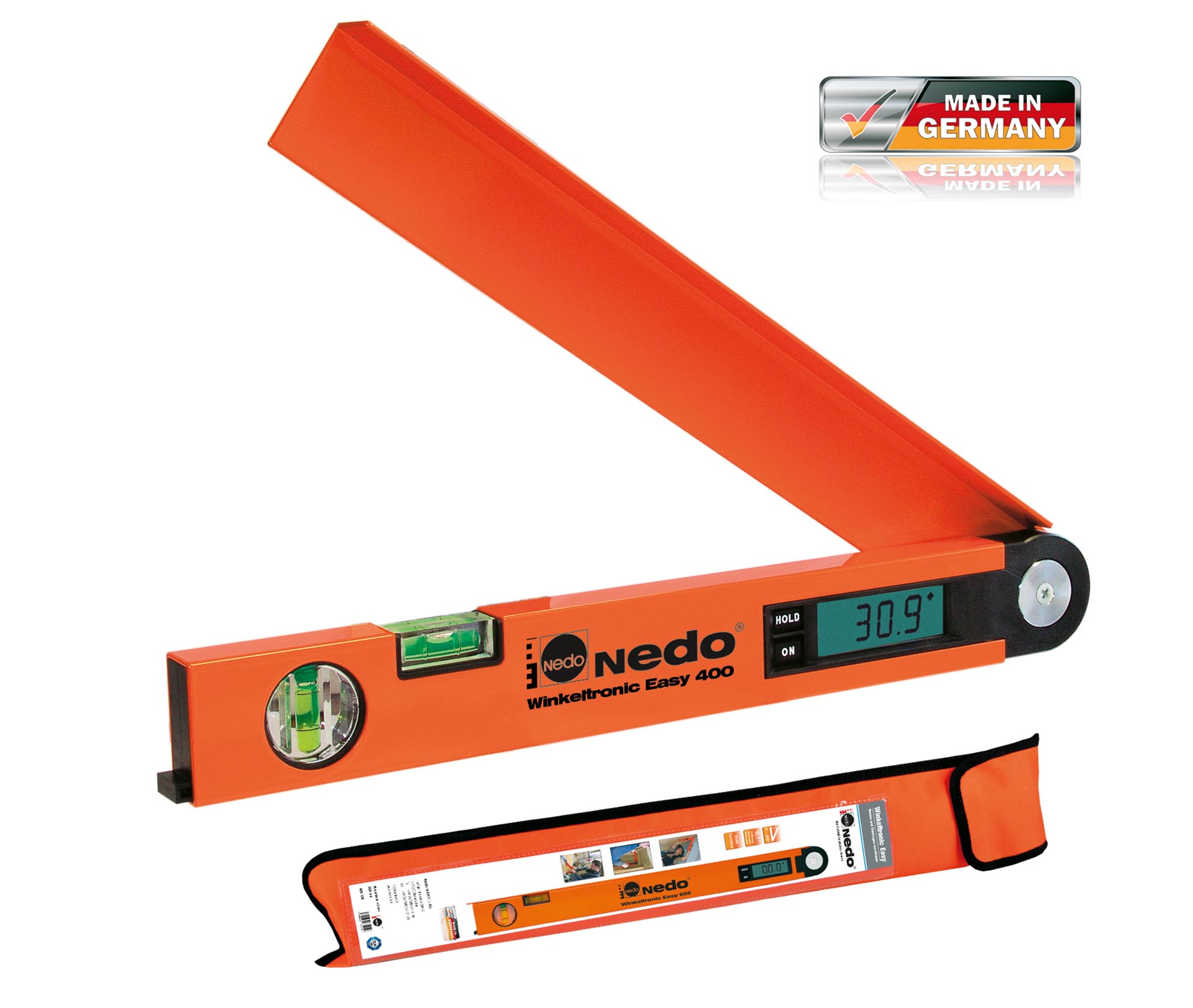

Nedo Winkeltronic Easy



Digital angle measuring tool for measuring and transferring angles. Thanks to its light weight and large display, the Winkeltronic Easy is ideal for use on construction sites, especially for interior outfitting.



Features:

  • Accuracy: ± 0.2°
  • Hold function keeps a value on the display
  • Zero adjustment at any shank angle
  • Integrated horizontal and vertical spirit levels
  • Power supply: 2 x 1.5 V (AA) batteries or 2 x 1.2 V rechargeable batteries
  • Automatic switch-off after 3 minutes of non-use
  • Measurements of absolute, relative and opposite angles

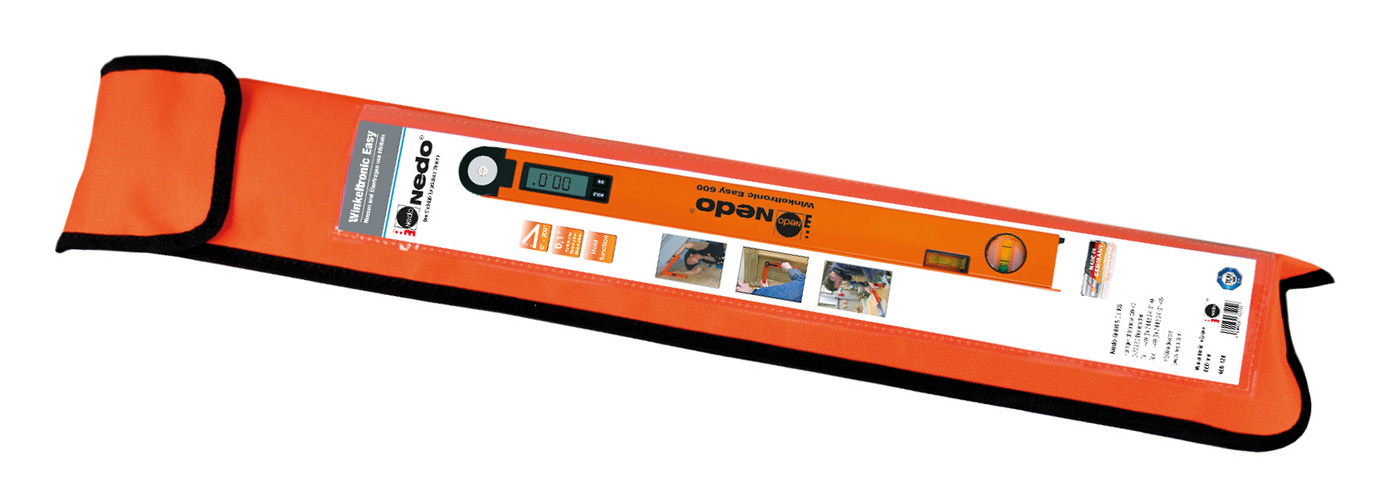

  • Supplied with case as a standard



Nedo Winkeltronic Easy

Ref.-No. Shank length Resolution Measuring range Weight Incl. case
405100 15 3/4’’ / 400 mm 0.1° 0 to 200° 1.4 lbs. / 0.65 kg yes

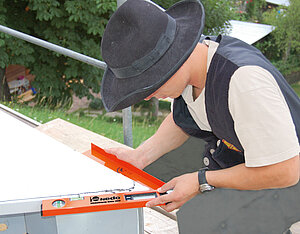

Product and application images
