Carbon Line
Carbon Tripod for Laser Scanners

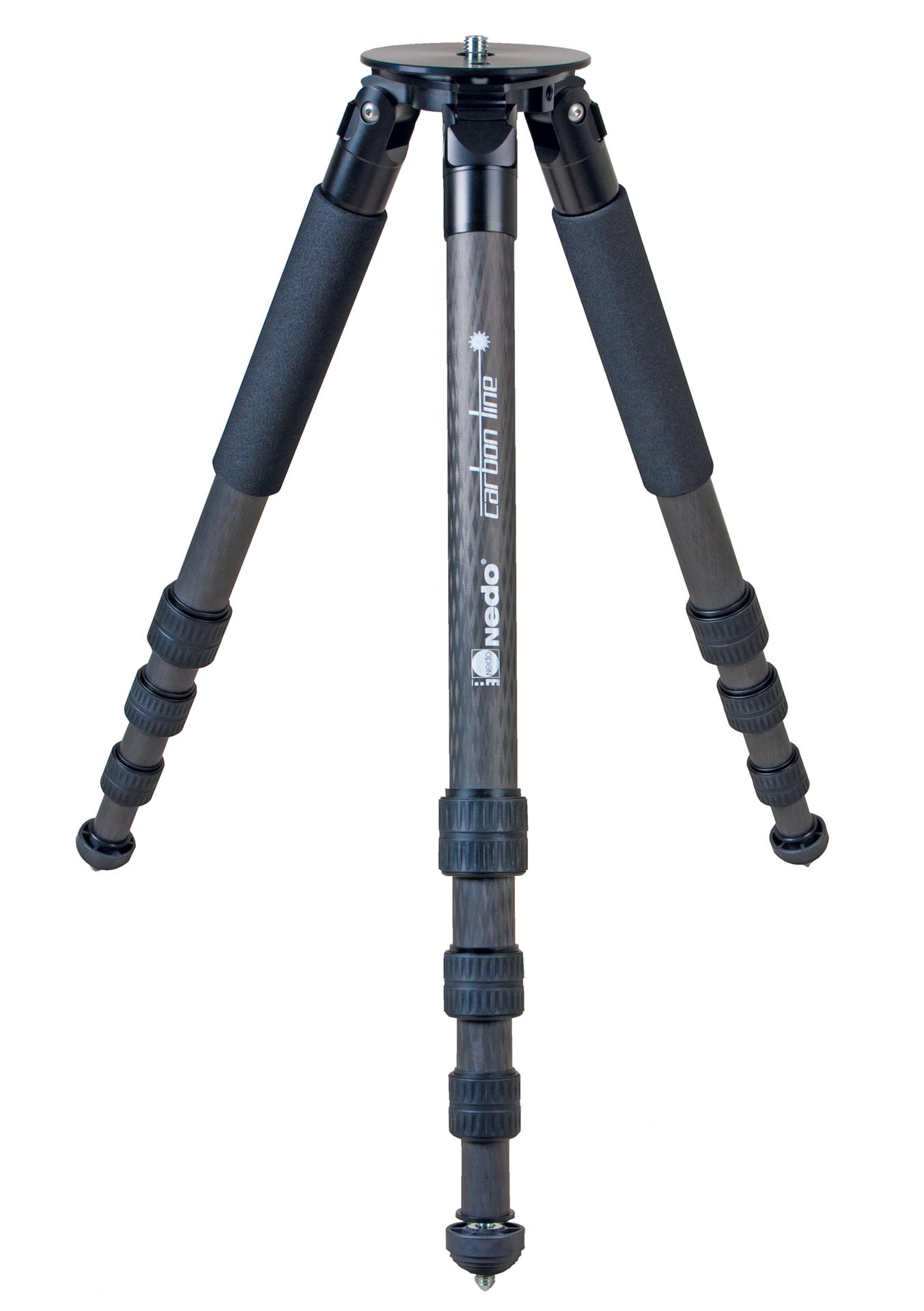

The new Nedo Carbon Line tripod was designed specifically for use with 3D laser scanners. Its high-quality tubular sections made of carbon-fiberreinforced polymer (CFRP) make it especially lightweight and at the same time extremely rigid. The legs of the Carbon Line tripod pull out in four sections, giving it a working height from 21.25’’ to 65’’ (0.54 m to 1.65 m) with a transport length of only 23.5’’ (0.60 m).
An adjustable slip guard keeps the tripod legs from sliding away on smooth surfaces. Combi tripod shoes allow for all terrain use on both, sensitive or slippery indoor floors and outdoors.

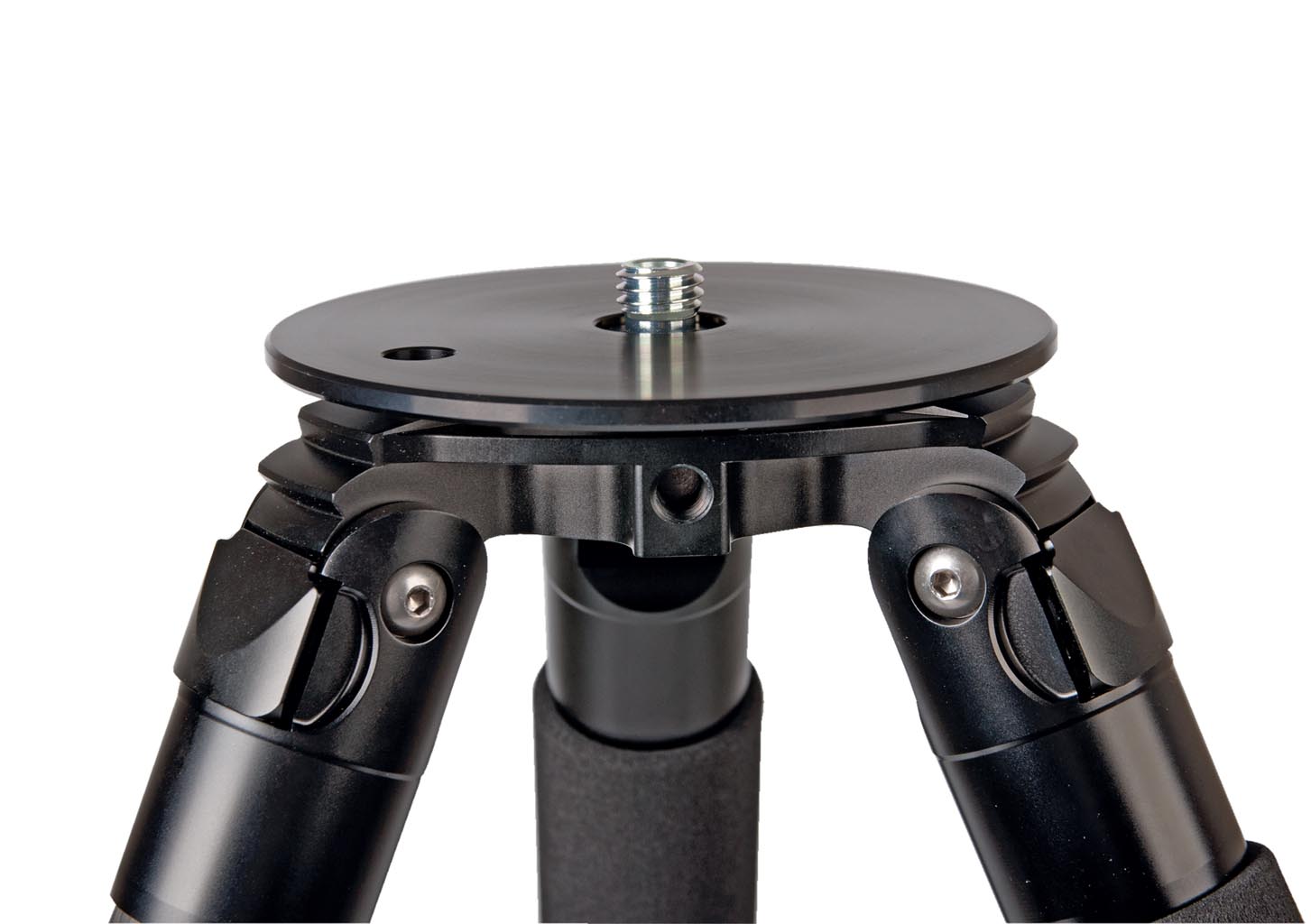

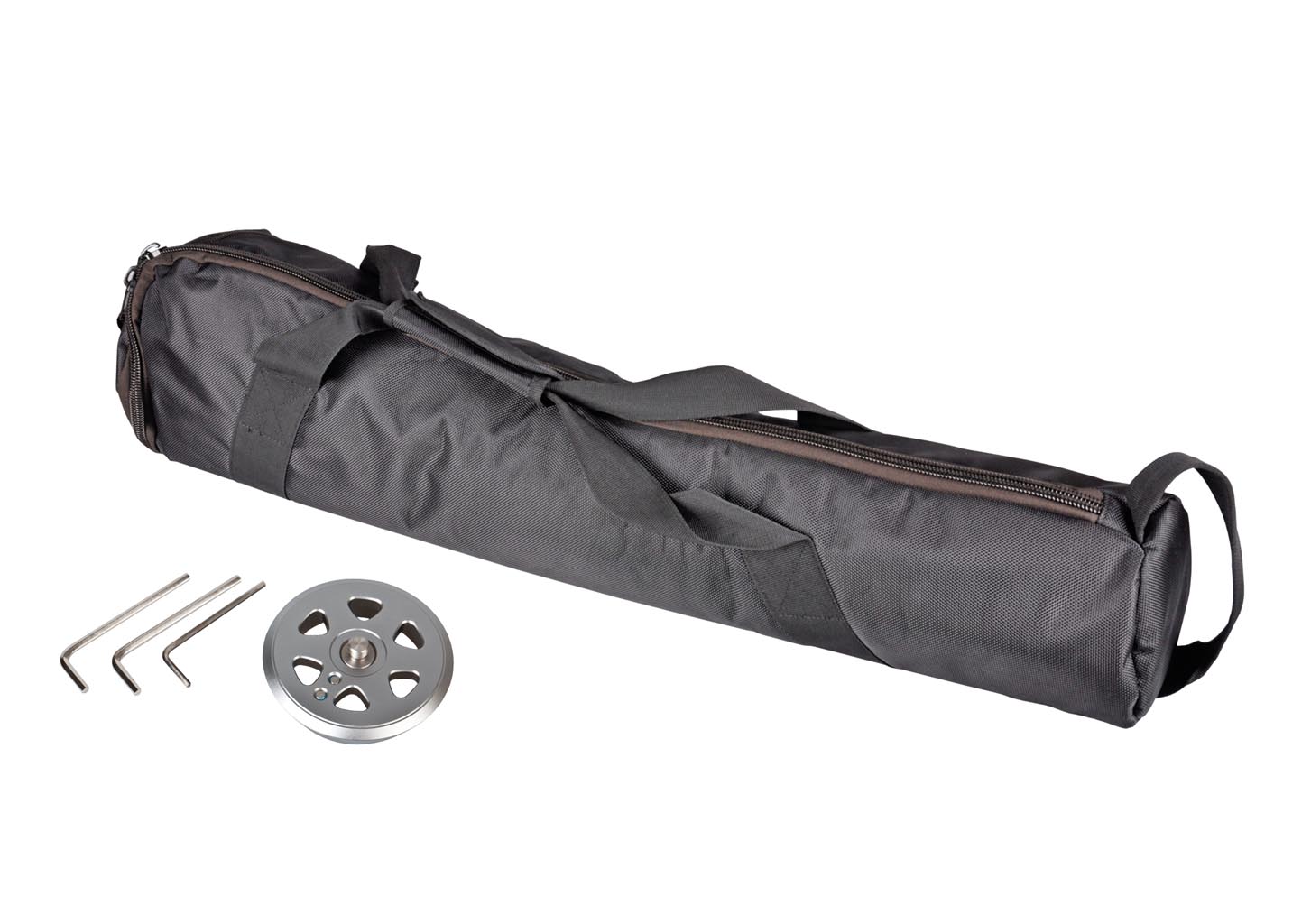

Nedo Carbon Line tripod features a large, removable tripod head with a diameter of 5.5’’ (140 mm) for secure mounting of instruments with a 5/8" connection thread. The standard equipment also includes a smaller top plate for instruments with a 3/8" connection thread. A padded carrying bag is included.
Features:
- Extremely light and robust tripod made of CFRP
- 4-section tripod legs
- Combi tripod feet
- Large top plate, 5.5’’ / 140 mm diameter, with 5/8" connection thread
- Small top plate, 3.0’’ / 74 mm diameter, with 3/8" connection thread
- Interchangeable head insert with 3/8″ and 5/8’’ connection thread
- Spirit level
- Adjustable slip guard

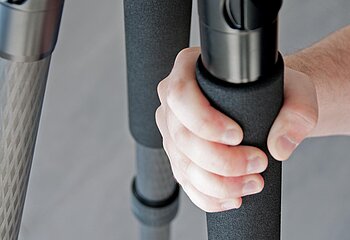

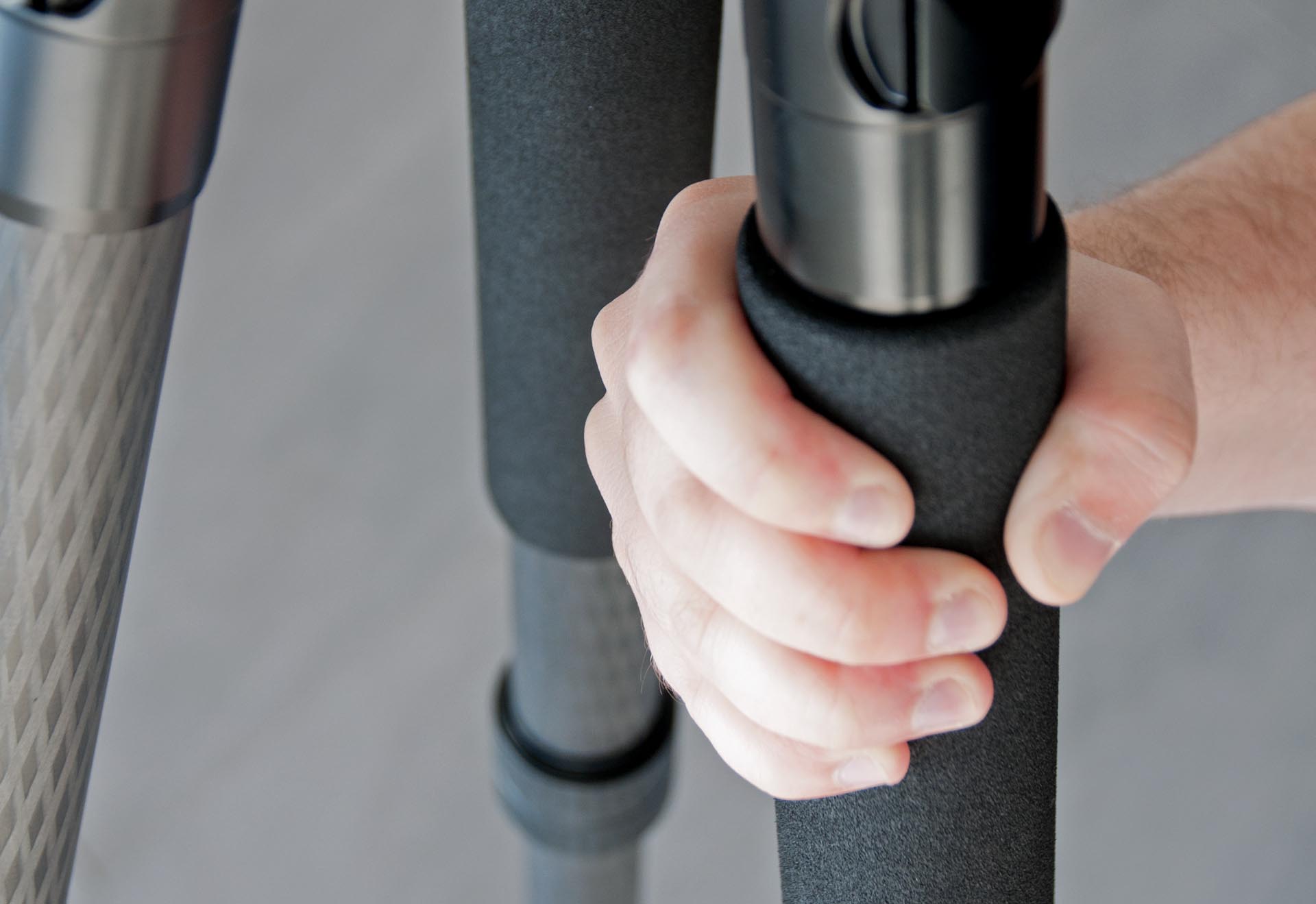

- Two tripod legs with softgrip
Carbon Line
Carbon Tripod for Laser Scanners
Tripod Ref.-No. 200700
Technical data:
- Min. effective height approx. 21.25’’ / 0.54 m
- Max. effective height approx. 65’’ / 1.65 m
- Retracted length approx. 23.5’’ / 0.59 m
- Weight approx. 5.9 lbs. / 2.68 kg
- Holding screw: 5/8’’ thread and 3/8’’ thread ( exchangeable )
Product Flyer

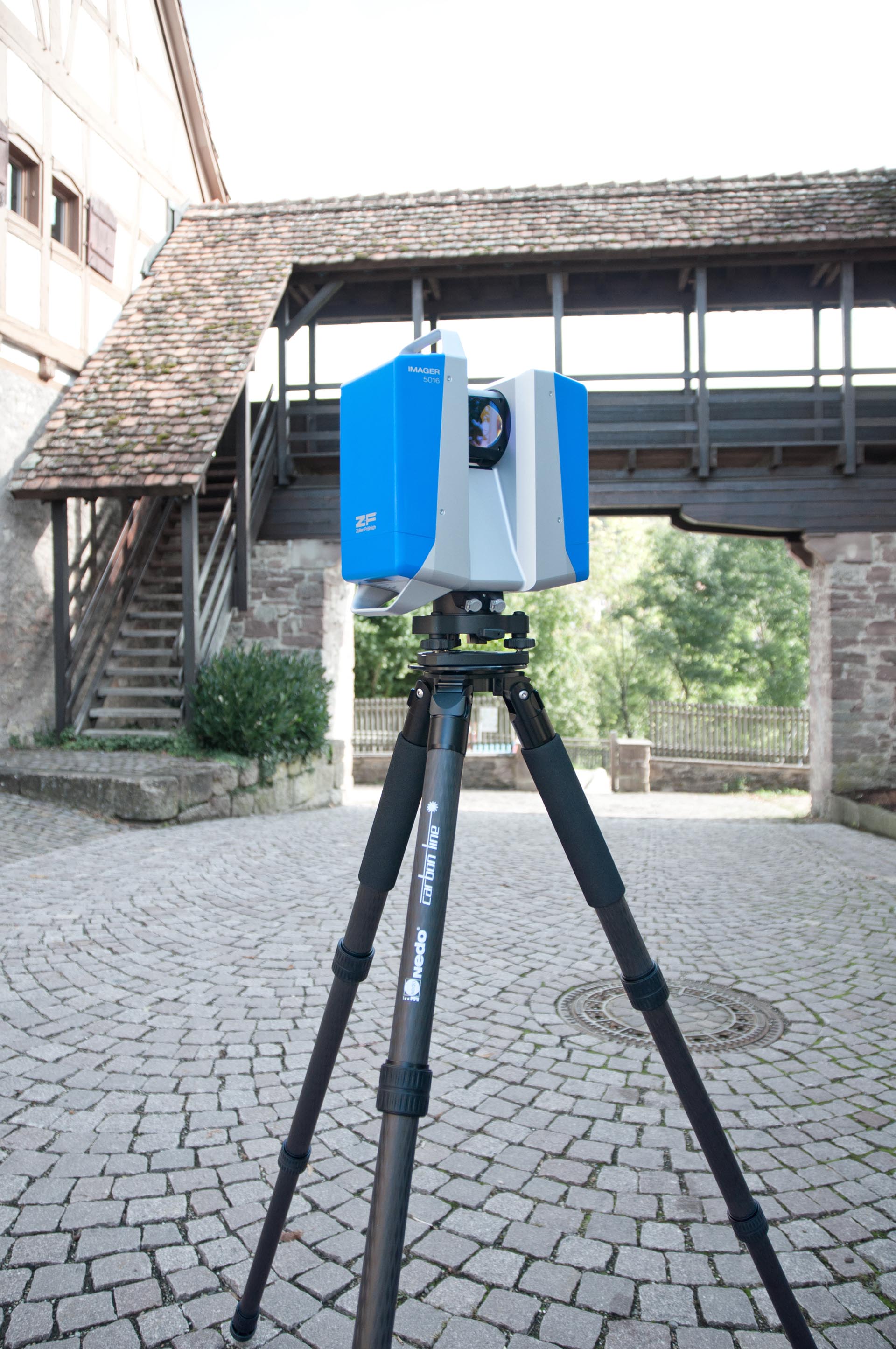

Product and application images
Accessories for Carbon Line Tripod

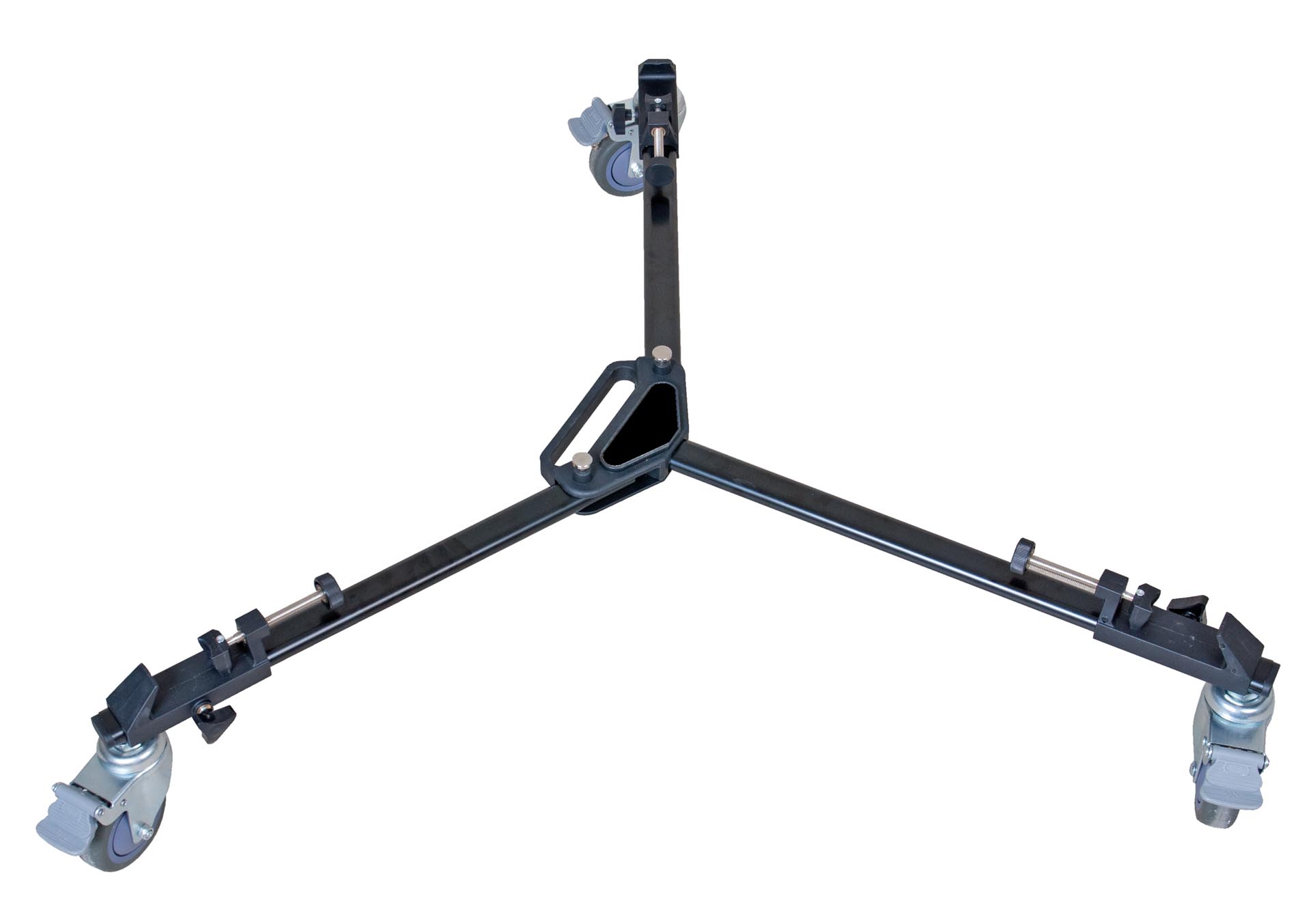

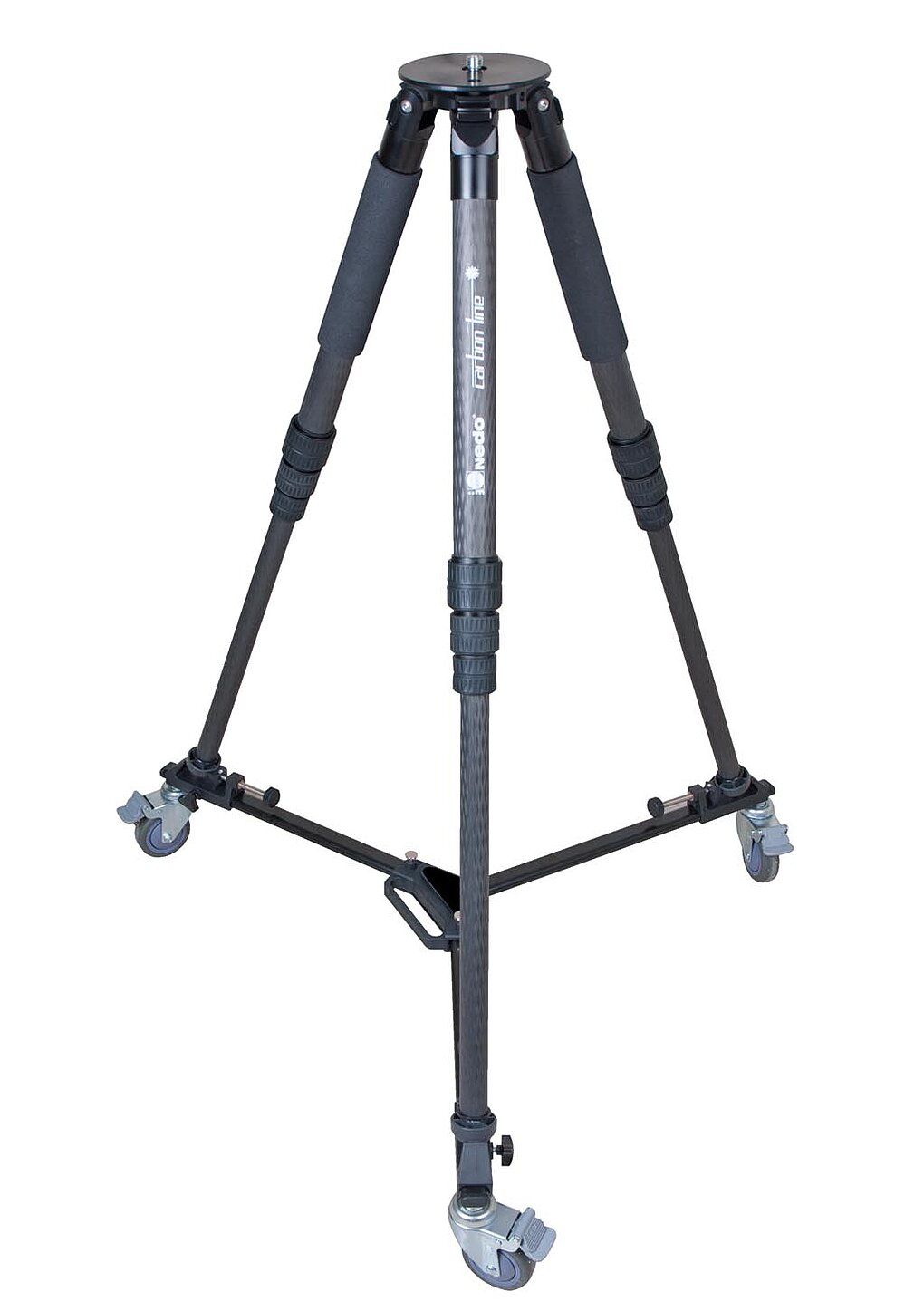

Tripod dolly
Ref.-No. 660035
- Sturdy tripod dolly with lockable wheels
