Extra Heavy-Duty and Giant Elevating Tripods
Technical data:
- Min. effective height approx. 33’’ / 0.90 m
- Max. effective height approx. 119’’ / 3.10 m
- Retracted length approx. 52’’ / 1.30 m
- Weight approx. 19 lbs. / 8.6 kg
- Holding screw: 5/8’’ x 11 thread
- Tripod plate, Ø 4.3’’ / 110 mm
- Telescopic section 2-fold
- Adjustable column range 23’’/23’’ / 575/590 mm
Features:
- Indirect gear unit, reinforced for easy handling and less wear and tear
- Double telescope for a wide working range
- Additional leg struts for extra stability
- Scale on elevating column: inches, feet and 10ths and mm
- Circular bubble
- Strong aluminum extension legs, silver anodized
- Tripod head and plate made of aluminum, powder-coated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Combi tripod shoes for all terrain use
Suitable for:
- Rotating lasers
- Heavy rotating lasers
- 3D Laser Scanners

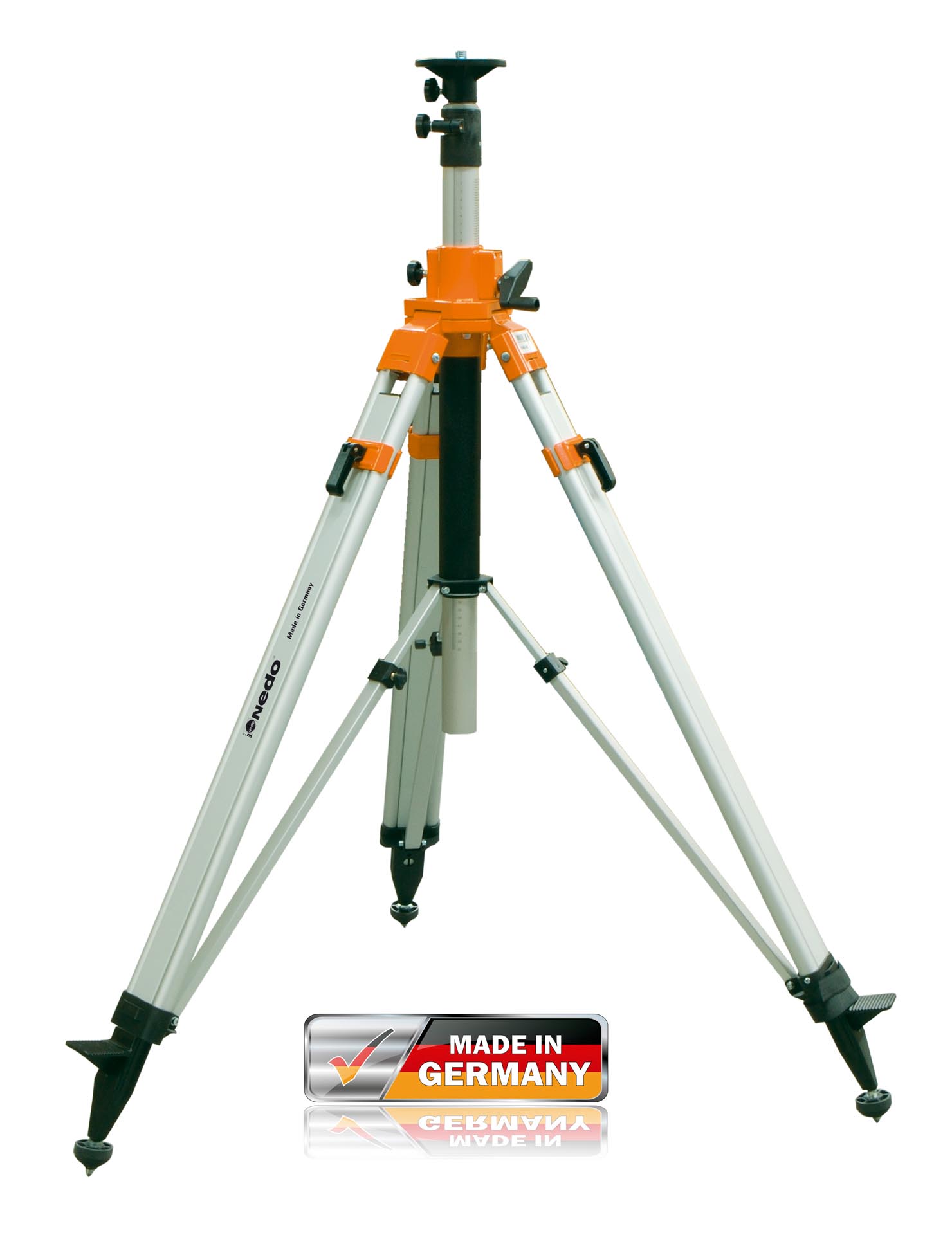

Extra Heavy-Duty Elevating Tripod Ref.-No. 210683-185
Technical data:
- Min. effective height approx. 70’’ / 1.77 m
- Max. effective height approx. 157’’ / 4.00 m
- Retracted length approx. 74’’ / 1.87 m
- Weight approx. 25 lbs. / 11.50 kg
- Holding screw: 5/8’’ x 11 thread
- Tripod plate, Ø 4.3’’ / 110 mm
- Telescopic section 2-fold
- Adjustable column range 23’’/23’’ / 600/590 mm
Features:
- Indirect gear unit, reinforced for easy handling and less wear and tear
- Double telescope for a wide working range
- Additional leg struts for extra stability
- Scale on elevating column: inches, feet and 10ths and mm
- Circular bubble
- Strong aluminum extension legs, silver anodized
- Tripod head and plate made of aluminum, powder-coated
- Break-proof quick release levers, made of aluminum
- Additional screw clamps
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
Suitable for:
- Rotating lasers
- Heavy rotating lasers
- 3D Laser Scanners

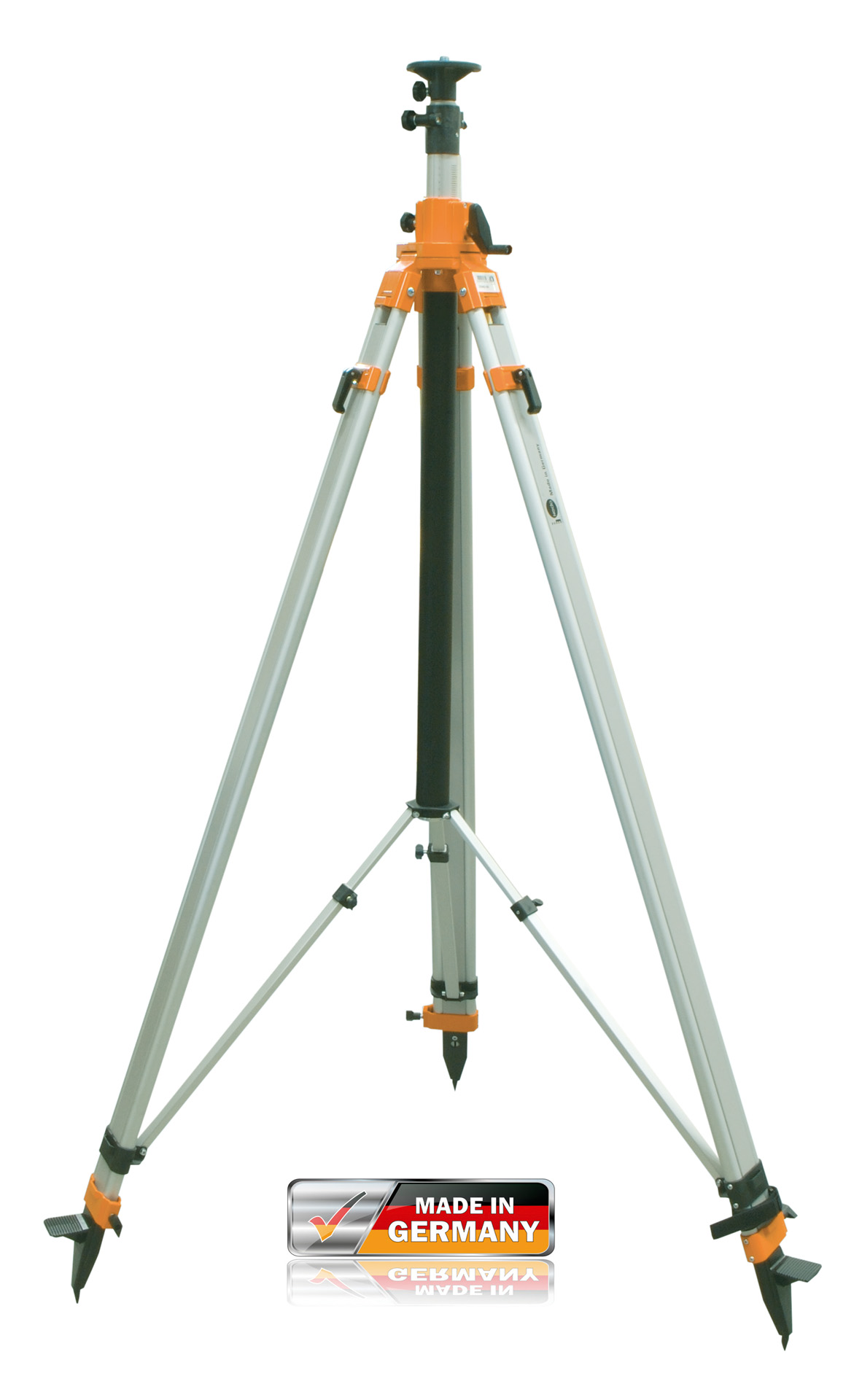

Giant Elevating Tripod Ref.-No. 210443-185
