Industrial Line
Special Tripod for Laser Scanners
Two Way Tripod for Laser Scanners

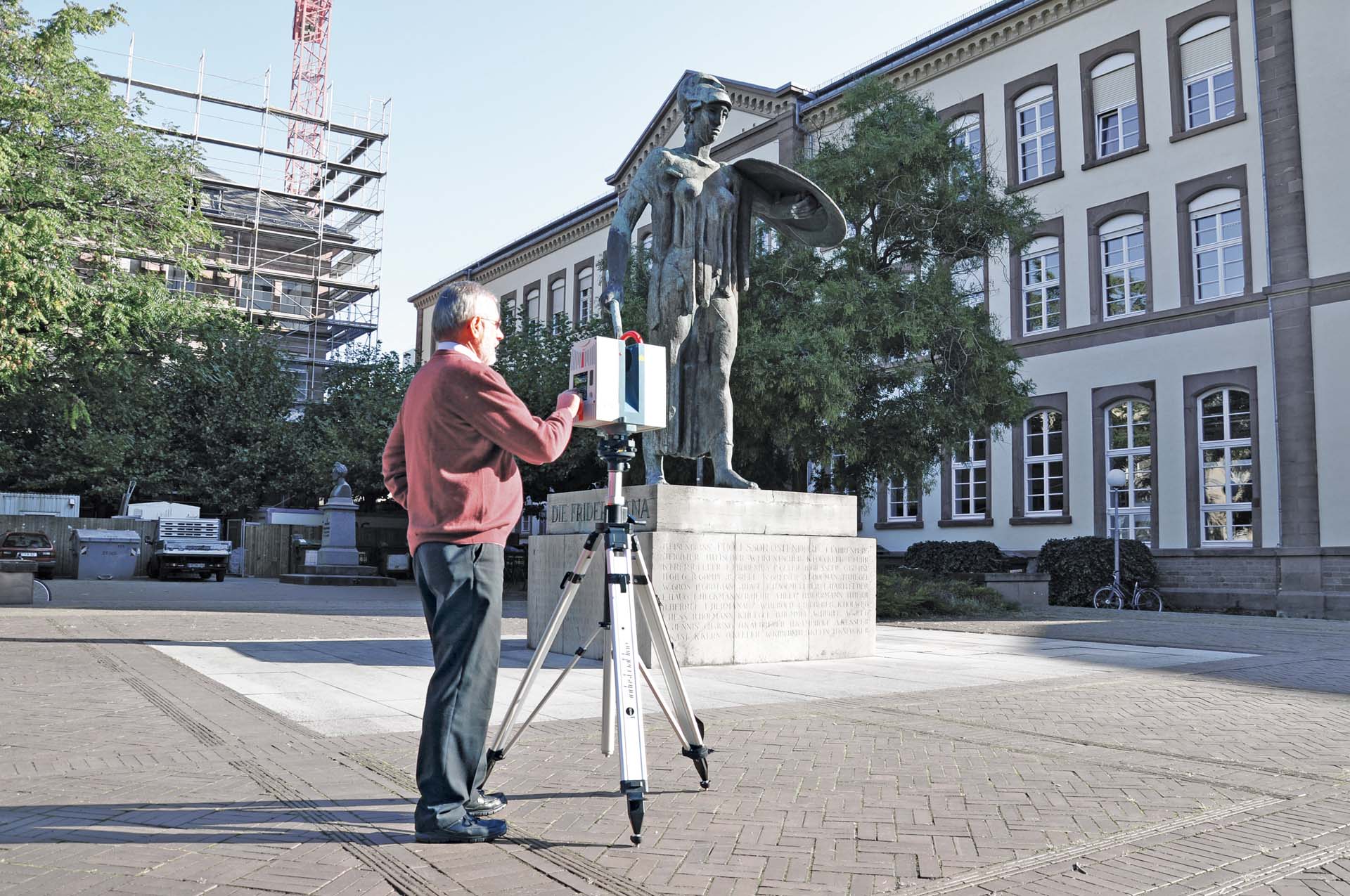

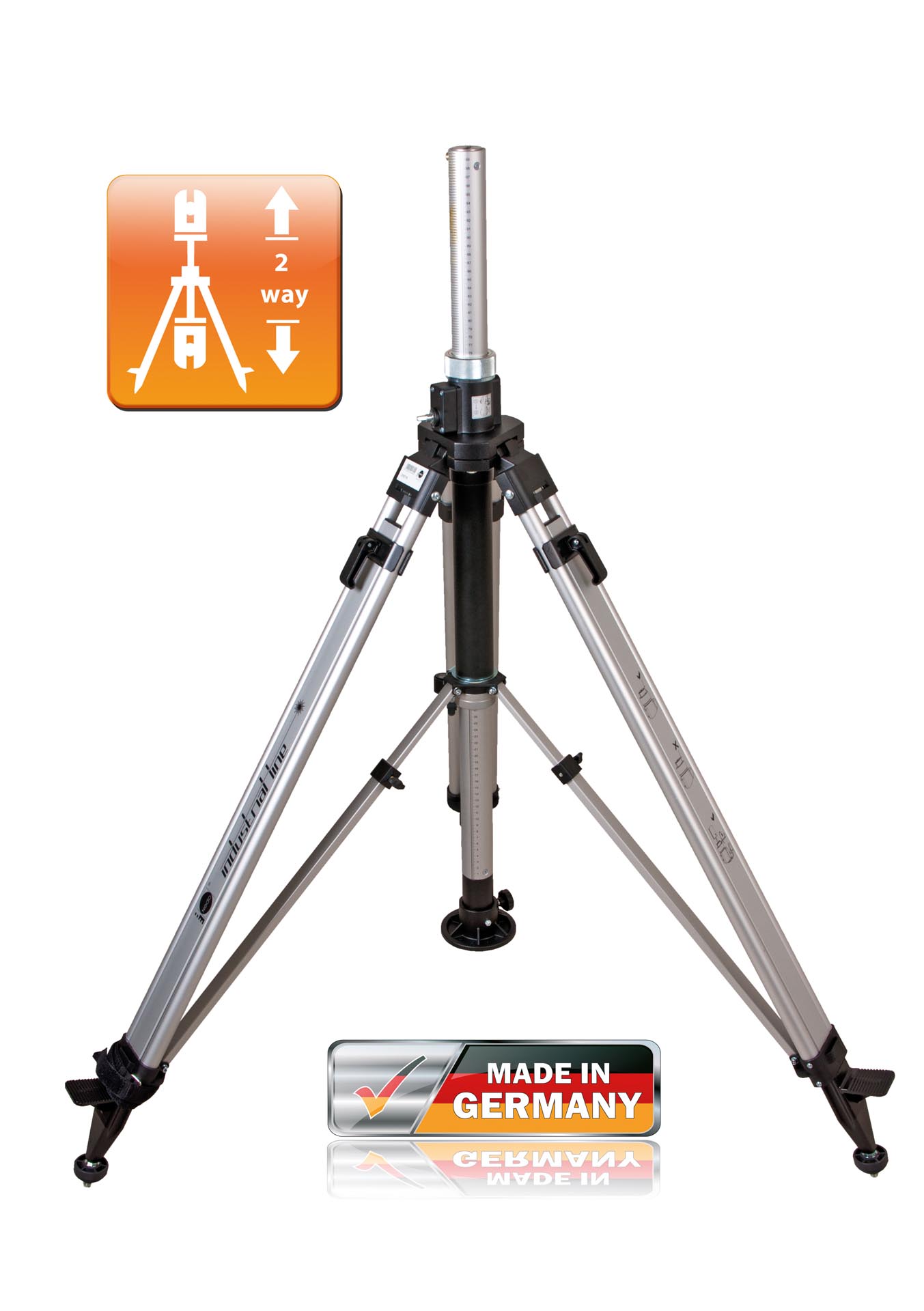

The Industrial Line elevating tripod is designed for the use of 3D laser scanners. The laser scanner can be mounted either on top or underneath the 2-way elevating tripod ensuring maximum flexibility. When mounted at the top, the laser scanner can be easily lifted to the desired working height. The indirect gear unit allows for maximum convenience. For stability reasons, the maximum working height is limited to 13’.

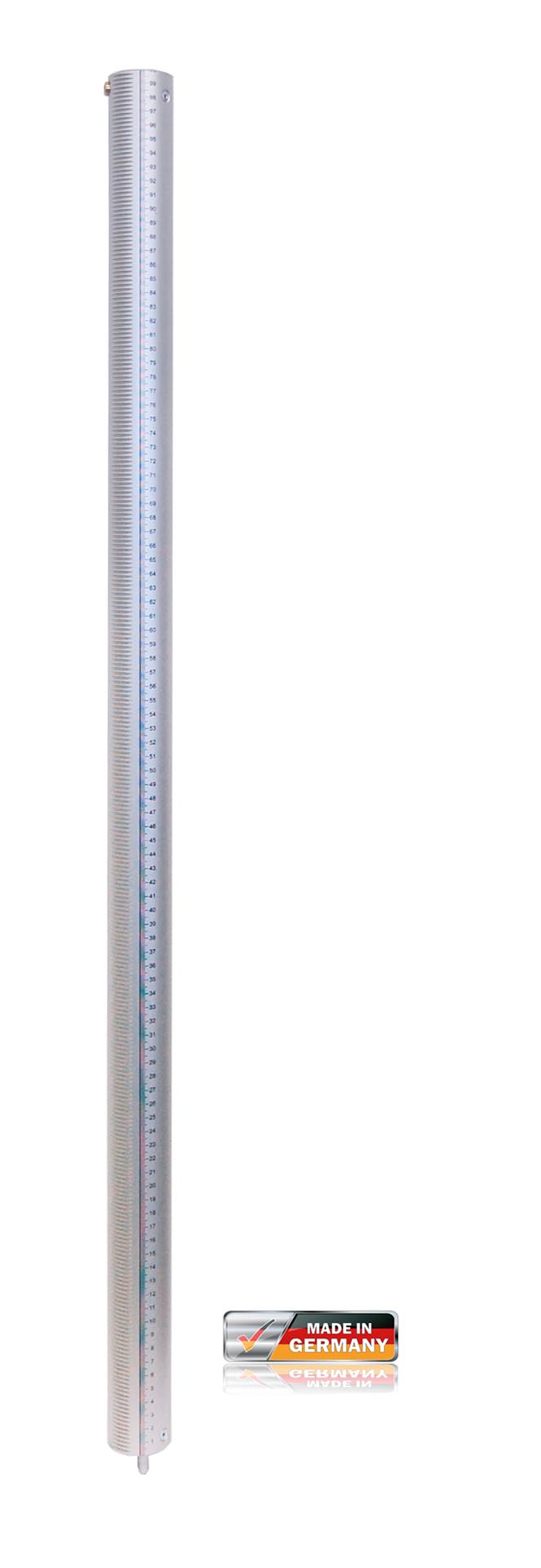

For shaft applications, the column can be turned and the laser scanner mounted underneath the elevating column and inserted from above the shaft cover into the shaft compartment. The toothed rack extends to almost any length. Additional rack elements are inserted into the elevating head and securely connected to the previously inserted toothed rack element with the aid of an innovative locking device.
For even more comfort, the laser scanner can be lifted with a cordless power drill. A proper screw bit to replace the crank is supplied as a standard. Needles to say that the Industrial Line elevating tripod is equipped with a twist proof elevating column with centric clamping and combi tripod shoes for all-terrain use.
Industrial Line
Two Way Tripod for Laser Scanners
Technical specifications:
- Min. effective height approx. 44’’ / 1.10 m
- Max. effective height approx. 197’’ / 5.00 m
- Depth of shaft approx. 157’’ / 4.00 m
- Retracted length approx. 48’’ / 1.22 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 20 lbs. / 9.00 kg
- Tripod plate flat, Ø 4.3’’ / 110 mm
- Tripod head and joints made of aluminium
- Use of the laser scanner above and below the elevating tripod
- mm graduation on telescopic tube
- Twist proof elevating column with centric clamp
- Suitable for shafts with a diameter of 81'' / 205 cm
Ref.-No. 210710

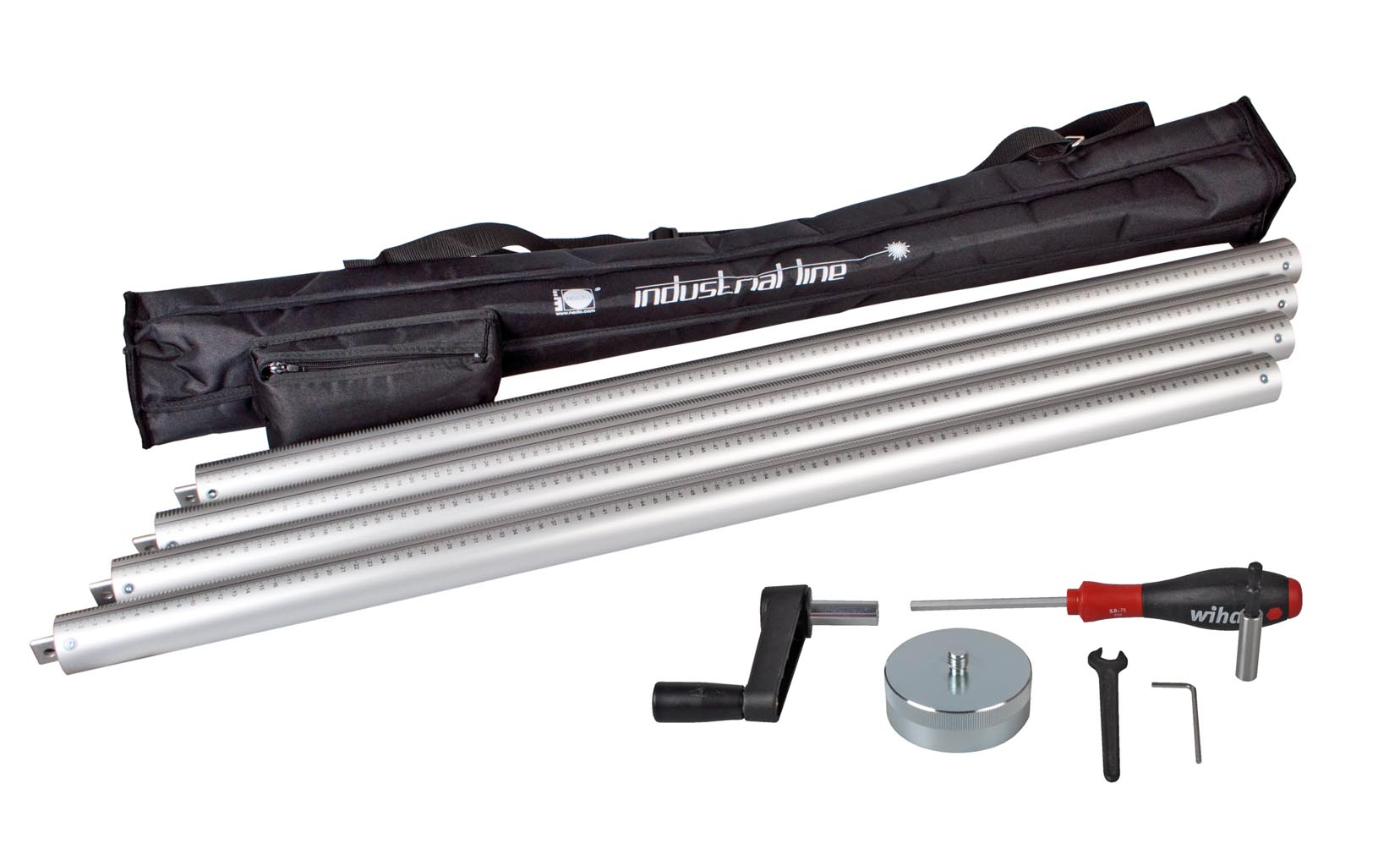

Industrial Line elevating tripod with 1 elevating rack element already installed, 4 extra rack elements (1 m each), 5 mm allen key, magnetic bit holder for cordless screwdriver, hand crank, 5/8’’ to 3/8’’ adaptor, combi shoes and carrying bag for 4 rack elements
Product Flyer
Product and application images

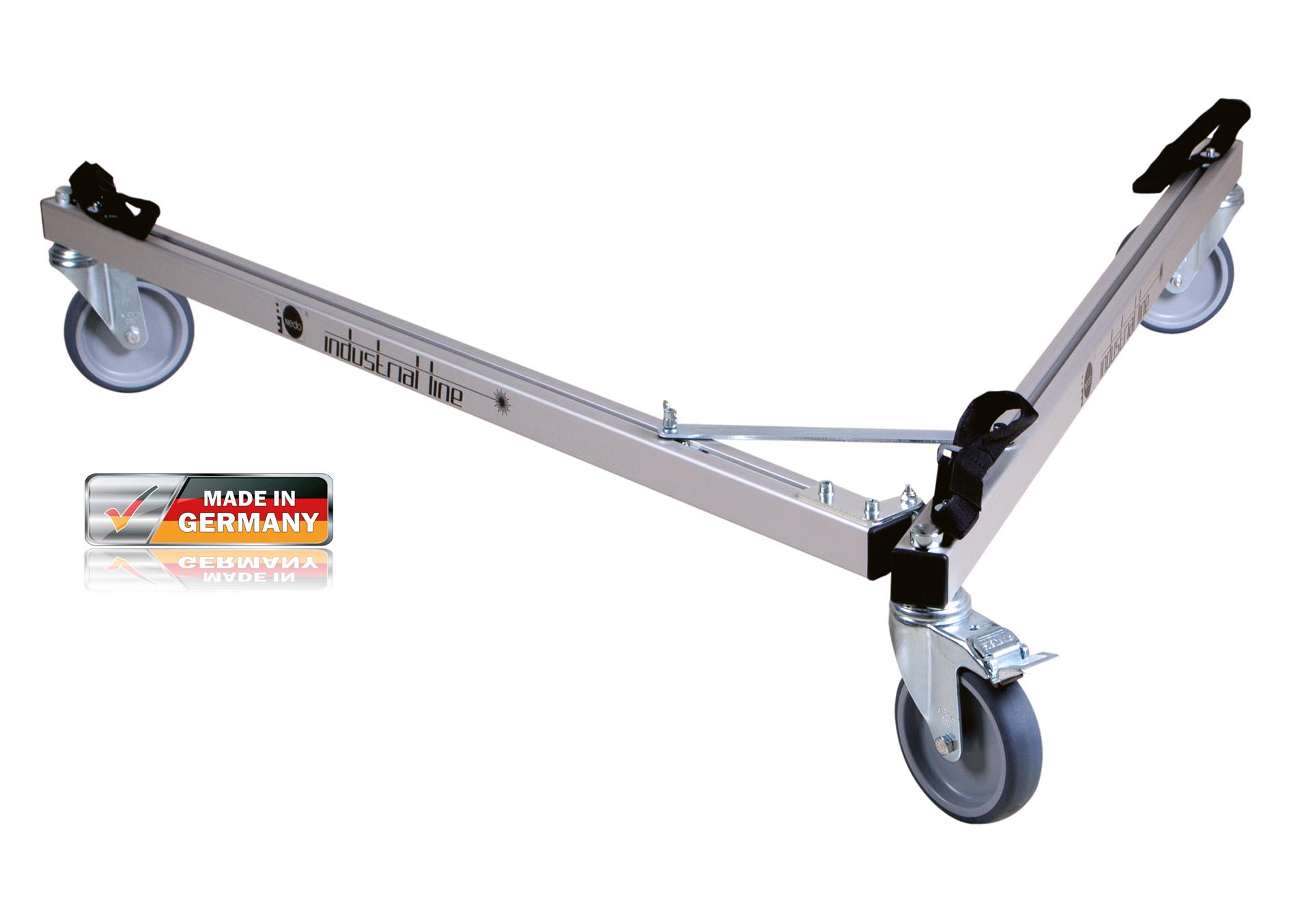

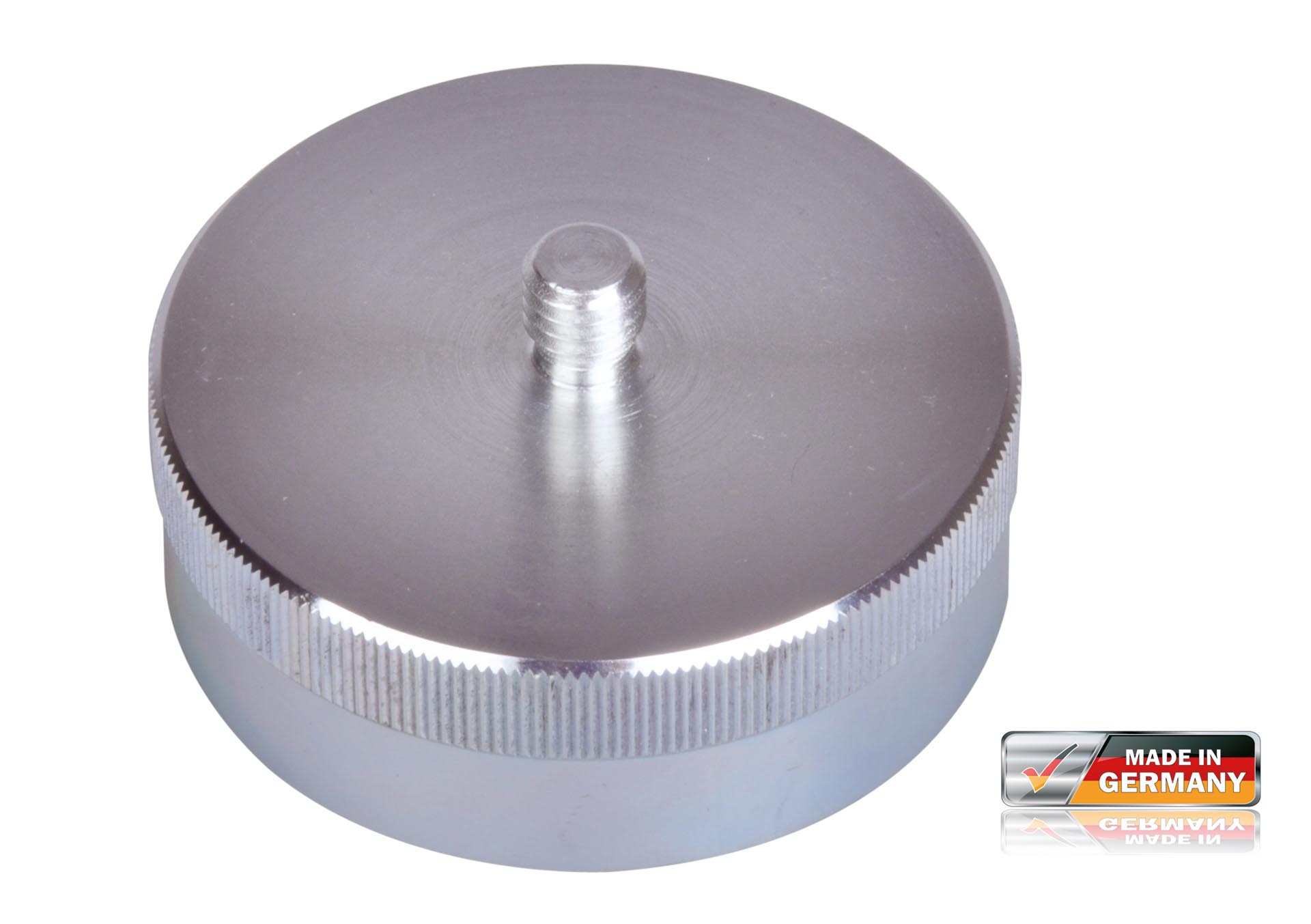

Optional accessories for Industrial Line Two Way Tripod
Adaptors for upside-down-use of 3D laser scanners with Industrial Line Elevating Tripods

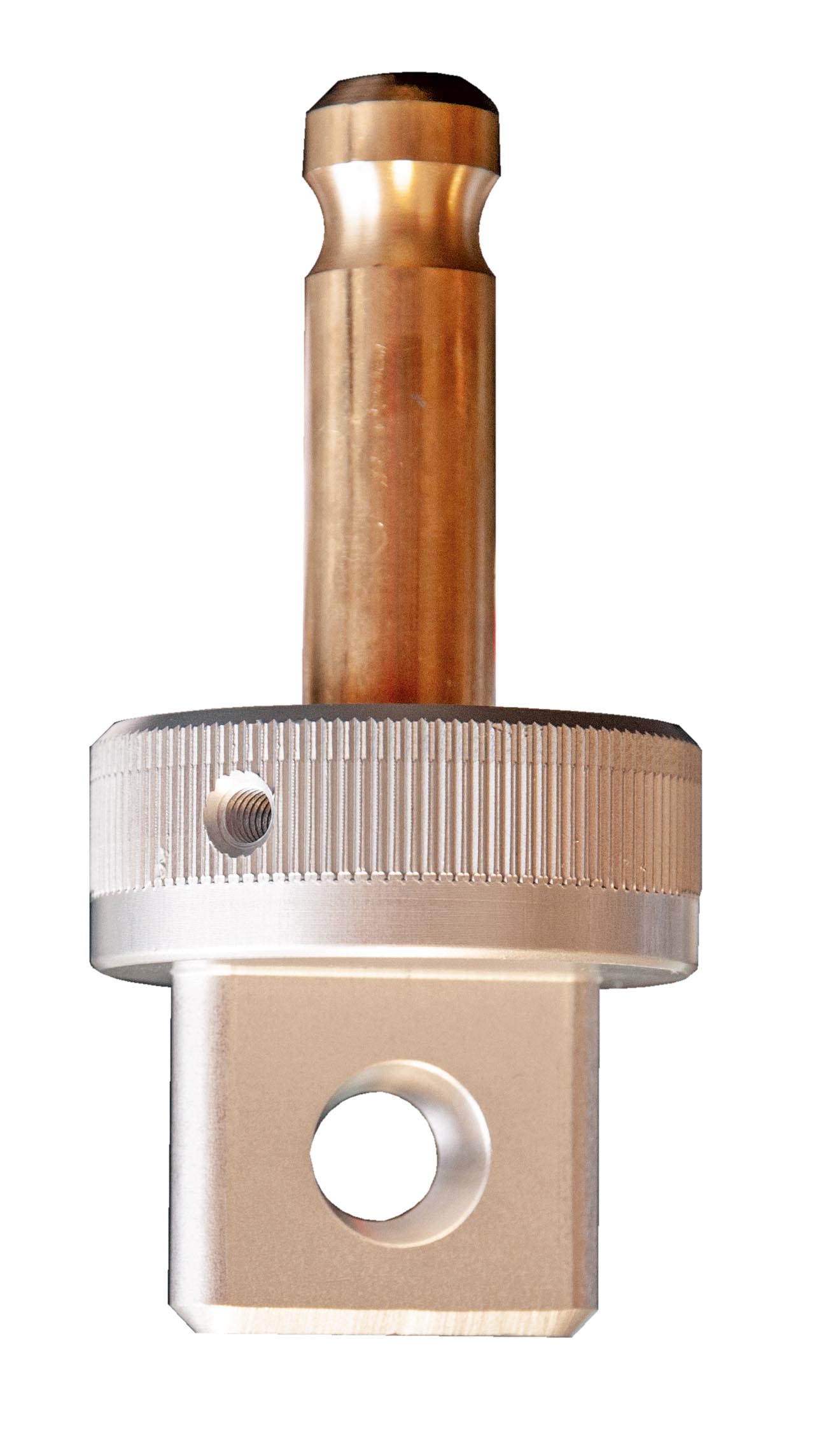

Depending on the weight, attaching a 3D laser scanner in upside-down mode underneath an Industrial Line Elevating Tripod, by means of the connection thread, can be a difficult job. To reduce the risk of dropping the instrument and to facilitate the set up, Nedo offers adaptors for upside-down use of various 3D laser scanners. The well thought adaptors consist of two components: the first component attaches to the elevating column, the second to the 3D laser scanner.
The wedge design shape with a dovetail grove ensures easy positioning of the scanner underneath the tripod; the safety button prevents the scanner from falling down accidentally. The retaining screw keeps the scanner in position. Including Allen key to attach adaptor to scanner.
Nedo Adapters for Laser Scanners
| Ref.-No. | |
| 660040 | Adapter for Faro Focus 3D, X30, X130, X330, M70, S70, S150 and S350 |
| 660041 | Adapter for Leica HDS6200, HDS6100 and HDS7000 as well as Zoller and Fröhlich Imager 5010 |
| 660042 | Adapter for Leica Scanstation P20, P30 and P40 as well as Zoller and Fröhlich Imager 5016 |
| 660043 | Adapter for für TRIMBLE TX8 |
