Tripods for Machine Control Applications
The sturdy design of the Jumbo tripod allows vibration-free use of the machine control laser, even in windy conditions. The large working height ensures that the laser beam does not lie in the shadow of construction vehicles or other obstacles. The reeinforced gear unit guarantees even when continuously used extra durability and less wear and tear. The indirect gear unit can easily move lasers to the required working height, even if they are heavy.

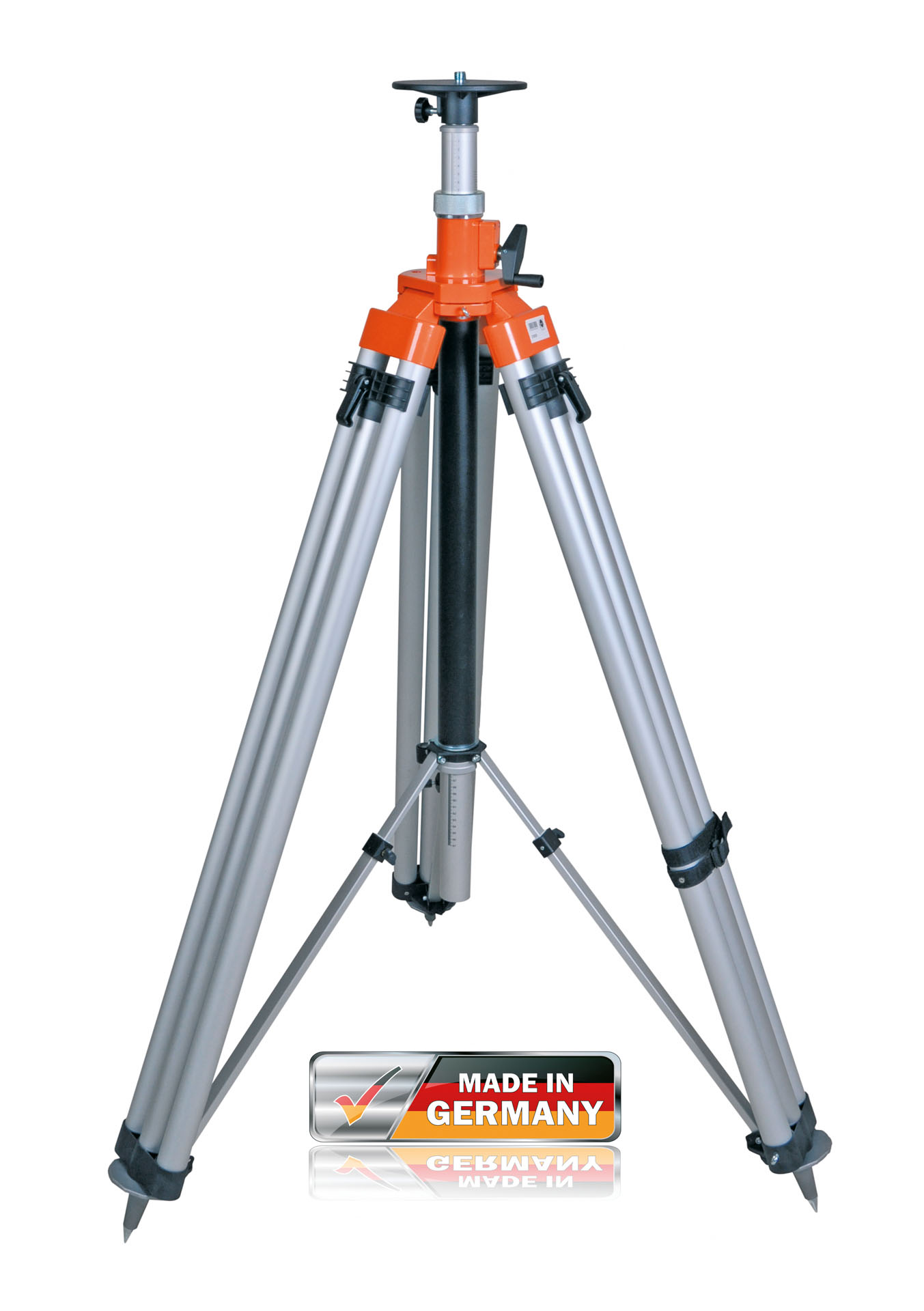

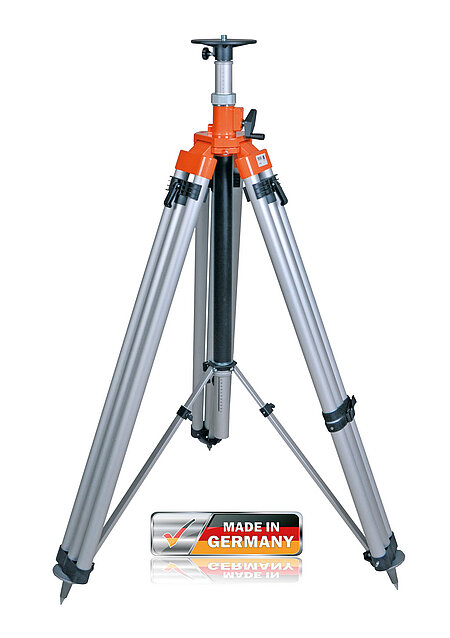

The Nedo Jumbo Tripod: the elevating tripod for heavy-duty machine control lasers.
Features:
- Extra heavy-duty “Jumbo” design
- Indirect gear unit, reinforced, for easy handling and less wear and tear
- Twist-proof, reinforced elevating column with centric clamping
- Extra large tripod plate, Ø 6.5“, made of aluminum, powder-coated
- Additional leg struts for extra stability
- Inch and mm scale on elevating column
- Circular bubble
- Strong reinforced aluminum extension legs, silver anodized
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
- Rubber plates with ball joints available as an option
Tripods for Machine Control Applications

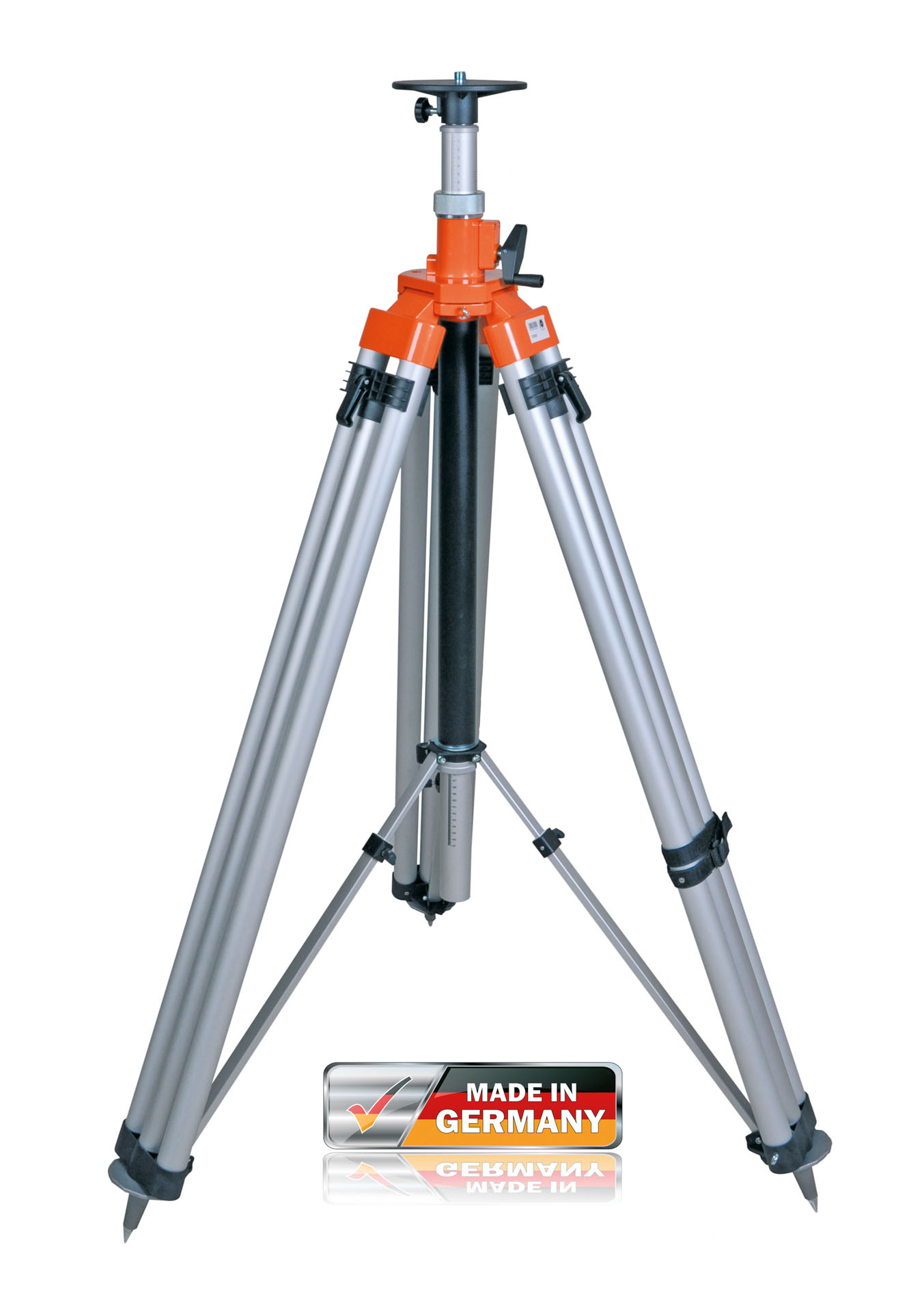

Tripod Ref.-No. 210540-185
Technical specifications:
- Min. effective height approx. 69’’ / 1.70 m
- Max. effective height approx. 160’’ / 4.00 m
- Retracted length approx. 78’’ / 1.90 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 38 lbs. 17.2 kg
- Tripod plate, Ø 6.5’’ / 167 mm
- Adjust. column range 36’’ / 908 mm

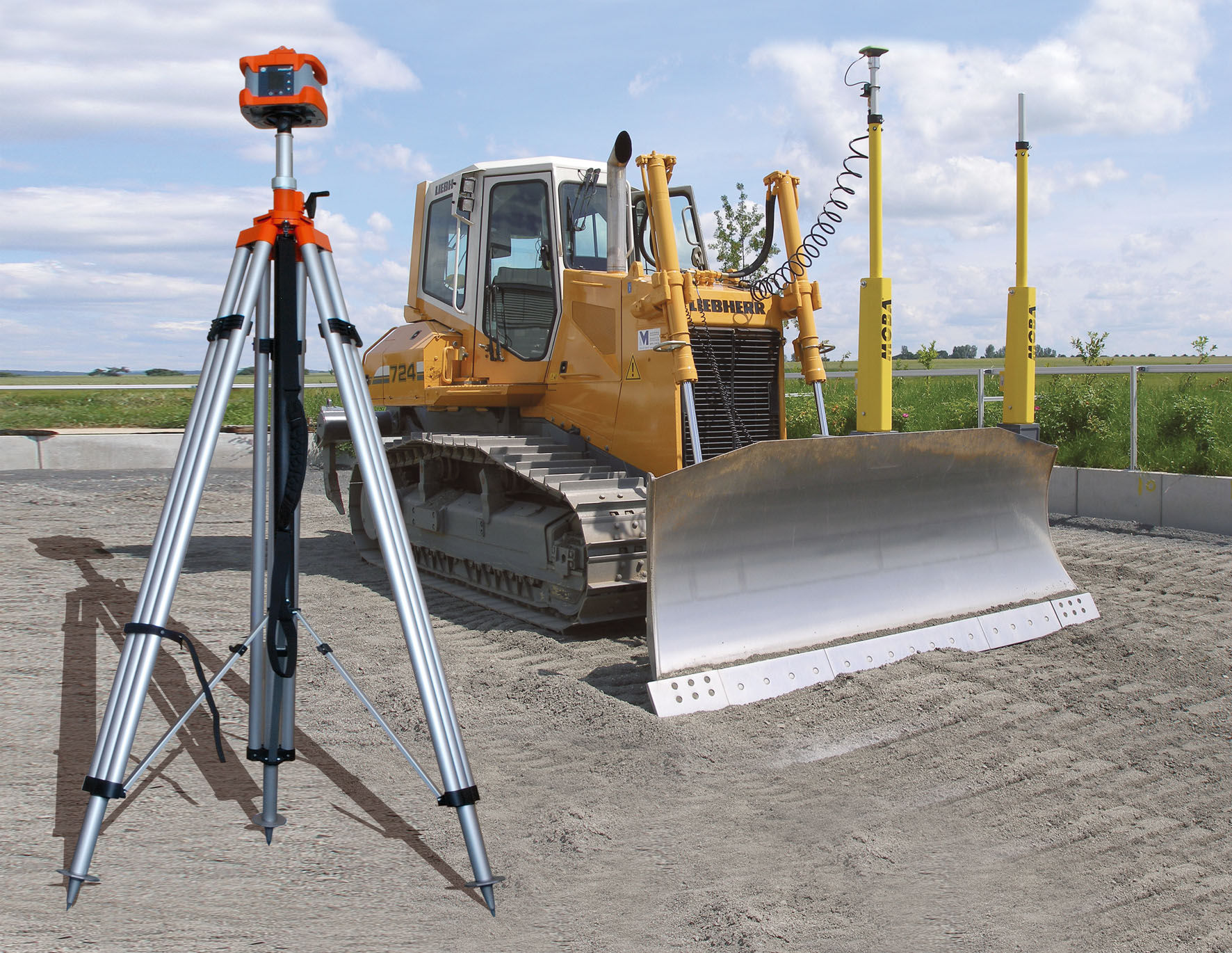

Product and application images
Optional Accessories for Machine Control Tripods

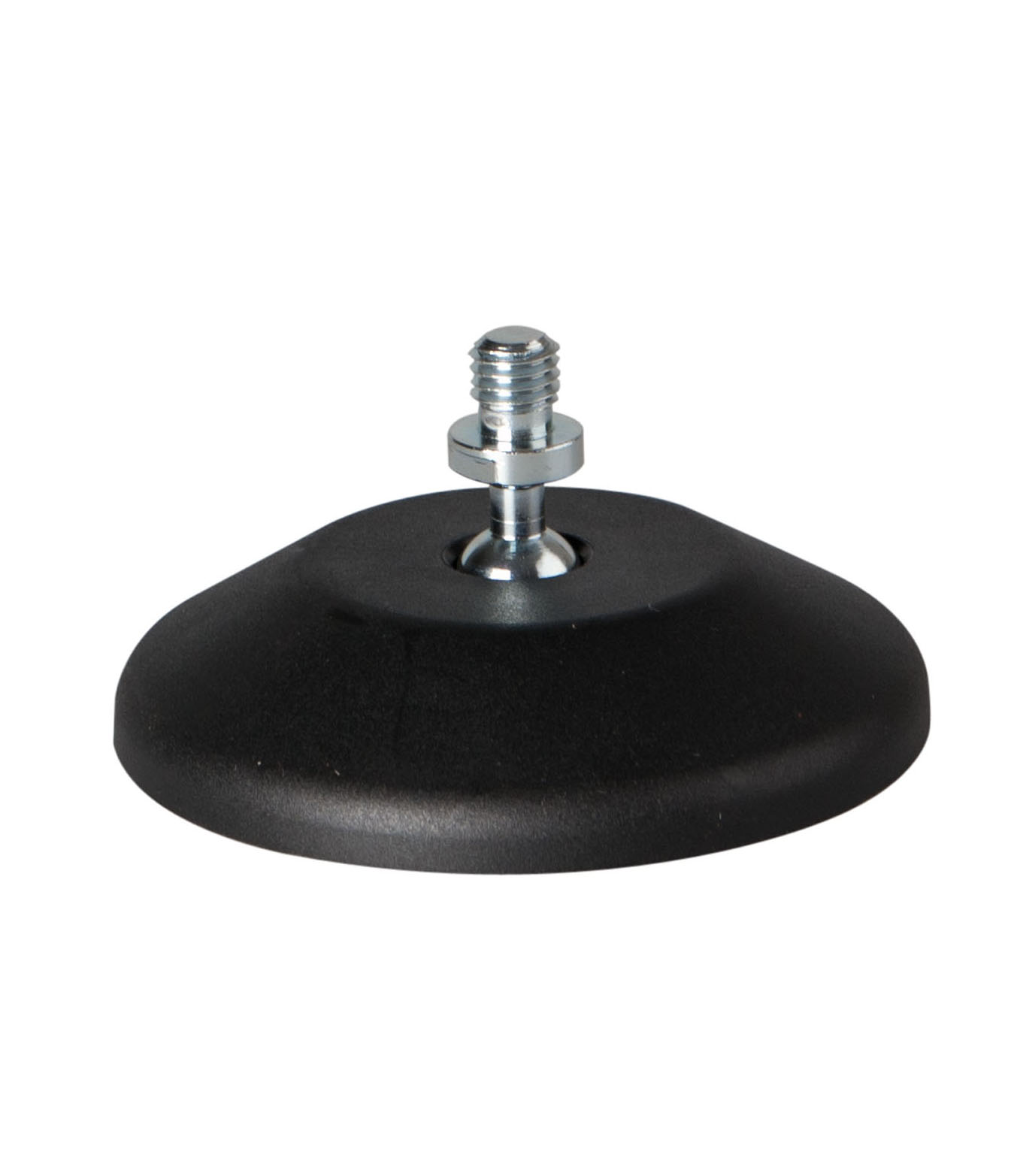

Gelenkteller Set
Bestell-Nr. 660 010
- Set of 3 Rubber Plates with ball joints. The rubber material ensures stability on slippery surfaces and prevents damage to sensitive floors.
Perfect for use with 3D laser scanners. Thread M10.
Suitable for:
210 530-185, 210 540-185, 210 443-185, 210 683-185, 210 678-185 and 210 710
