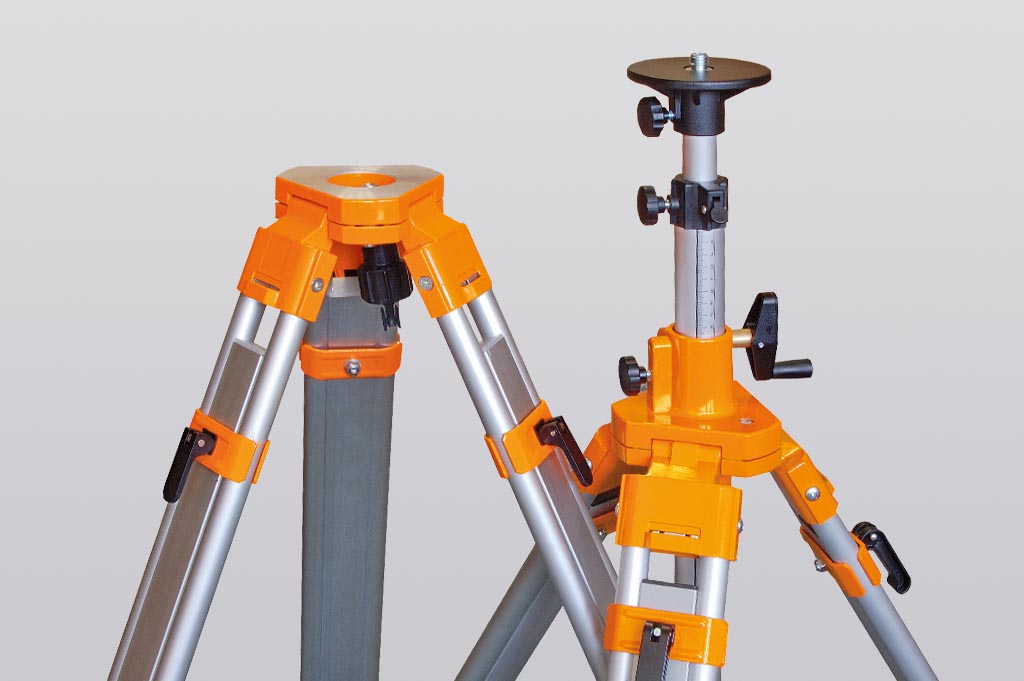

Standard or Elevating Tripod?
Nedo standard tripods without a crank mechanism are ideal for levelling tasks with builders’ levels or horizontal lasers. Nedo elevating tripods are recommended for applications that require an exact adjustment of the construction laser to a certain working height, e.g. in ceiling construction and other installation work. The desired working height, even of heavy-duty rotating lasers, can be adjusted quickly with Nedo elevating tripods.

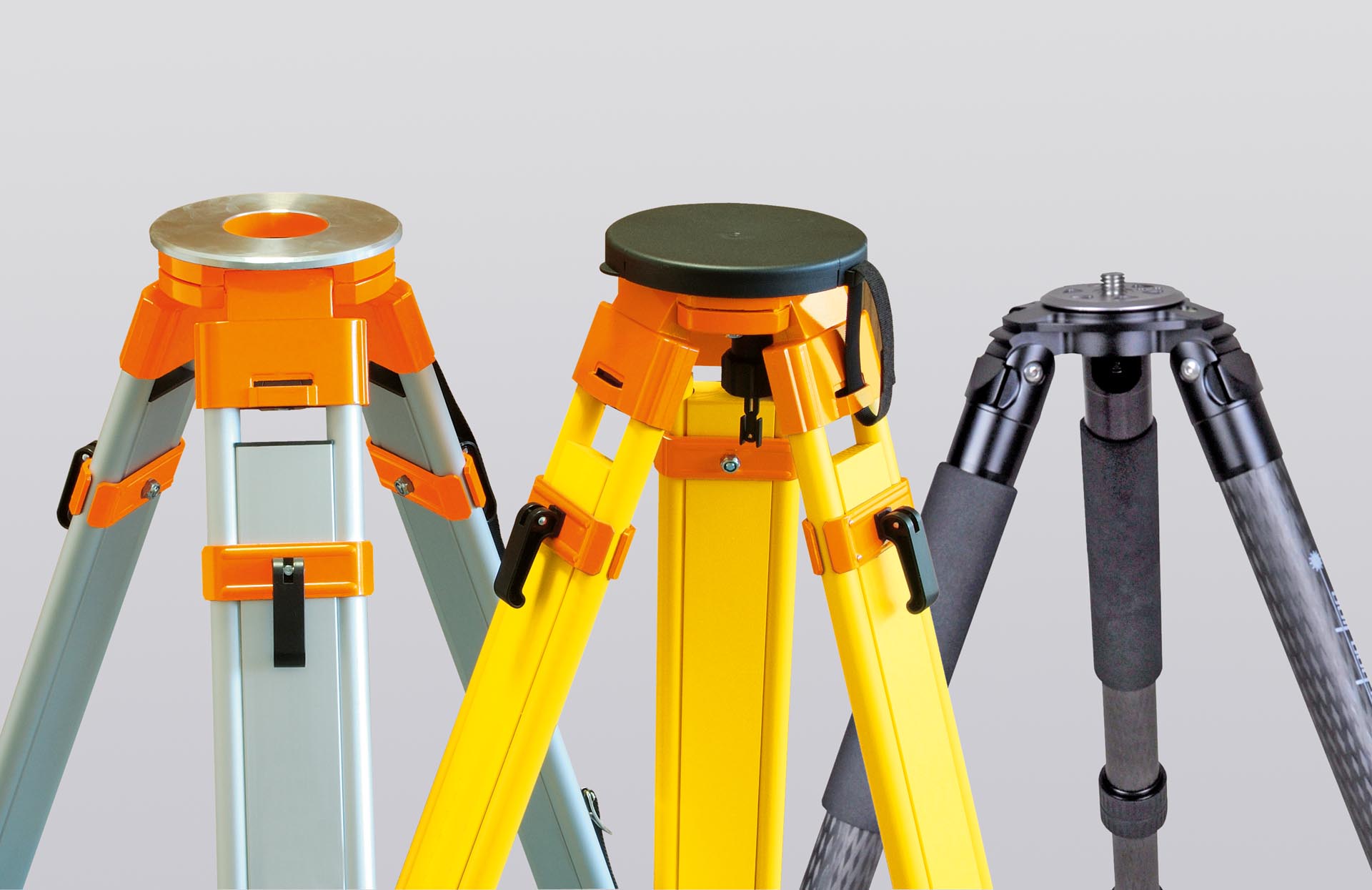

Aluminium, Wood or Carbon?
Nedo aluminum tripods are lightweight, extremely robust and rigid. They are suitable for the use with builders’ levels, rotating lasers and theodolites.
Surveyors however, prefer wooden tripods for high-precision instruments such as total stations, robotic total stations or digital levels.
Wooden tripods feature a better damping behaviour and are less affected by temperature changes than aluminum tripods. The wooden parts of all Nedo wooden tripods are coated with a high-tech plastic material to protect them against moisture. This ensures that Nedo wooden tripods are extremely weatherproof, robust and durable.
When it comes to highly mobile 3D laser scanners weight becomes an important feature. Thanks to extremely lightweight carbon composite materials the new Nedo Carbon Line Tripod combines extremely low weight with unmatched stability.
No matter what material Nedo tripods are made of, they set standards for stability, reliability and robustness.

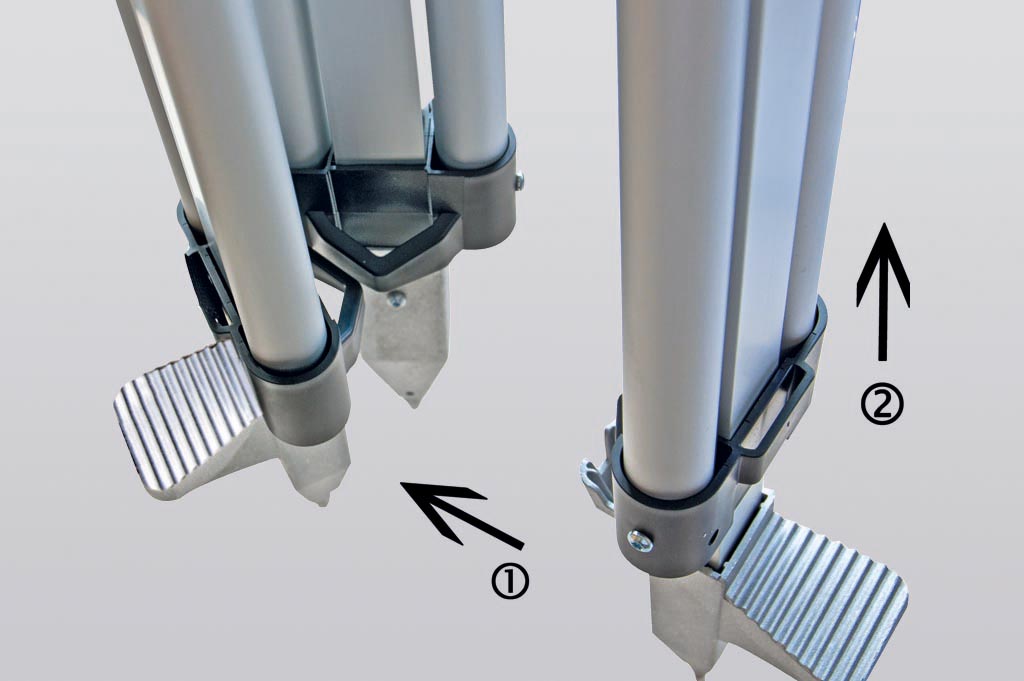

Strapless-Go
Many light and medium-weight Nedo aluminium tripods and elevating tripods are equipped with the new Strapless-Go leg locking system without a strap. The tripod legs snap together automatically when they are pushed in. It’s quick and convenient. No more troublesome strapping to hold legs in place for transport.
To release the lock, simply pull out the leg with the printed marking. The legs immediately unlock and you can set up the tripod.

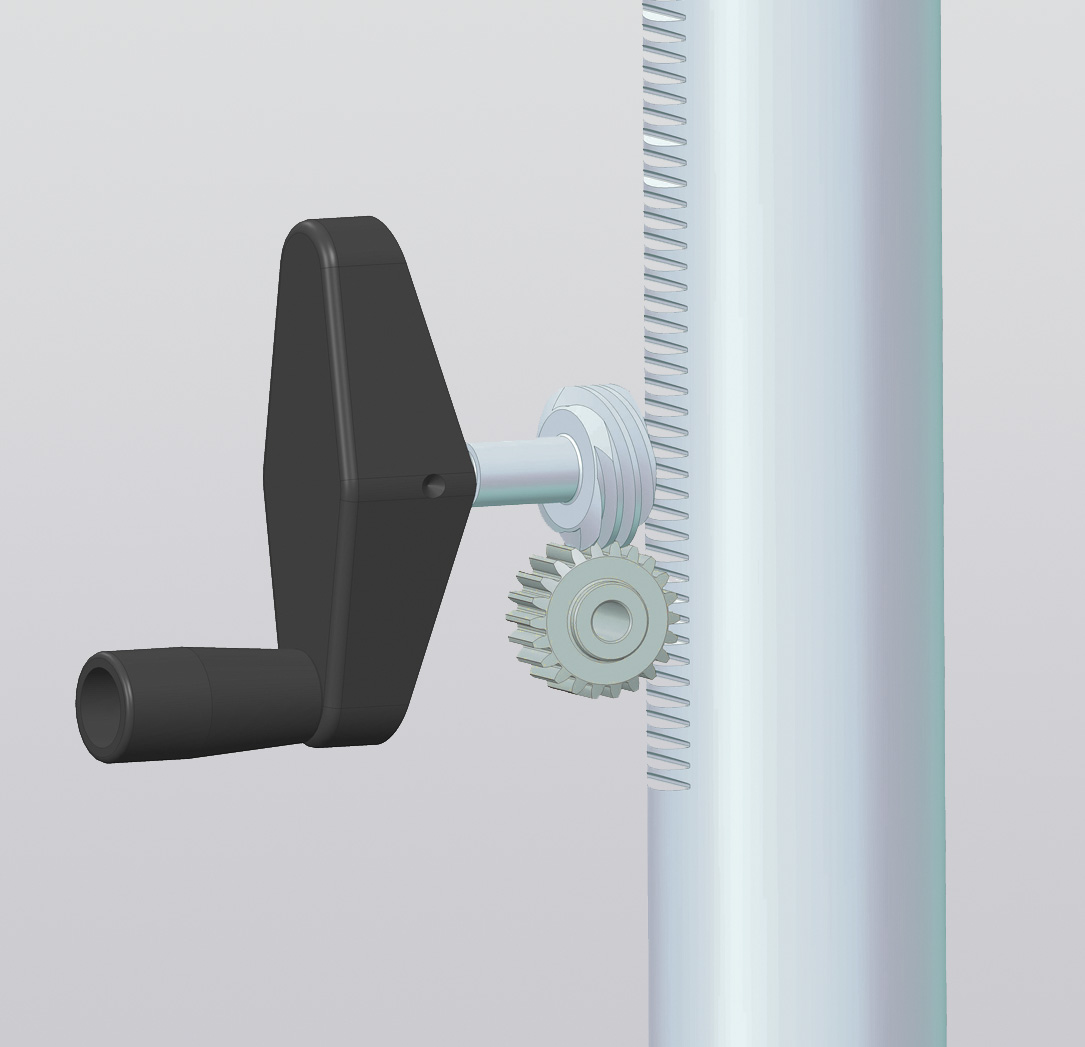

All Elevating Tripods are equipped with Indirect Gear
All Nedo elevating tripods are equipped with an indirect gear unit. A reduction gear in between the crank and the toothed rack allows for maximum convenience to set up even heavy rotating lasers at the desired working height. Furthermore the reduction gear unit prevents any unintended descent of the laser when the locking screw is released.
Details Which Matter
Sometimes little things make the difference.
Nedo tripods feature the following details, which matter on the job:

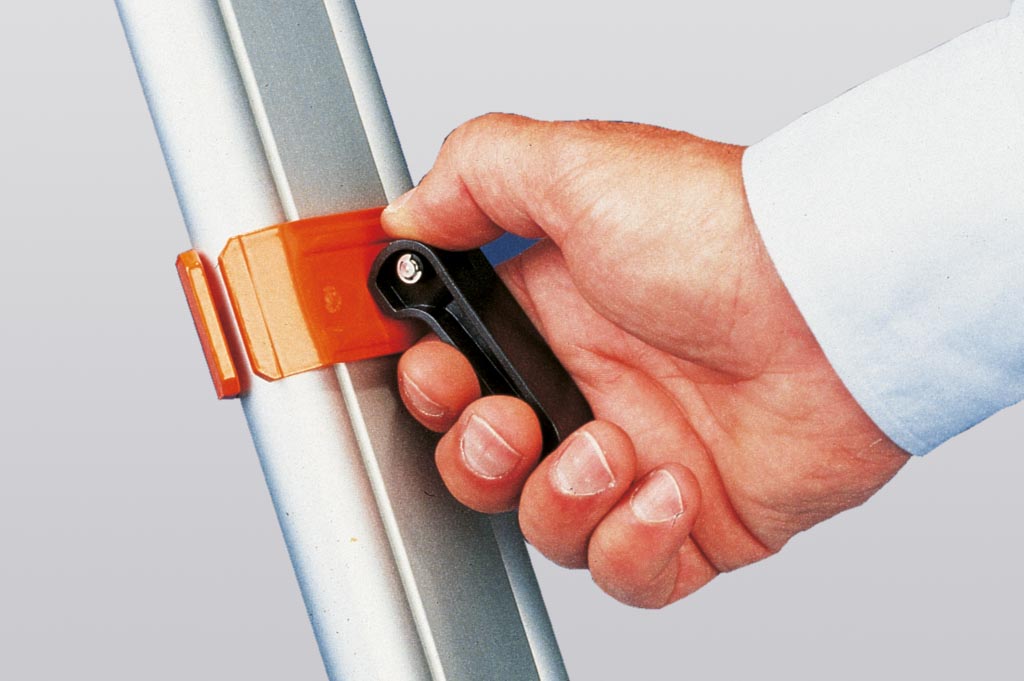

- Break proof quick release levers: perfect for the use under tough conditions
- Brass hinge pins: robust and reliable

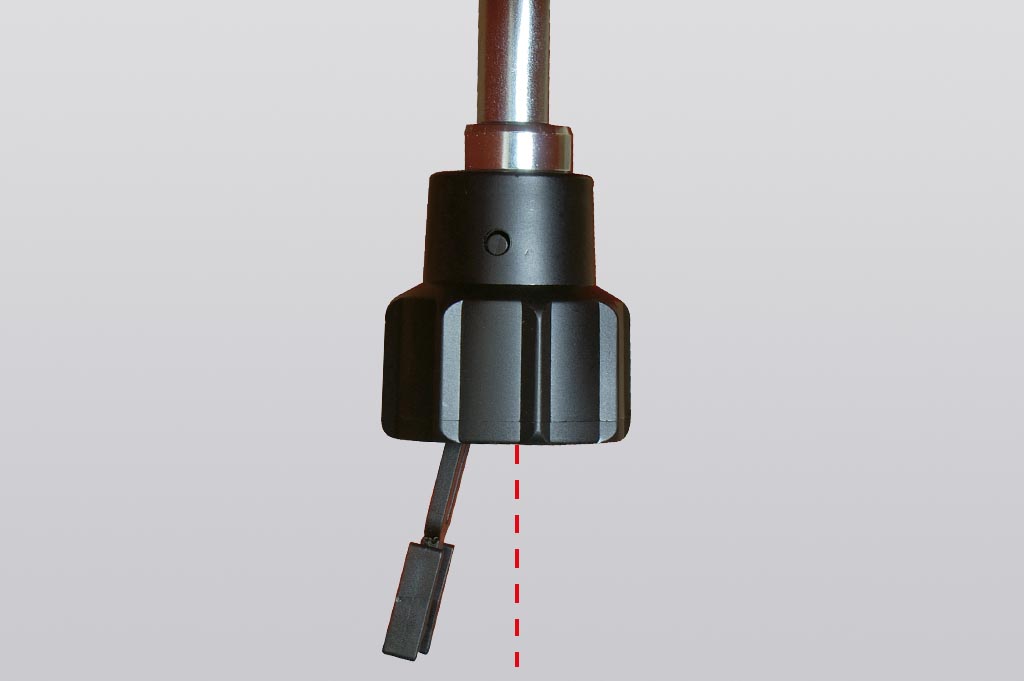

- Retaining screw with plumb bob hook that folds away to the side and snaps in place: perfect for the use of an optical or a laser plummet
- Nedo tripods for indoor use are equipped with a slip guard that prevents the tripod legs from spreading on slippery floors.
