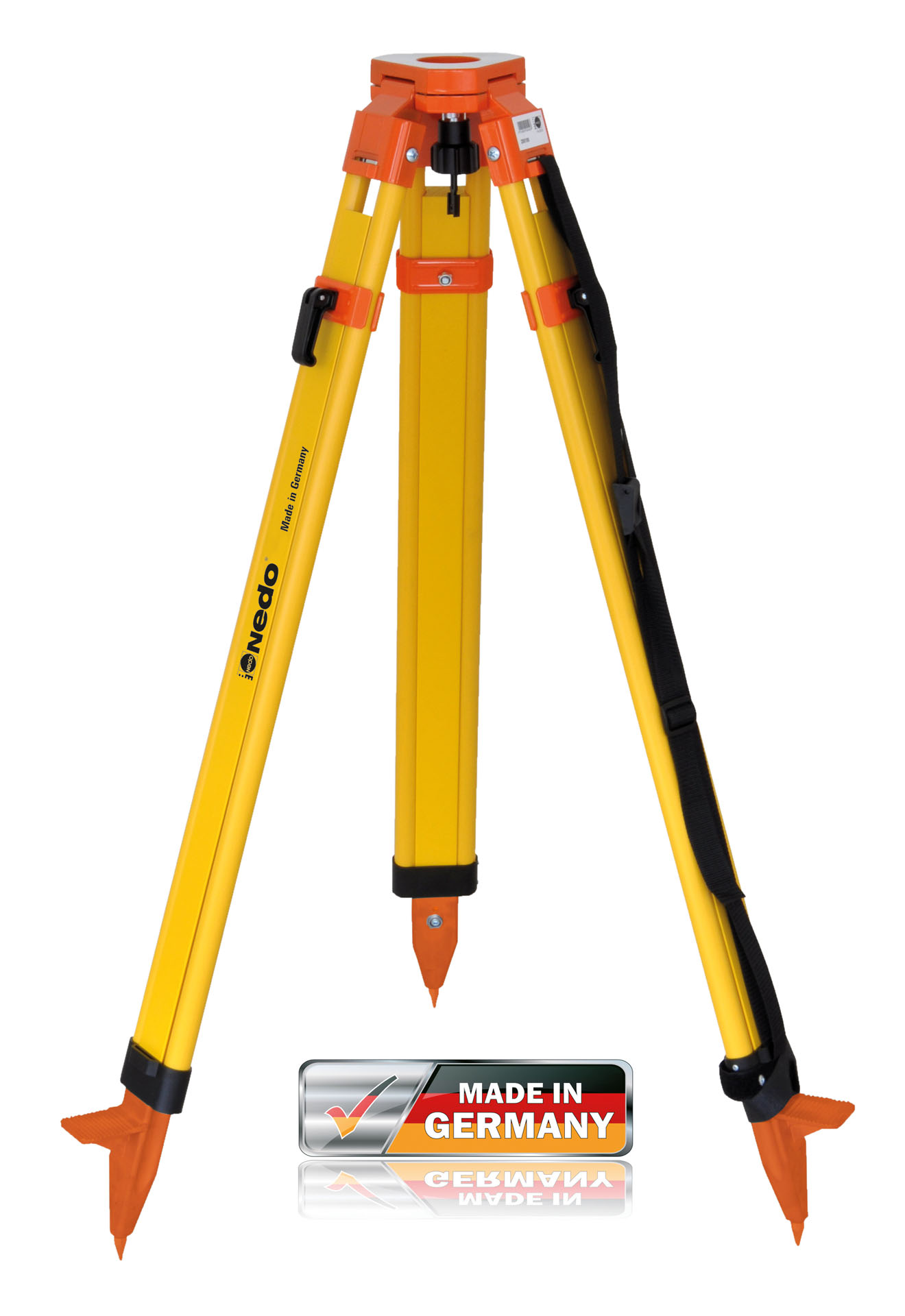

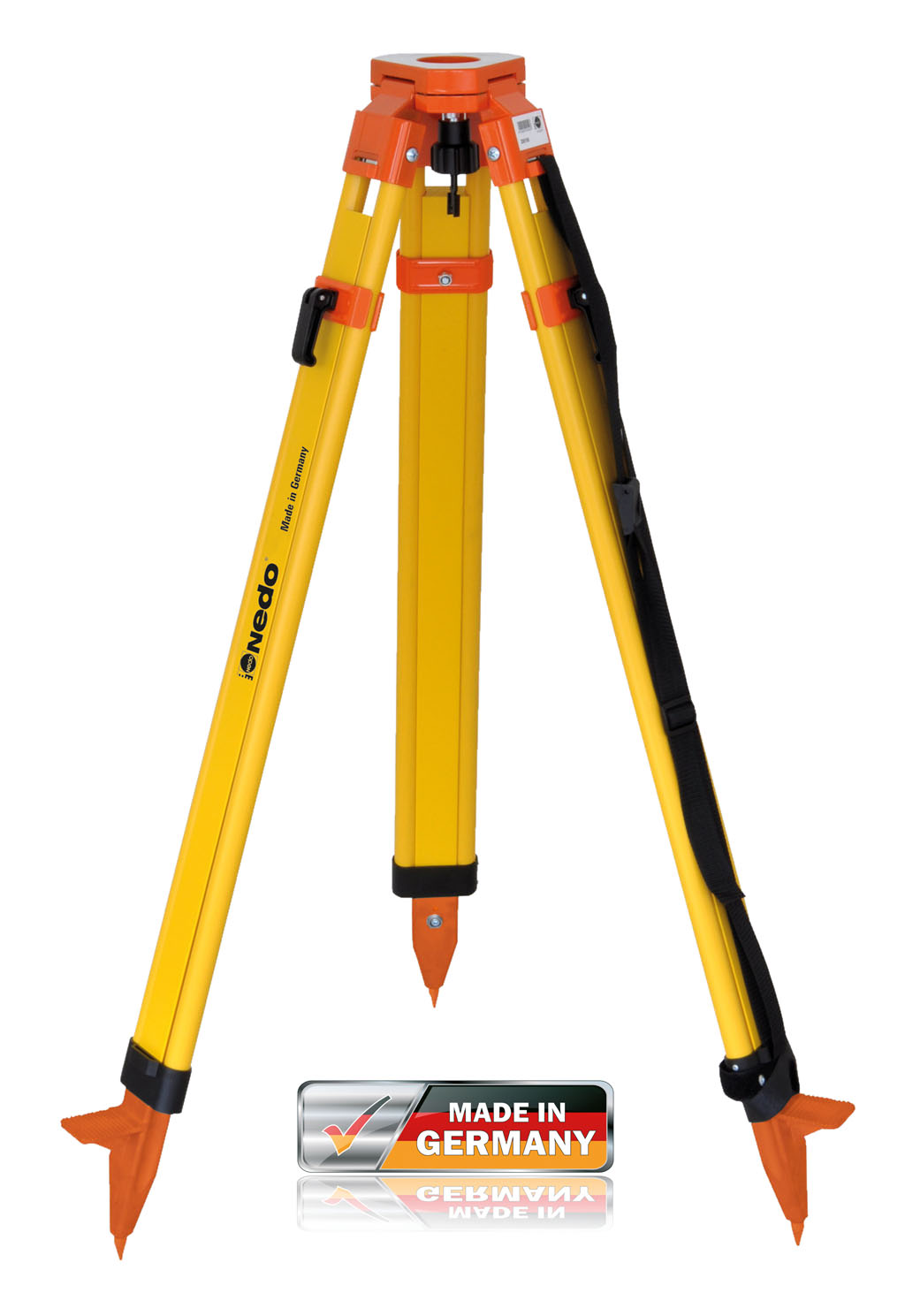

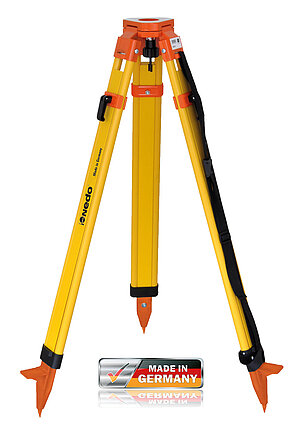

Heavy-Duty and Fixed Leg Tripods
Technical data:
- Min. effective height approx. 40’’ / 1.02 m
- Max. effective height approx. 65’’ / 1.65 m
- Retracted length approx. 43’’ / 1.09 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 12 lbs. / 5.40 kg
- Tripod head flat, Ø 5.5’’ / 140 mm
Features:
- Wooden parts made of finest European hard wood
- Plastic-coated wooden legs for utmost durability
- Tripod head made of aluminum, powder-coated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
- Carrying strap
- In accordance with ISO 12858-2-LF
Suitable for:
- Digital levels
- Builders’ levels
- Theodolites
- Total stations
Tripod Ref.-No. 200100-185

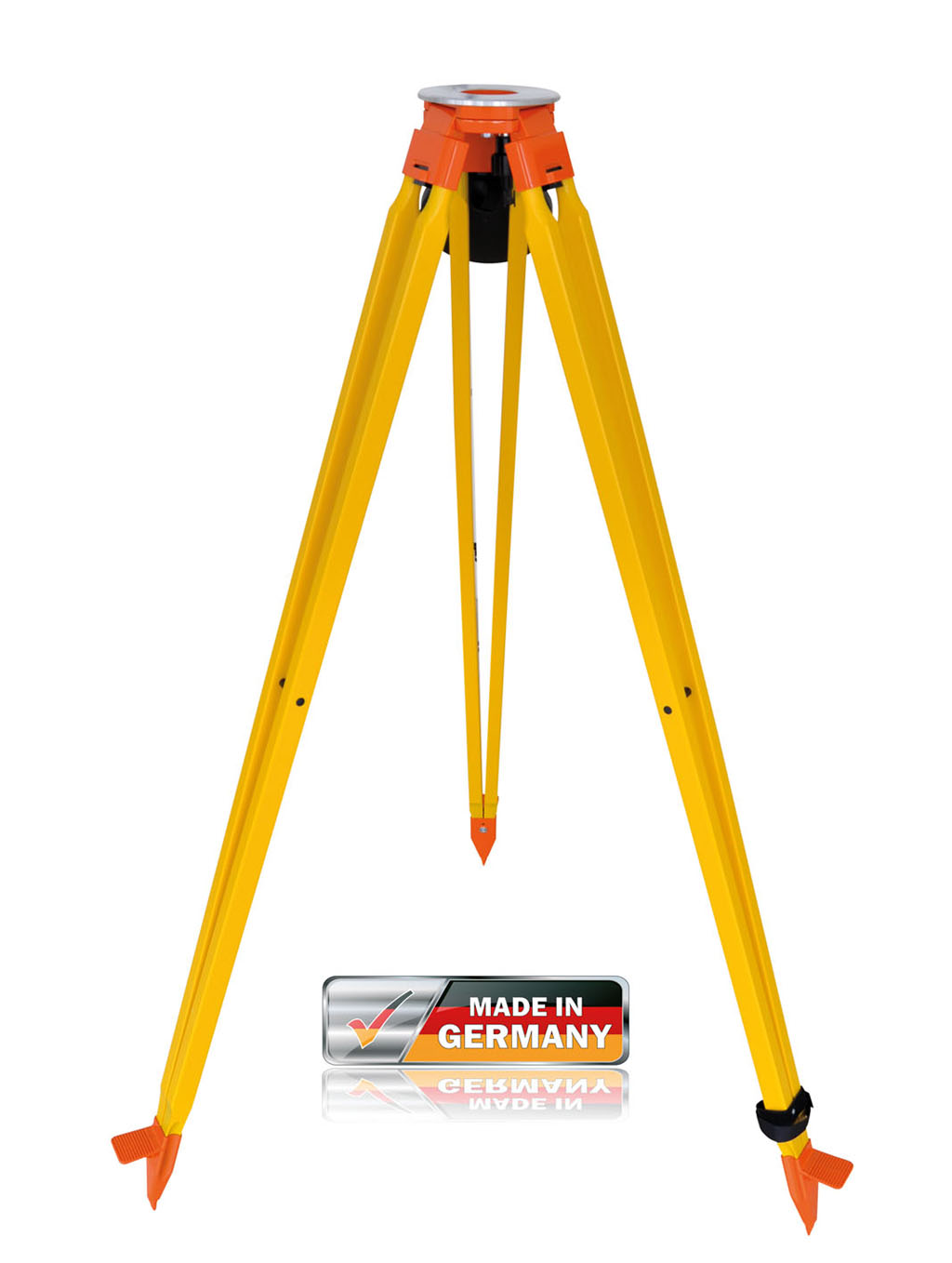

Technical data:
- Min. effective height approx. 60’’ / 1.53 m
- Max. effective height approx. 63’’ / 1,63 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 15 lbs. / 6.70 kg
- Tripod head flat, Ø 6.5’’ / 167 mm
Features:
- Wooden parts made of finest European hard wood
- Plastic-coated wooden legs for utmost durability
- Large round tripod head made of aluminum, powder-coated
- Snap Cap
- Fixed legs for first order leveling applications
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
Suitable for:
- Digital levels
- Theodolites
- Total stations
Tripod Ref.-No. 200511
