Nedo Builders’ Levels F-Series
Nedo F-Series levels feature first-class optics with 24x, 28x or 32x magnification, sturdy metal housing, a top-quality magnetic-damped compensator and a modern design. Just right for use under tough conditions.
Features:
- Automatic builders’ level with 24x, 28x or 32x magnification
- Bright optics with large objective aperture
- Sturdy, reliable magnetic-damped compensator
- Sturdy metal housing
- High-contrast image
- Inspection record
- Comes with plumb bob, adjusting pin and robust case
Nedo Builders’ Levels F-Series
| Type | F24 | F28 | F32 |
| Image | upright | upright | upright |
| Magnification | 24x | 28x | 32x |
| Clear objective aperture | 30 mm | 30 mm | 40 mm |
| Shortest focusing distance |
23.6'' 0.6 m |
23.6'' 0.6 m |
23.6'' 0.6 m |
| Multiplication factor | 100 | 100 | 100 |
| Compensator operating range | ± 15’ | ± 15’ | ± 15’ |
| Setting accuracy | ± 0.5’’ | ± 0.3’’ | ± 0.3’’ |
| Horizontal circle | 360° | 360° | 360° |
| Sensivity of circular bubble |
8'/0.08'' 8’/2 mm |
8'/0.08'' 8’/2 mm |
8'/0.08'' 8’/2 mm |
| Standard deviation per km double-run levelling | ± 2.5 mm | ± 2.0 mm | ± 1.5 mm |
| Protection class | IP 54 | IP 54 | IP 54 |
| Weight |
2.8 lbs 1.26 kg |
2.8 lbs 1.26 kg |
2.8 lbs 1.26 kg |
| Connecting thread | 5/8’’ x 11 | 5/8’’ x 11 | 5/8’’ x 11 |
| Ref.-No. | 460778-613 | 460796-613 | 460798-613 |
Nedo Builders’ Levels F-Series
Nedo Builders’ Levels F-Series
- Automatic builders' level
- Plumb bob
- Adjusting pin

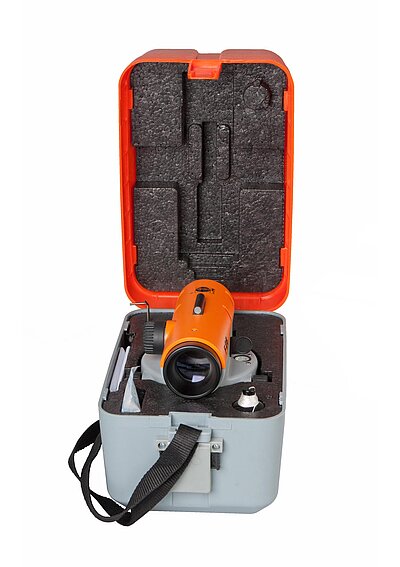

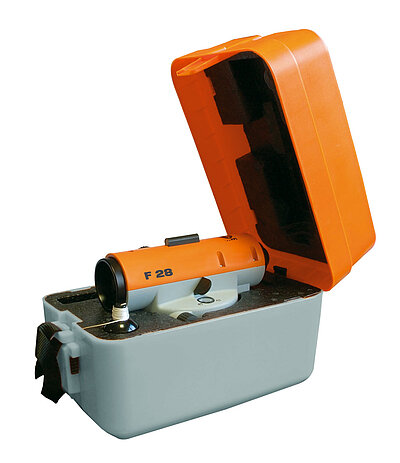

- Transport case
Ref.-No. F24 Builders' level 460778-613

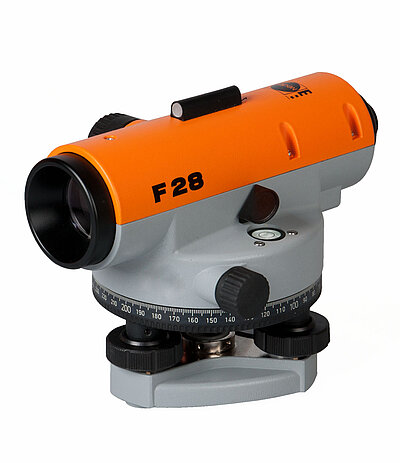

Ref.-No. F28 Builders' level 460796-613
Ref.-No. F32 Builders' level 460798-613
Product Flyer

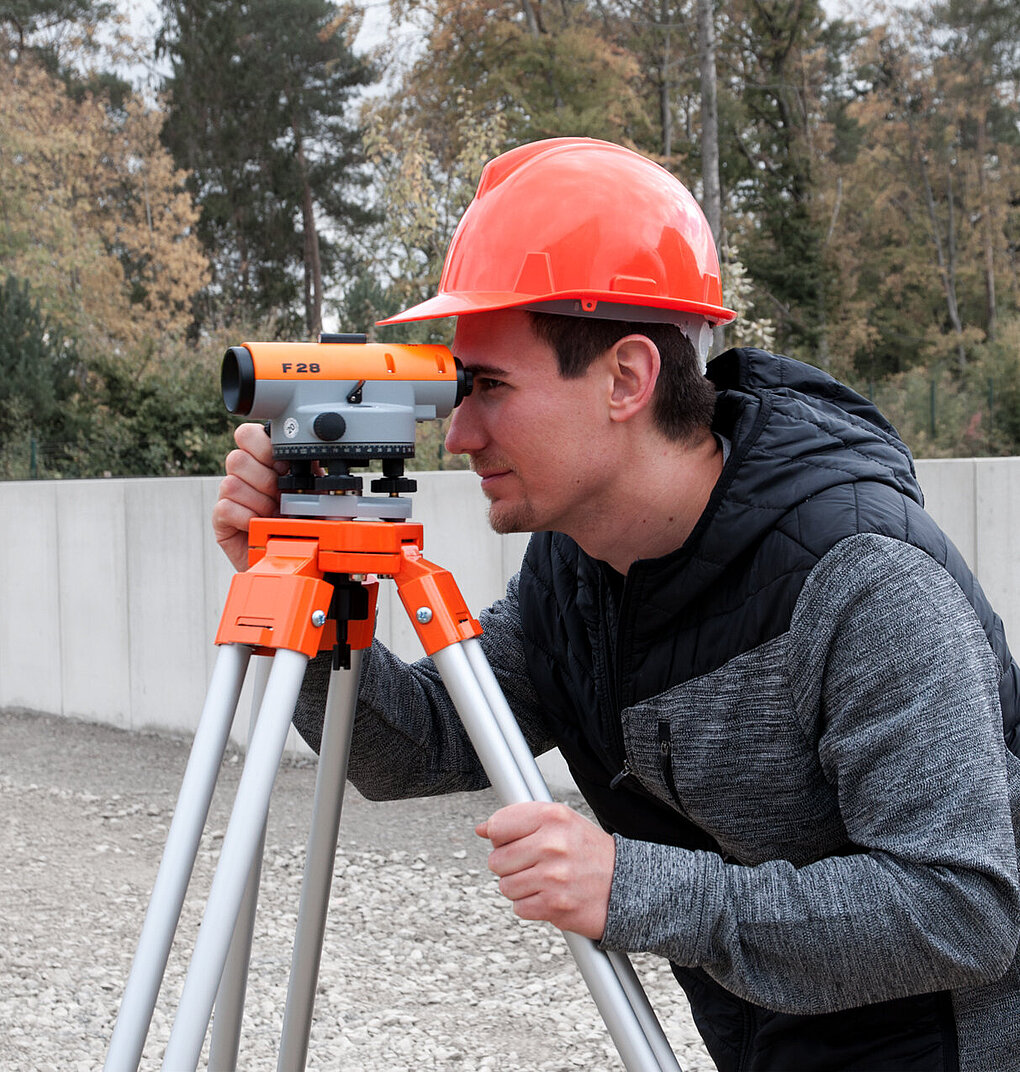

Product and application images
