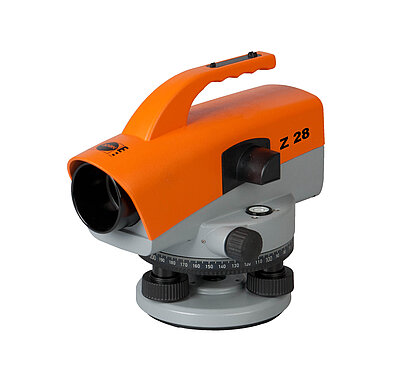

Nedo Engineers’ Levels Z-Series
Nedo Z-Series levels are premium engineers’ levels that meet the most exacting demands. The levels in this series have an especially large aperture to provide plenty of light-gathering power, a rugged, air-damped compensator and a jet-water proof metal housing conforming to protection class IP X6. Perfect for extreme conditions like dust and rain.
Features:
- Automatic engineers’ level with 32x magnification
- Bright optics with large objective aperture
- Sturdy, reliable air-damped compensator
- Sturdy metal housing
- Jet water and dust proof; IP X6
- High-contrast image
- Inspection record
- Comes with plumb bob, adjusting pin and robust case
Nedo Engineers’ Levels Z-Series
| Type | Z32 |
| Image | upright |
| Magnification | 32x |
| Clear objective aperture | 36 mm |
| Shortest focusing distance |
25.6'' 0.65 m |
| Multiplication factor | 100 |
| Compensator operating range | ± 15’ |
| Setting accuracy | ± 0.3’’ |
| Horizontal circle | 360° |
| Sensitivity of circular bubble |
8'/0.08'' 8’/2 mm |
| Standard deviation per km double-run levelling | ± 1.0 mm |
| Protection class | IP X6 |
| Weight |
3.8 lbs 1.75 kg |
| Connecting thread | 5/8’’ x 11 |
| Ref.-No. | 460758-185 |
Nedo Engineers’ Levels Z-Series
Nedo Engineers’ Levels Z-Series
- Automatic engineers' level
- Plumb bob
- Adjusting pin

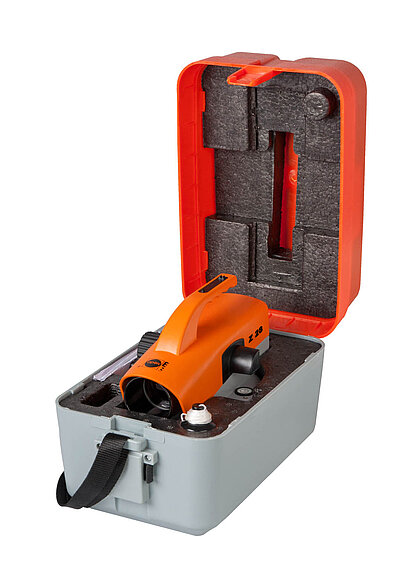

- Transport case
Ref.-No. Z32 Engineers' level 460758-185
Product Flyer

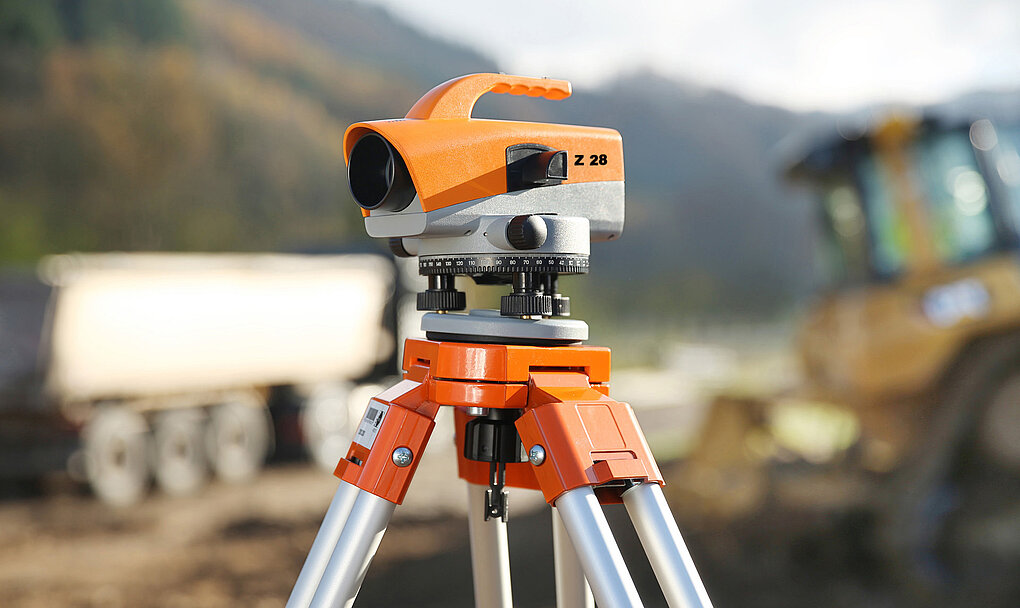

Product and application images
