Heavy-Duty and Surveyors’ Grade Aluminum Tripod
Technical data:
- Min. effective height approx. 35’’ / 0.91 m
- Max. effective height approx. 66’’ / 1.70 m
- Retracted length approx. 42’’ / 1.00 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 8 lbs. / 3.6 kg
- Tripod head flat, Ø 5.5’’ / 140 mm
Features:
- Strong aluminum extension legs, silver anodized
- Tripod head made of aluminum, powdercoated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum
- Carrying strap
- Strapless-Go: Retract-and-go transport locking system
Suitable for:
- Builders’ levels
- Rotating lasers
- Theodolites

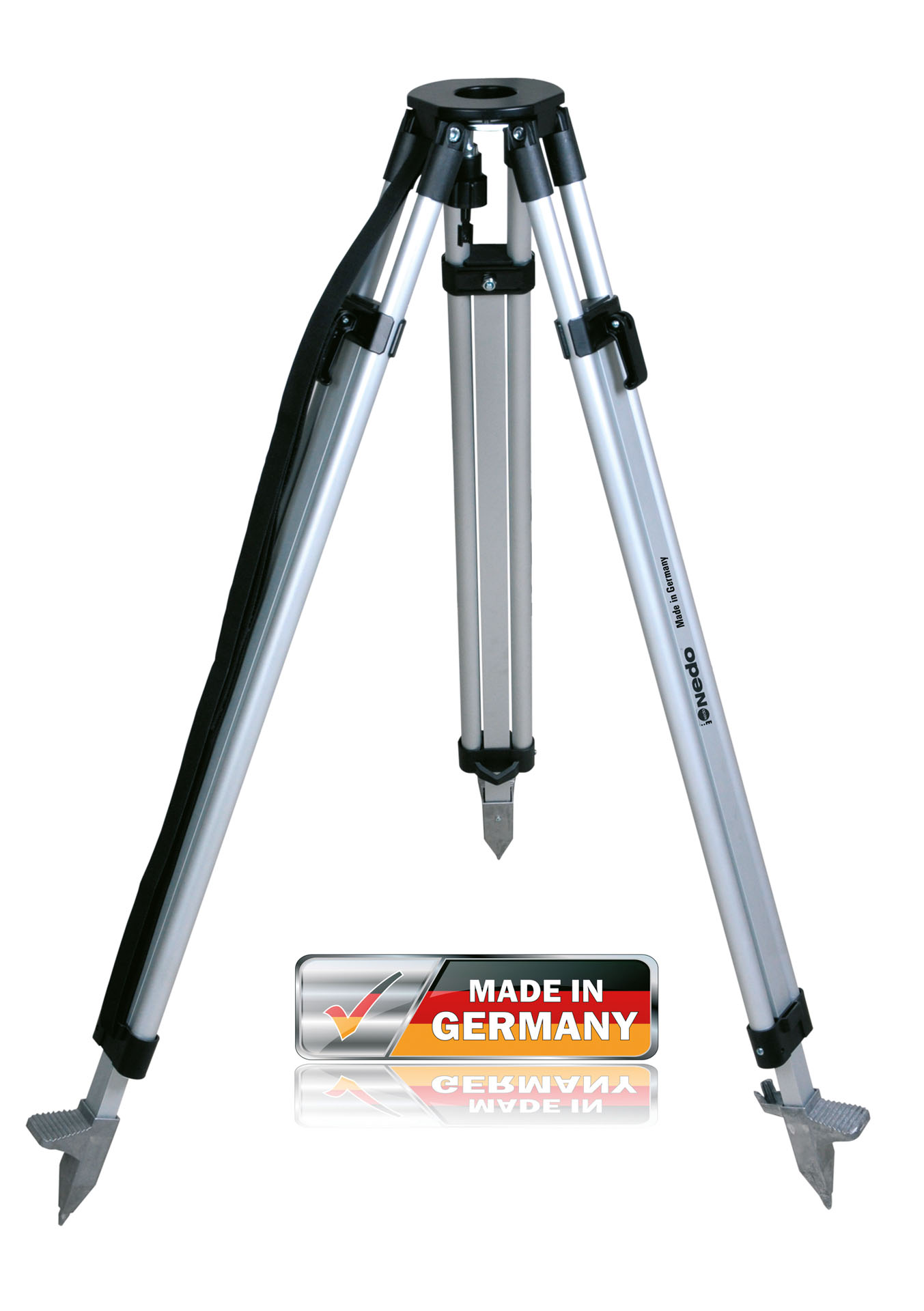

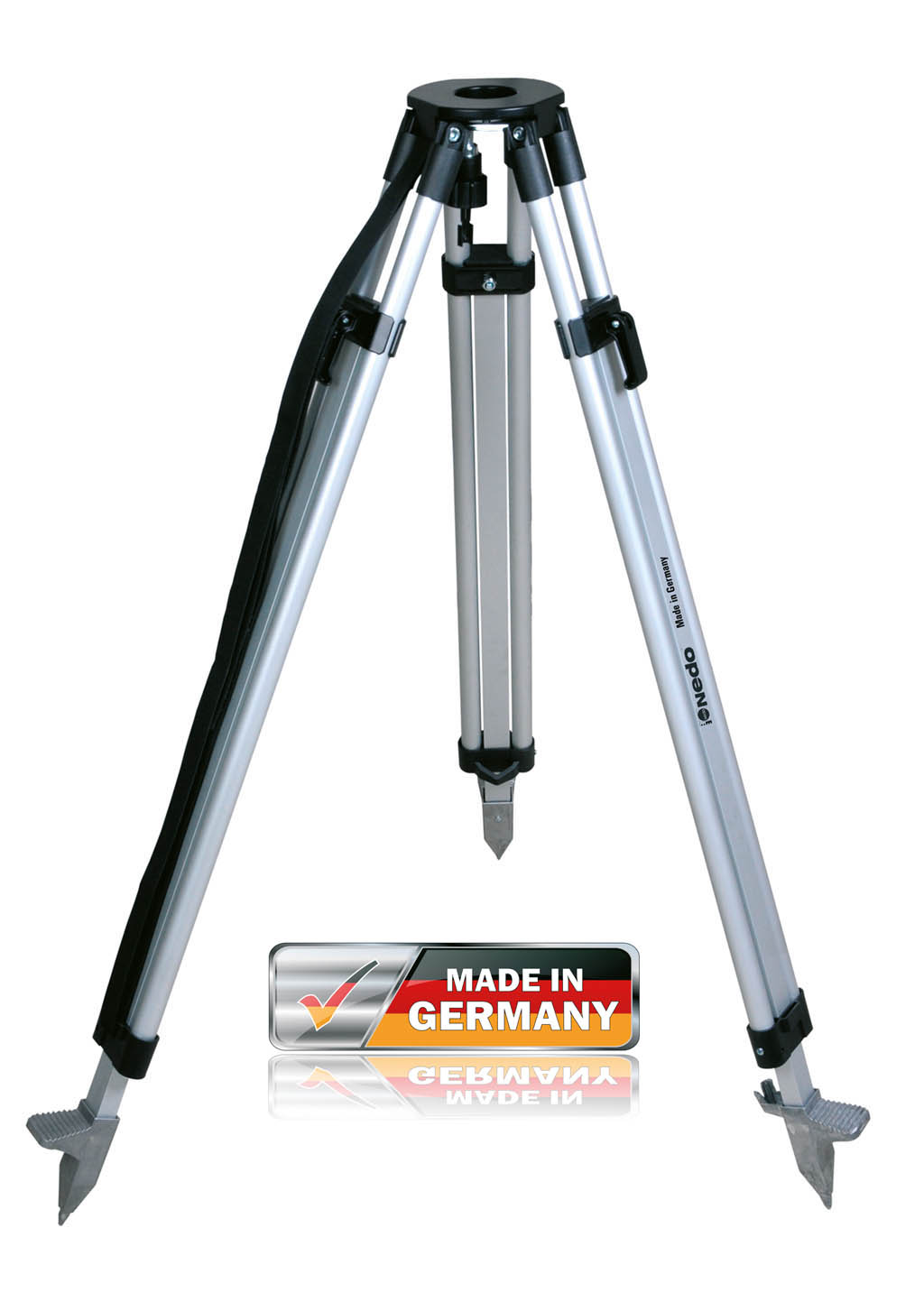

Heavy-Duty Aluminum Tripod with Quick Clamp
Ref.-No. 200225
Technical data:
- Min. effective height approx. 43’’ / 1.10 m
- Max. effective height approx. 68’’ / 1.70 m
- Retracted length approx. 45’’ / 1.10 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 11 lbs. / 5.00 kg
- Tripod head flat, Ø 5.5’’ / 140 mm
Features:
- Strong aluminum extension legs, silver anodized
- Tripod head made of aluminum, powdercoated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
- In accordance with ISO 12858-2-LF
Suitable for:
- Builders’ levels
- Rotating lasers
- Theodolites

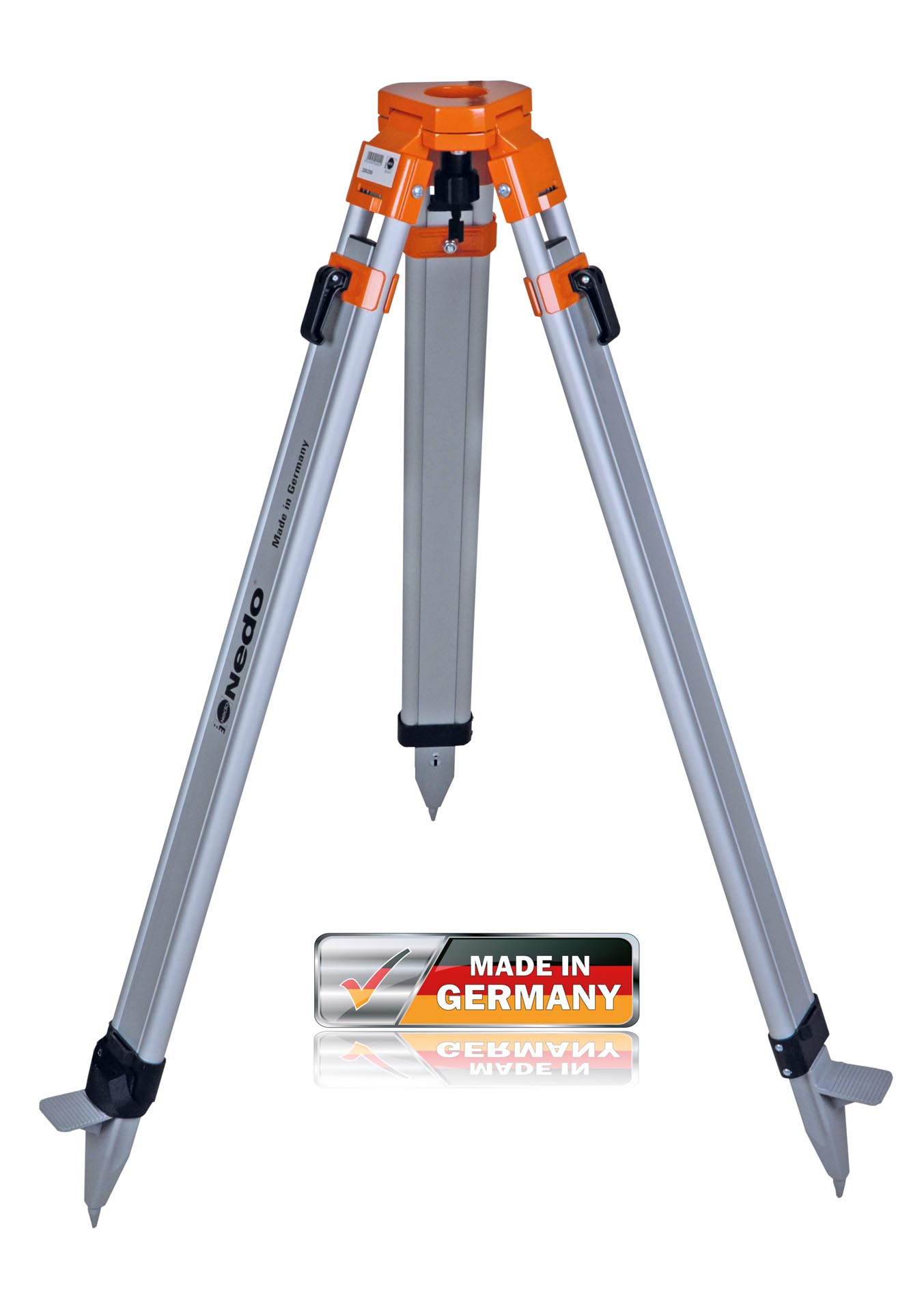

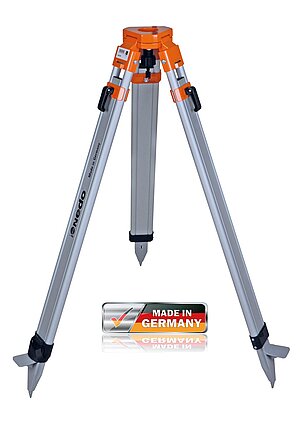

Heavy-Duty Aluminum Tripod with Quick Clamp
Ref.-No. 200200-185
Technical data:
- Min. effective height approx 40’’ / 1.02 m
- Max. effective height approx. 67’’ / 1.70 m
- Retracted length approx. 45’’ / 1.10 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 11.5 lbs. / 5.20 kg
- Tripod head flat, Ø 6.5’’ / 167 mm
Features:
- Strong aluminum extension legs, silver anodized
- Large round tripod head made of aluminum, powder-coated
- Snap Cap
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel point
- Carrying strap
- In accordance with ISO 12858-2-H
Suitable for:
- Builders’ levels
- Theodolites
- Total stations
- Rotating lasers

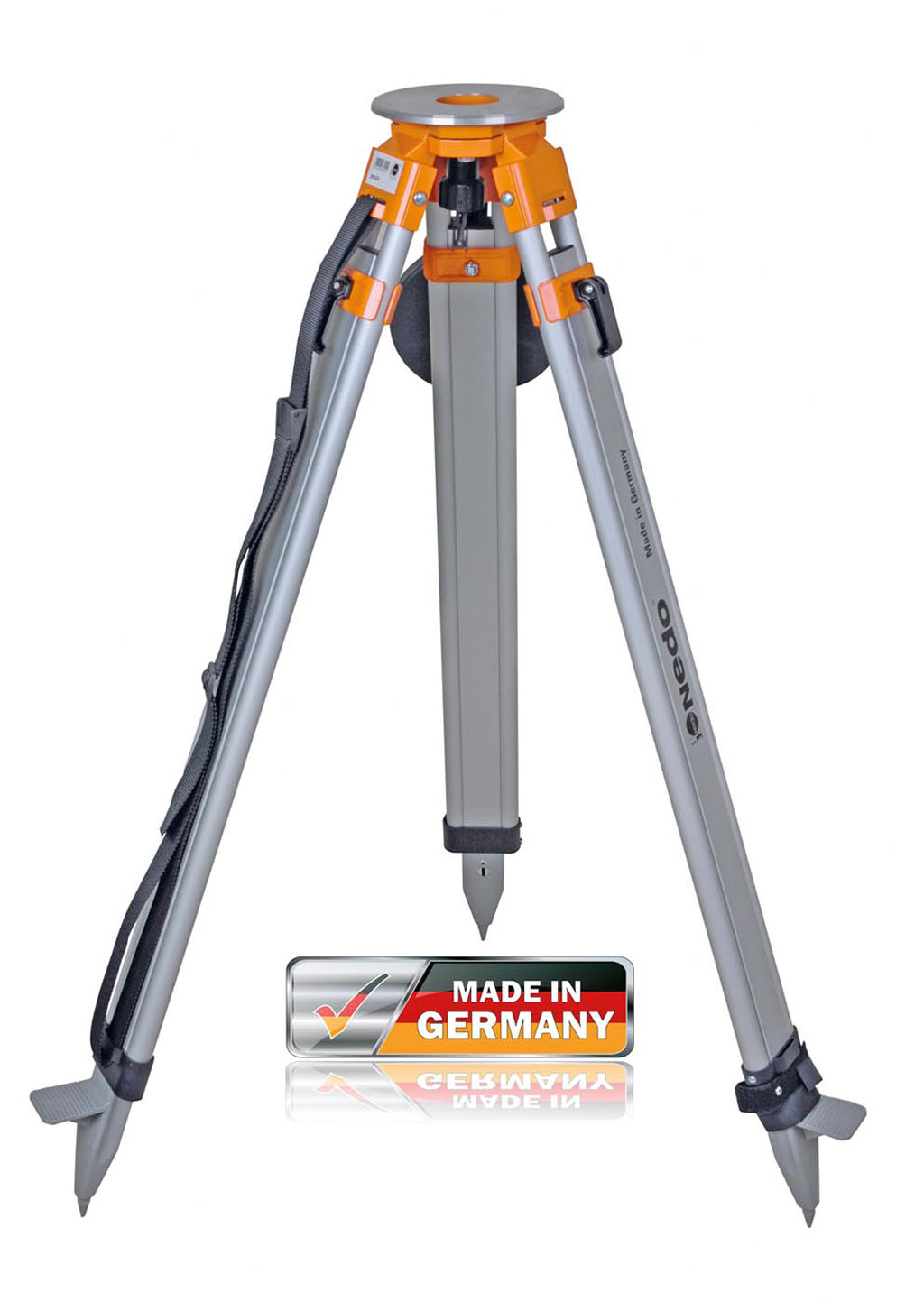

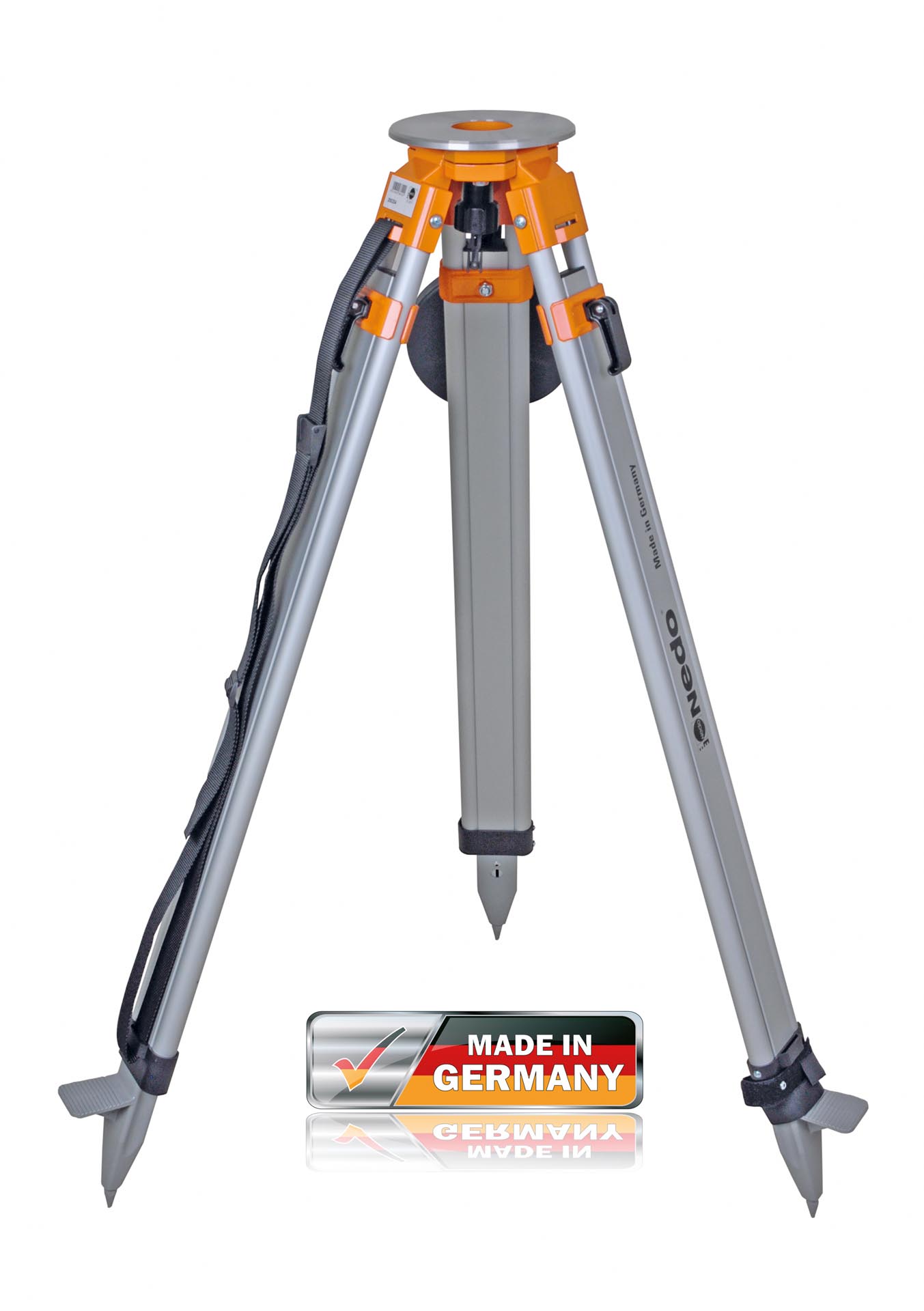

Surveyors’ Grade Aluminum Tripod with Quick Clamp
Ref.-No. 200204-185
