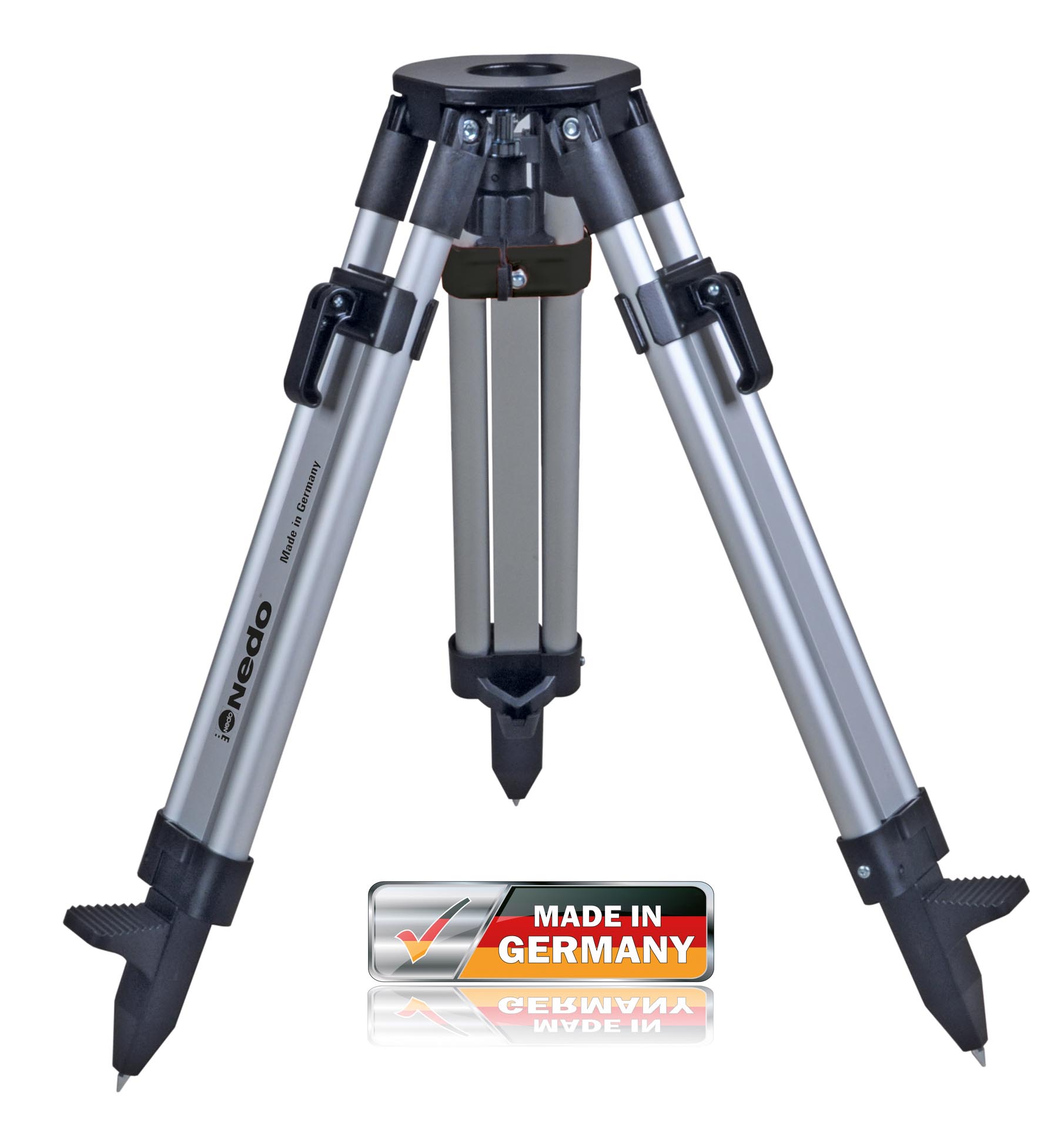

Medium and Heavy-Duty Aluminium Tripods
Technical specifications:
- Min. effective height approx. 21’’ / 0.53 m
- Max. effective height approx. 33’’ / 0.85 m
- Retracted length approx. 24’’ / 0.61 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 5.3 lbs. / 2.4 kg
- Tripod head flat, Ø 5.5’’ / 140 mm
Features:
- Strong aluminum extension legs, silver anodized
- Tripod head made of aluminum, powdercoated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of high-tech plastic material w/ steel points
- Strapless-Go: Retract-and-go transport locking system
Suitable for für:
- Dot and line lasers
- Rotating lasers

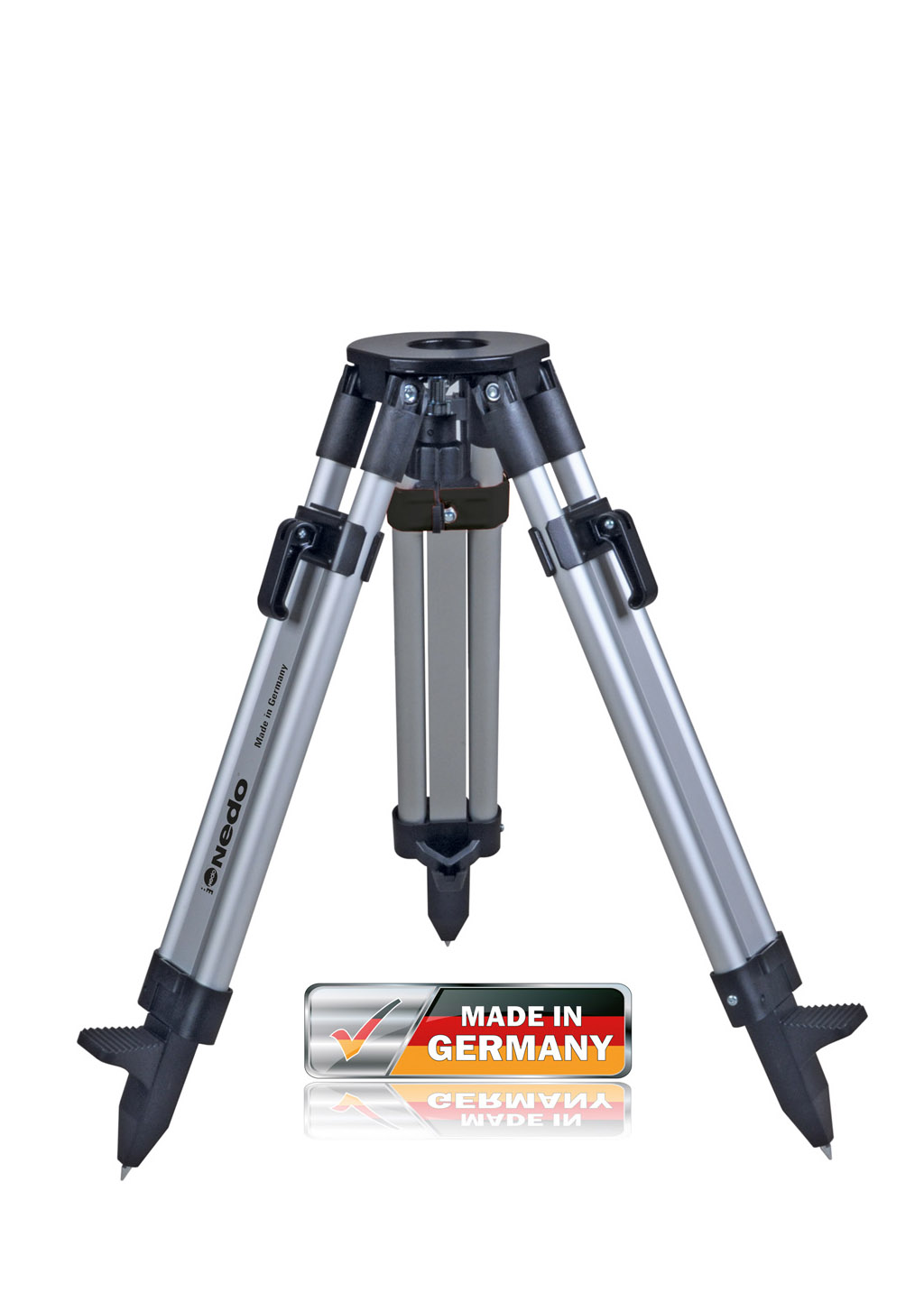

Short Medium-Duty Aluminum Tripod with Quick Clamp Ref.-No. 200631
Technical specifications:
- Min. effective height approx. 31’’ / 0.80 m
- Max. effective height approx. 47’’ / 1.20 m
- Retracted length approx. 32’’ / 0.80 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 8.8 lbs. / 4.00 kg
- Tripod head flat, Ø 5.5’’ / 140 mm
Features:
- Strong aluminum extension legs, silver anodized
- Tripod head made of aluminum, powdercoated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
Suitable for:
- Dot and line lasers
- Rotating lasers

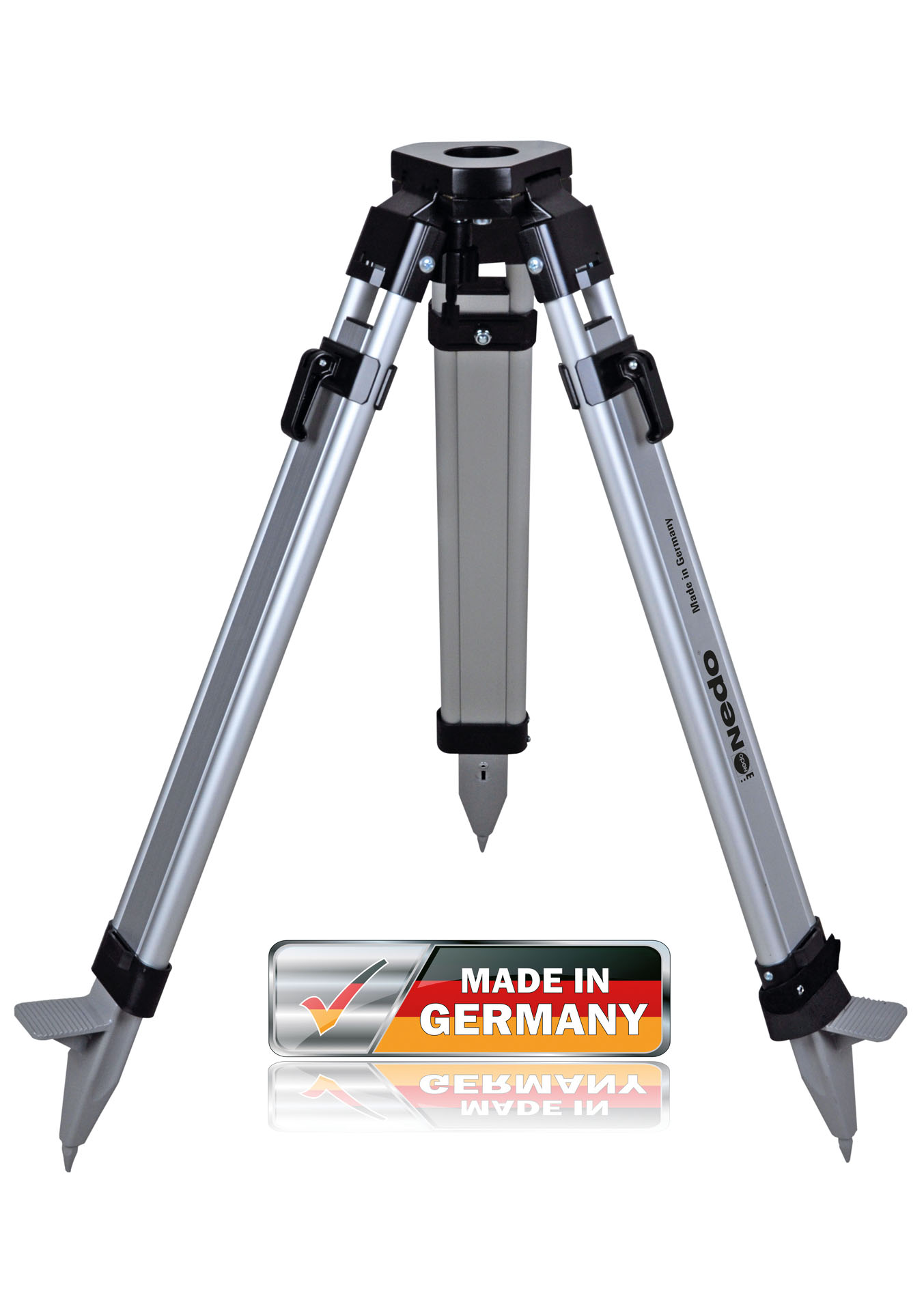

Short Heavy-Duty Aluminum Tripod with Quick Clamp Ref.-No. 200412
Technical specifications:
- Min. effective height approx. 36’’ / 0.91 m
- Max. effective height approx. 6.6’’ / 1.69 m
- Retracted length approx. 42’’ / 1.06 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 7.5 lbs. / 3.40 kg
- Tripod head flat, Ø 5.5’’ / 140 mm
Features:
- Strong aluminum extension legs, silver anodized
- Tripod head made of aluminum, powdercoated
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of high-tech plastic material w/ steel points
- Strapless-Go: Retract-and-go transport locking system
Suitable for:
- Builders' levels
- Rotating lasers

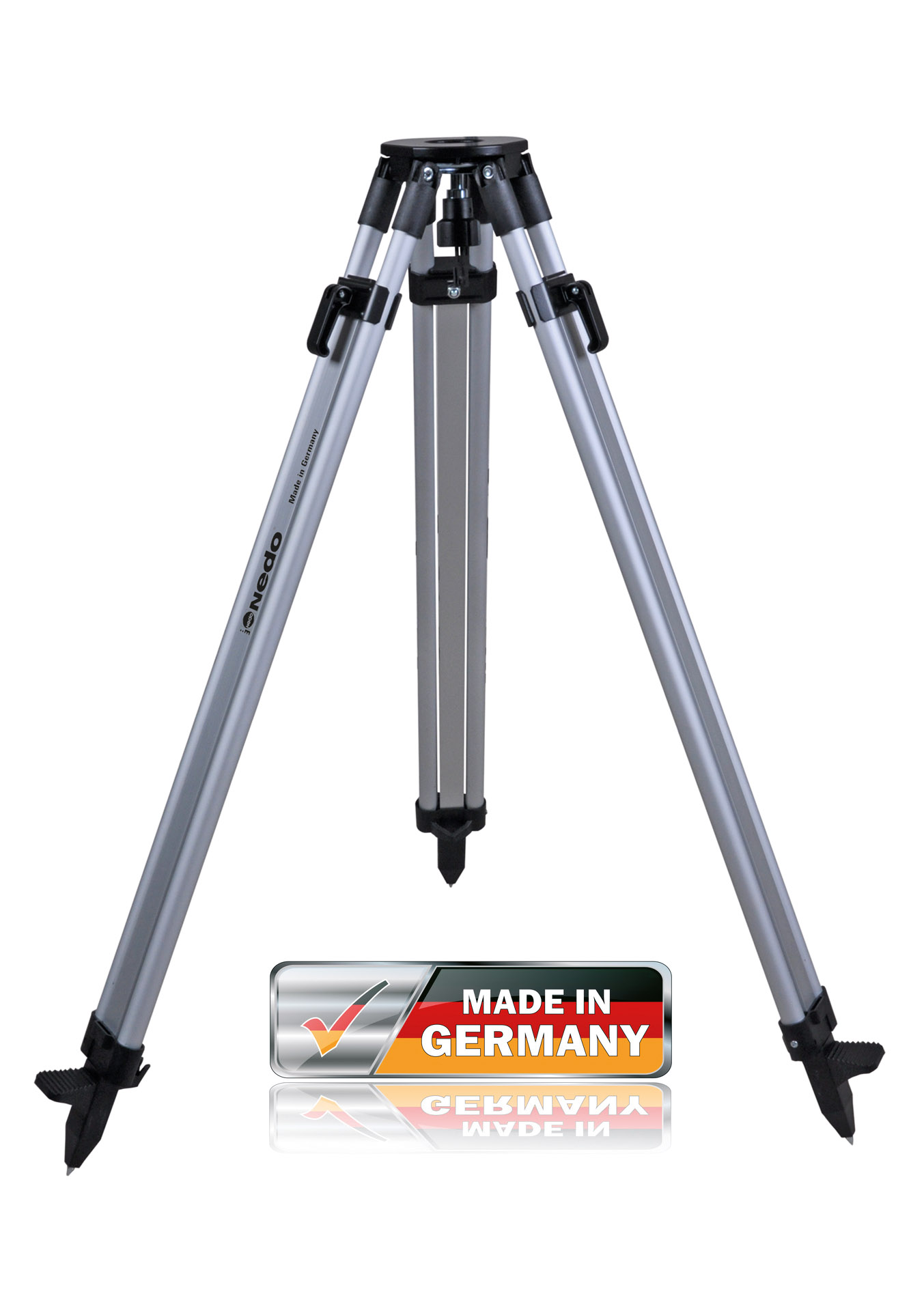

Medium-Duty Aluminum Tripod with Quick Clamp Ref.-No. 200221
