Medium and Heavy-Duty Elevating Tripod



Technical data:
  • Min. effective height approx. 31’’ / 0.80 m
  • Max. effective height approx. 80’’ / 2.00 m
  • Retracted length approx. 40’’ / 1.00 m
  • Holding screw: 5/8’’ x 11 thread
  • Weight approx. 11 lbs. / 5.10 kg
  • Tripod plate, Ø 4.3’’ / 110 mm
  • Telescopic section 1-fold
  • Adjustable column range 22’’ / 555 mm
Features:
  • Indirect gear unit for easy handling
  • Inch and mm scale on elevating column
  • Circular bubble
  • Strong aluminum extension legs, silver anodized
  • Tripod head and plate made of aluminum, powder-coated
  • Break-proof quick release levers, made of aluminum
  • Brass hinge pins for extra stability
  • Tripod shoes made of high-tech plastic material w/ steel points
  • Slip guard
  • Strapless-Go: Retract-and-go transport locking system
Suitable for:
  • Rotating lasers

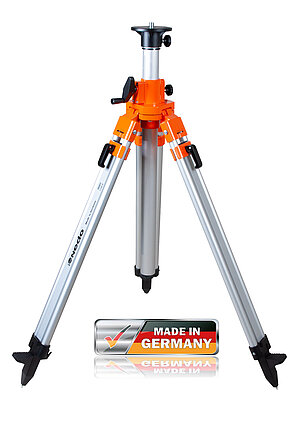

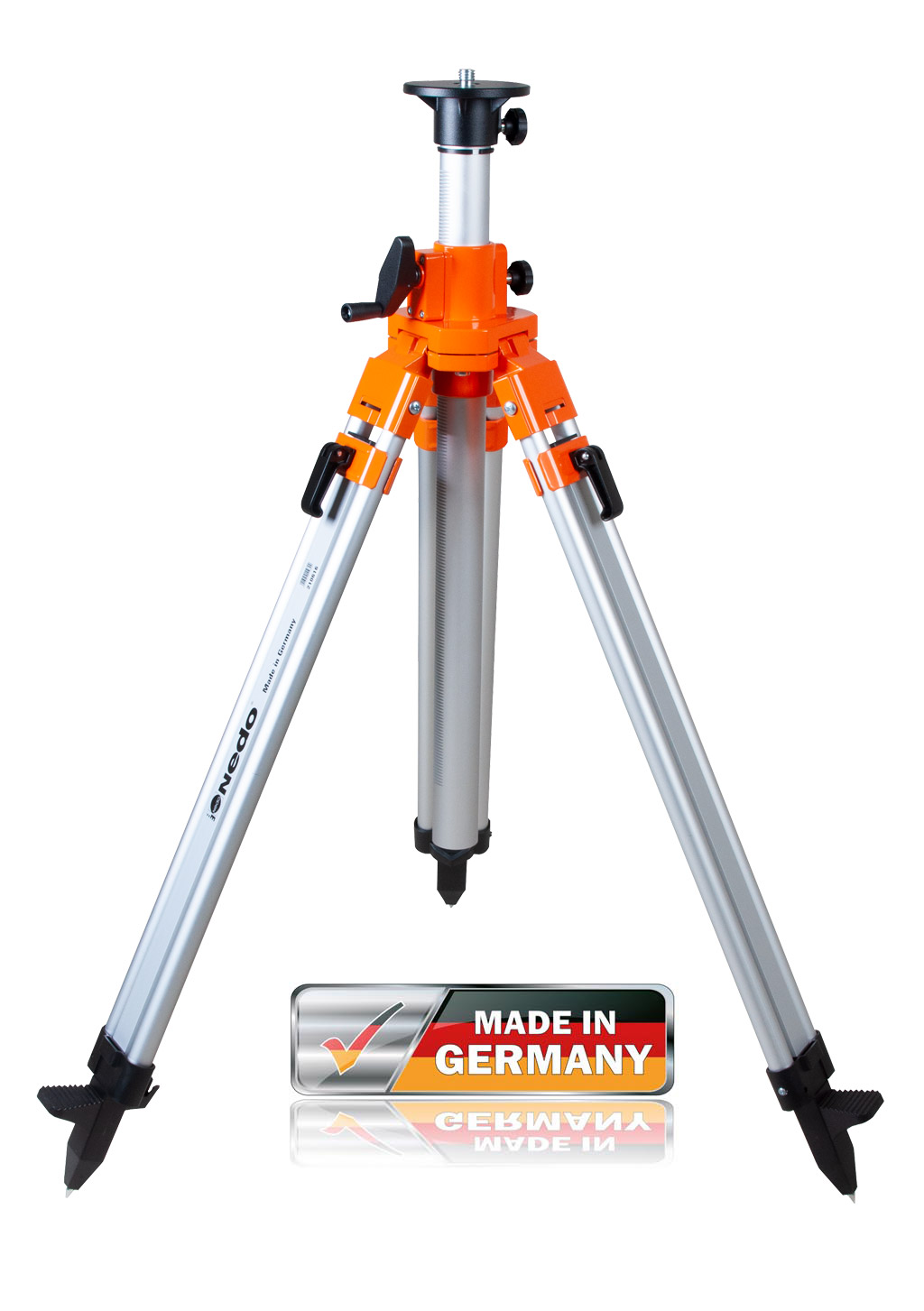

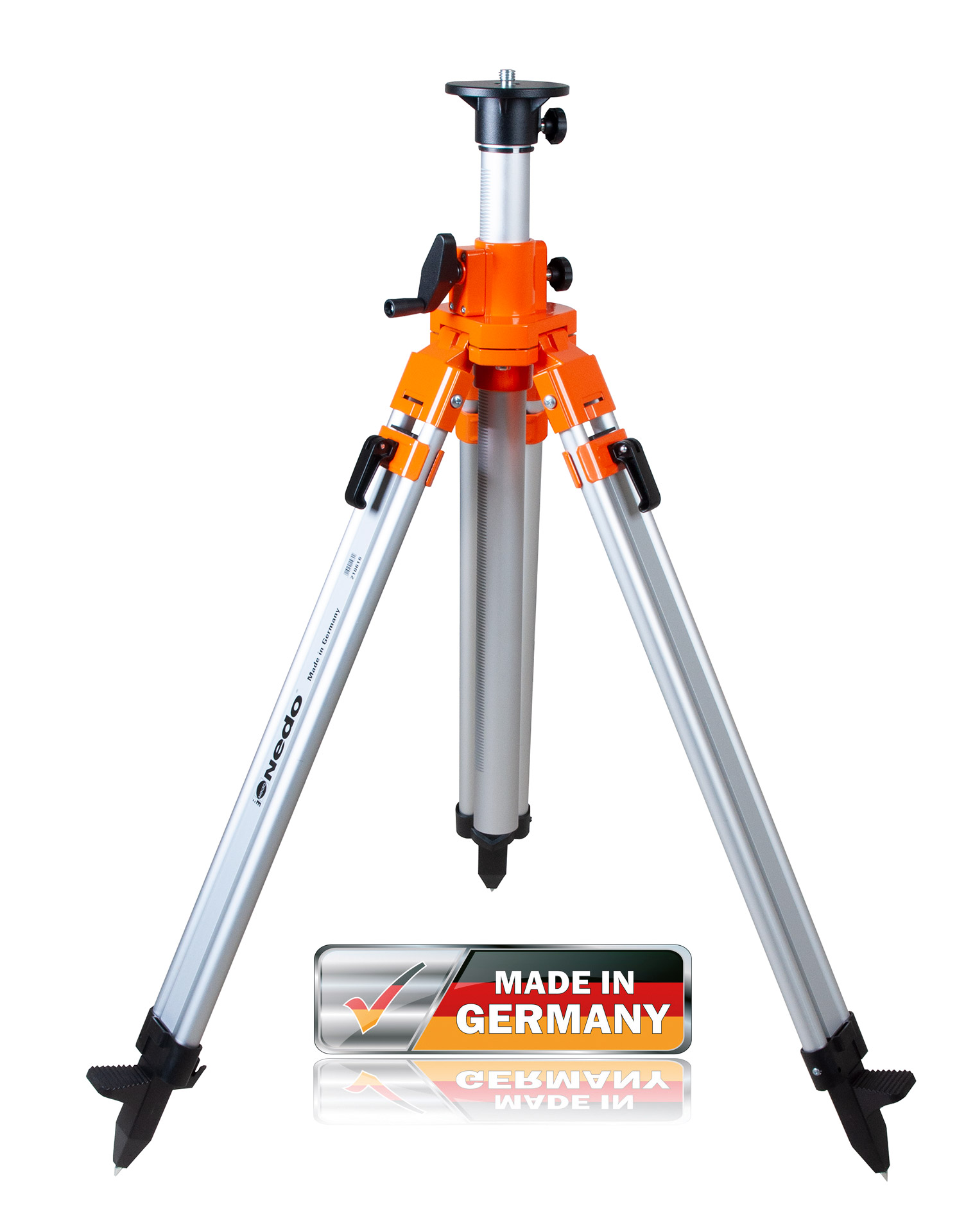

Medium-Duty Elevating Tripod Ref.-No. 210616-185

Technical data:
  • Min. effective height approx. 35’’ / 0.90 m
  • Max. effective height approx. 93’’ / 2.40 m
  • Retracted length approx. 47’’ / 1.20 m
  • Holding screw: 5/8’’ x 11 thread
  • Weight approx. 12.5 lbs. / 5.70 kg
  • Tripod plate, Ø 4.3’’ / 110 mm
  • Telescopic section 1-fold
  • Adjustable column range 21’’ / 545 mm
Features:
  • Indirect gear unit
  • Inch and mm scale on elevating column
  • Circular bubble
  • Strong aluminum extension legs, silver anodized
  • Tripod head and plate made of aluminum, powder-coated
  • Break-proof quick release levers, made of aluminum
  • Brass hinge pins for extra stability
  • Tripod shoes made of aluminum
  • Slip guard
  • Strapless-Go: Retract-and-go transport locking system
Suitable for:
  • Rotating lasers

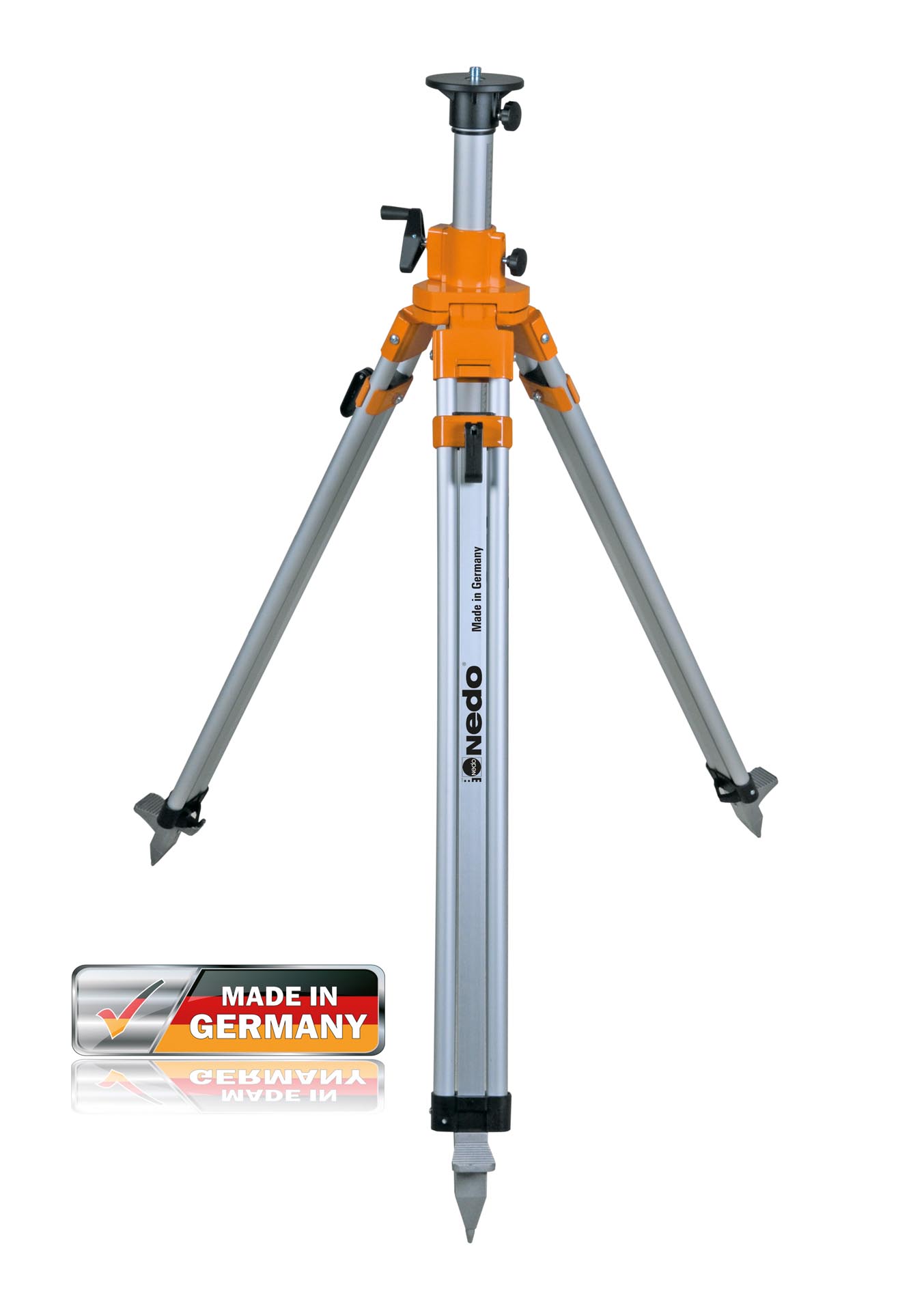

Medium-Duty Elevating Tripod Ref.-No. 210676-185

Technical data:
  • Min. effective height approx. 40’’ / 1.01 m
  • Max. effective height approx. 116’’ / 2.94 m
  • Retracted length approx. 52’’ / 1.32 m
  • Holding screw: 5/8’’ x 11 thread
  • Weight approx. 16 lbs. / 7.44 kg
  • Tripod plate, Ø 4.3’’ / 110 mm
  • Telescopic section 2-fold
  • Adjustable column range 20’’/19’’ / 520 / 490 mm
Features:
  • Indirect gear unit
  • Double telescope for a wide working range
  • Inch and mm scale on elevating column
  • Circular bubble
  • Strong aluminum extension legs, silver anodized
  • Tripod head and plate made of aluminum, powder-coated
  • Break-proof quick release levers, made of aluminum
  • Brass hinge pins for extra stability
  • Accessory: Combi tripod shoes for all-terrain use
  • Slip guard
Suitable for:
  • Rotating lasers

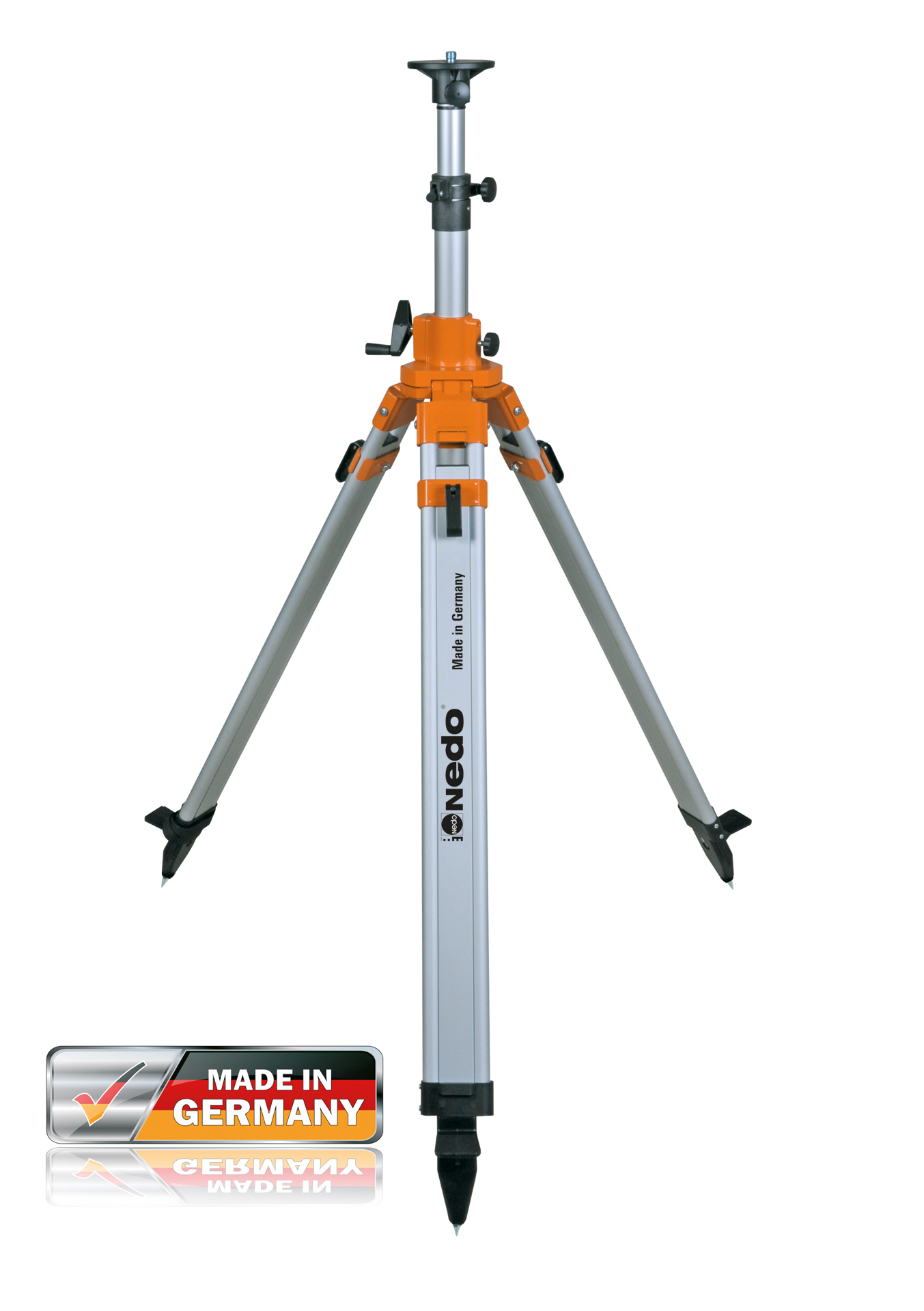

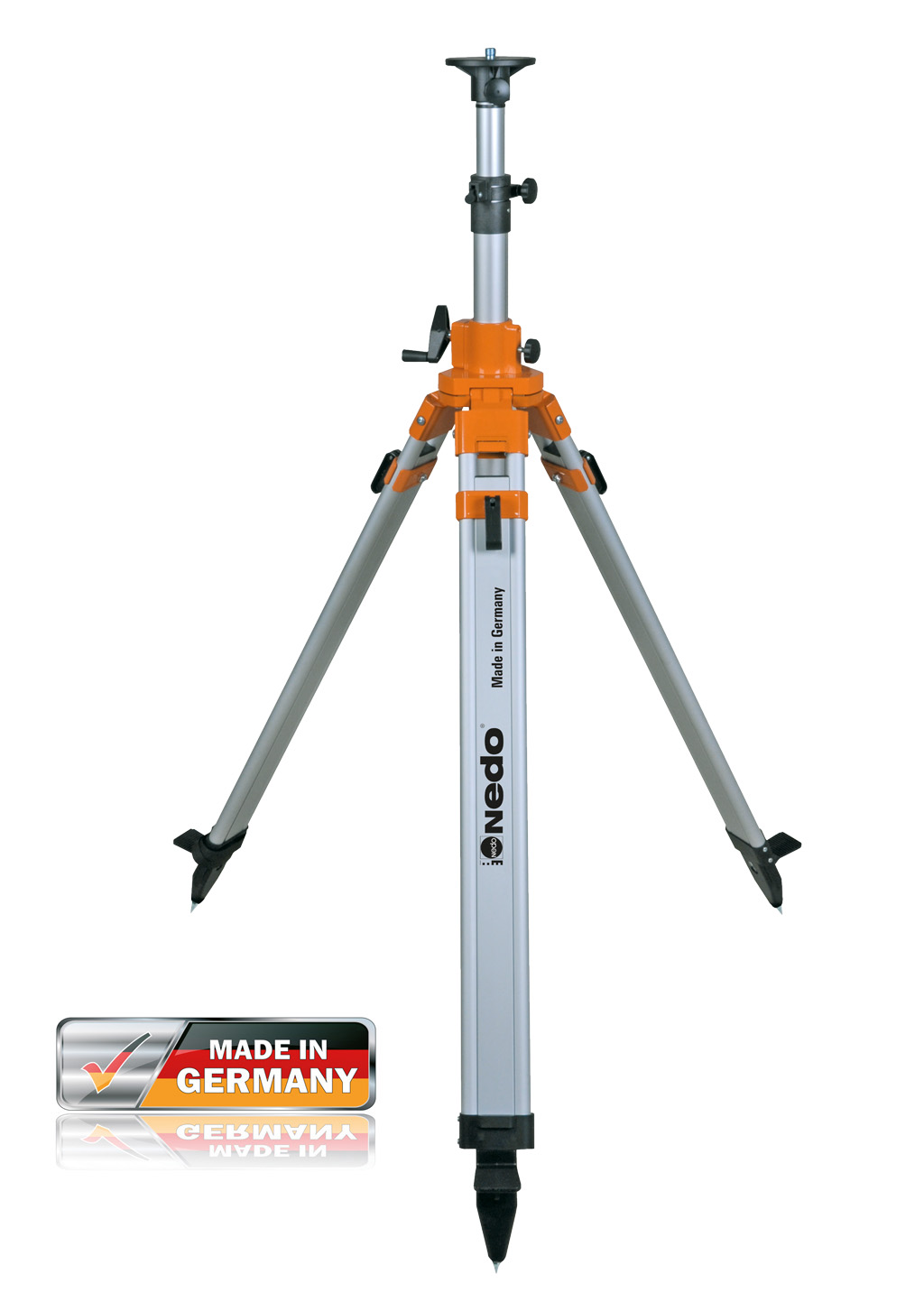

Heavy-Duty Elevating Tripod Ref.-No. 210678-185
