Surveyors’ Grade Wooden Tripods
Technical data:
- Min. effective height approx. 40’’ / 1.02 m
- Max. effective height approx. 67’’ / 1.69 m
- Retracted length approx. 44’’ / 1.10 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 17 lbs. / 7.60 kg
- Tripod head flat, Ø 6.5’’ / 67 mm
Features:
- Wooden parts made of finest European hard wood
- Plastic-coated wooden legs for utmost durability
- Large round tripod head made of aluminum, powder-coated
- Snap Cap
- Break-proof quick release levers, made of aluminum
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
- Carrying strap
- In accordance with ISO 12858-2-H
- Strapless-Go: Retract-and-go transport locking system
Suitable for:
- Total stations
- Robotic total stations
- Digital levels
- Theodolites
- Heavy-duty rotating lasers

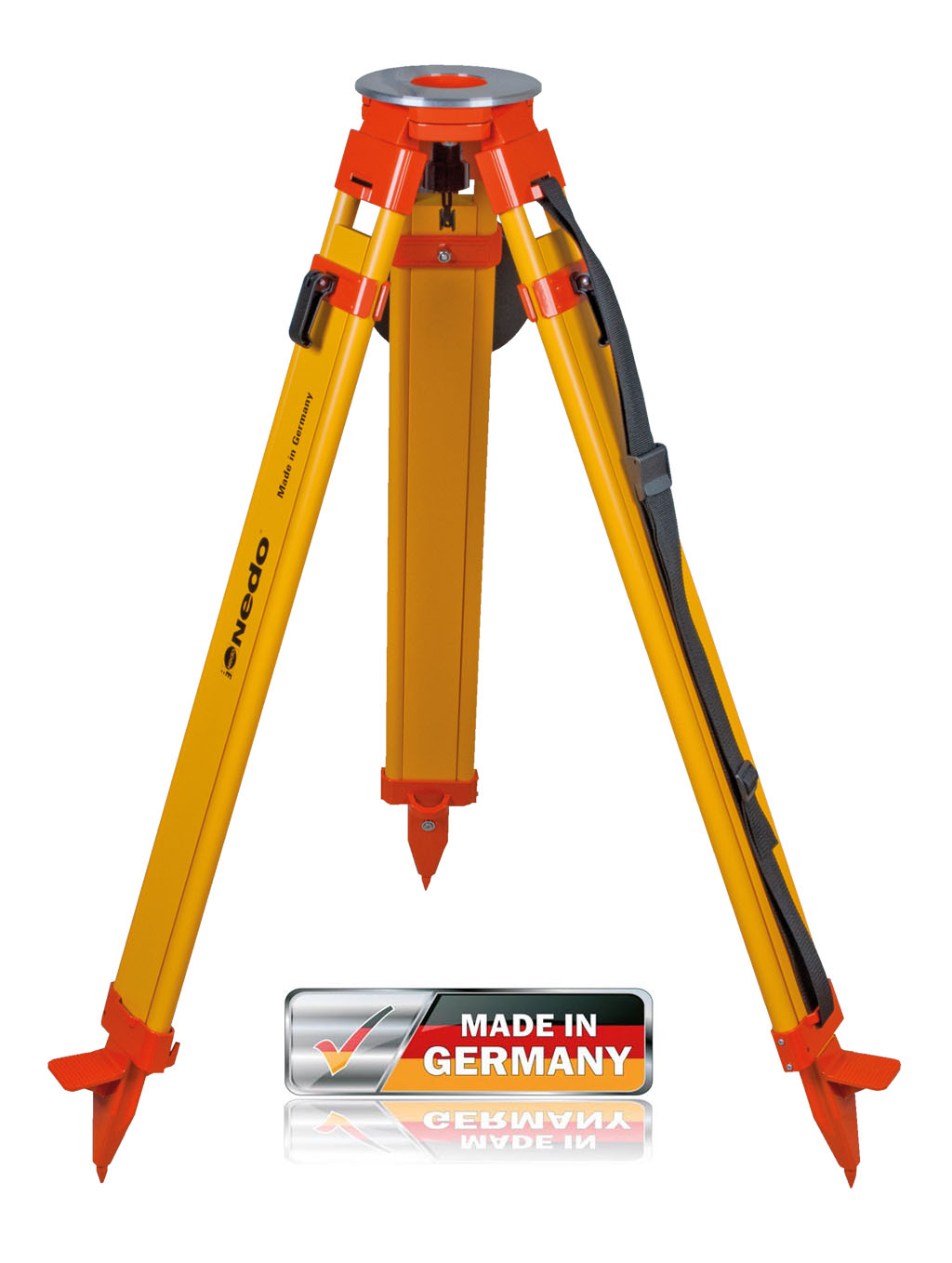

Surveyors’ Grade Wooden Tripod with Quick Clamp
Ref.-No. 200513-185
Technical data:
- Min. effective height approx. 40’’ / 1.05 m
- Max. effective height approx. 67’’ / 1.70 m
- Retracted length approx. 44’’ / 1.12 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 17 lbs. / 7.10 kg
- Tripod head flat, Ø 6.5’’ / 167 mm
Features:
- Wooden parts made of finest European hard wood
- Plastic-coated wooden legs for utmost durability
- Large round tripod head made of aluminum, powder-coated
- Durable screw clamp
- Snap Cap
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
- Carrying strap
- In accordance with ISO 12858-2-H
- Strapless-Go: Retract-and-go transport locking system
Suitable for:
- Total stations
- Robotic total stations
- Digital levels
- Theodolites
- Heavy-duty rotating lasers

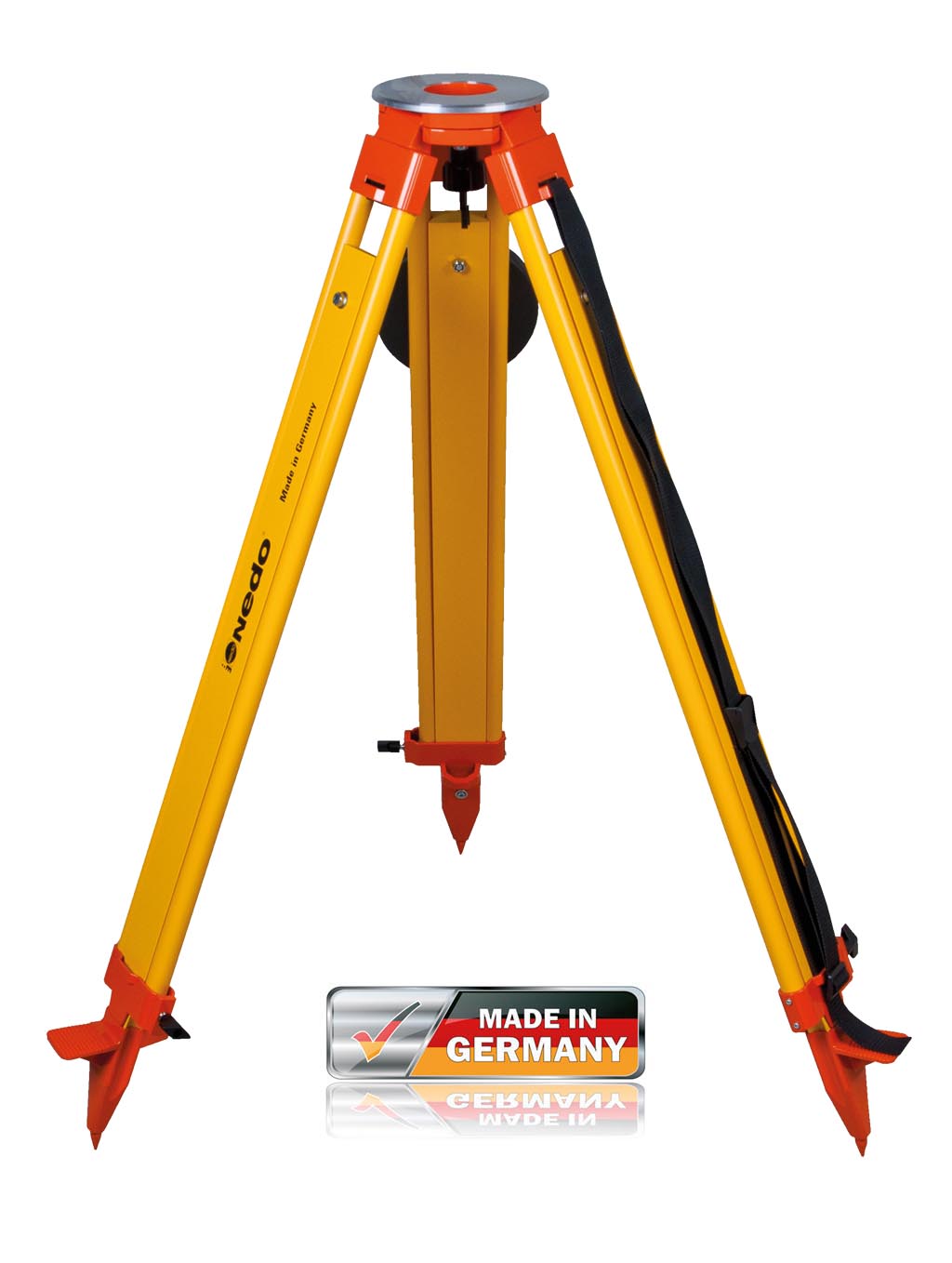

Surveyors’ Grade Wooden Tripod with Screw Clamp
Ref.-No. 200533-185
Technical data:
- Min. effective height approx. 40’’ / 1.00 m
- Max. effective height approx. 67’’ / 1.70 m
- Retracted length approx. 44’’ / 1.10 m
- Holding screw: 5/8’’ x 11 thread
- Weight approx. 17 lbs. / 7.70 kg
- Tripod head flat, Ø 6.5’’ / 167 mm
Features:
- Wooden parts made of finest European hard wood
- Plastic-coated wooden legs for utmost durability
- Large round tripod head made of aluminum, powder-coated
- Dual clamp: quick release and screw clamp
- Break-proof quick release levers, made of aluminum
- Snap Cap
- Brass hinge pins for extra stability
- Tripod shoes made of aluminum w/ replaceable steel points
- Carrying strap
- In accordance with ISO 12858-2-H
- Strapless-Go: Retract-and-go transport locking system
Suitable for:
- Total stations
- Robotic total stations
- Digital levels
- Theodolites
- Heavy-duty rotating lasers

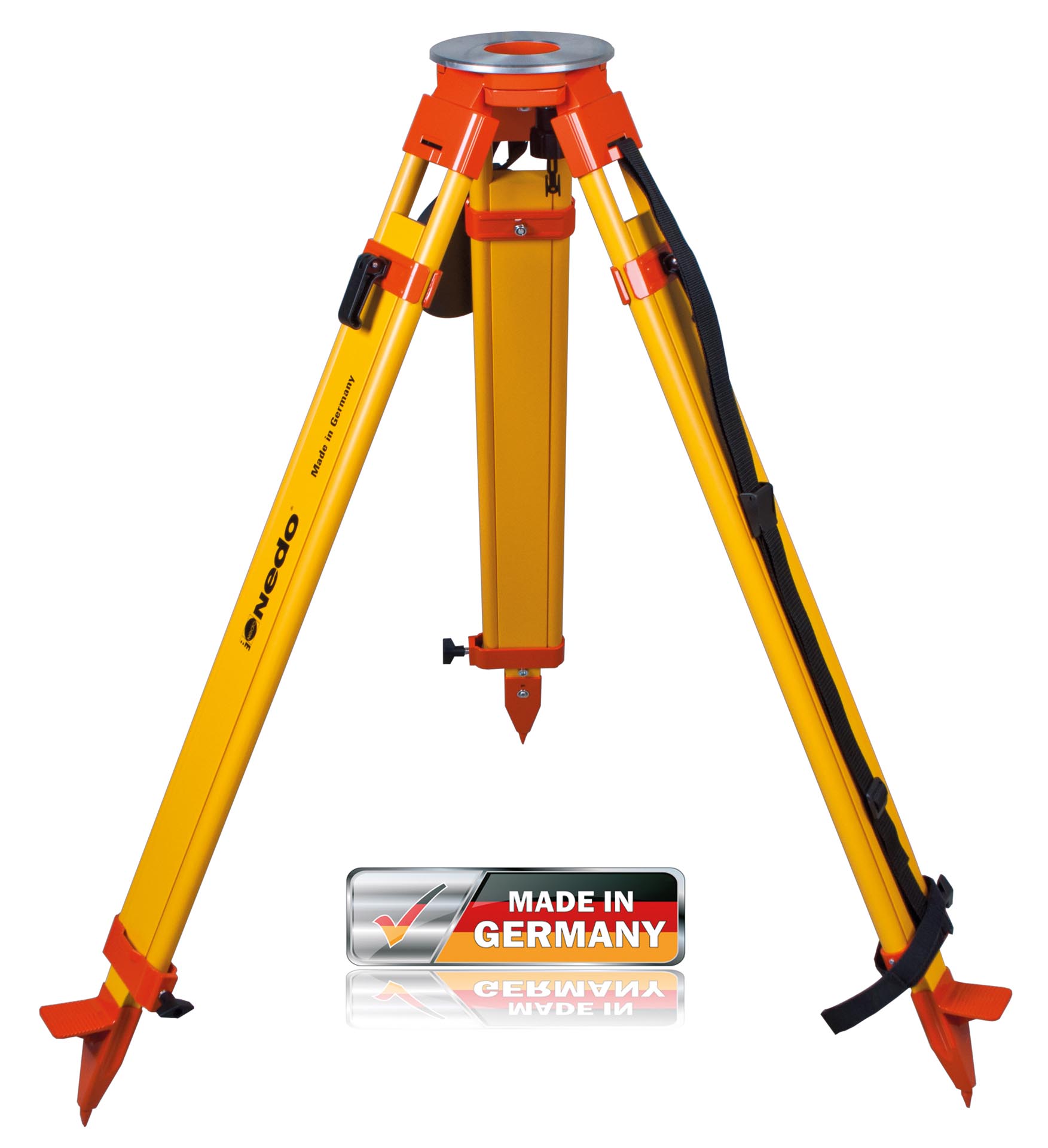

Surveyors’ Grade Wooden Tripod with Dual Clamp
Ref.-No. 200 534-185
